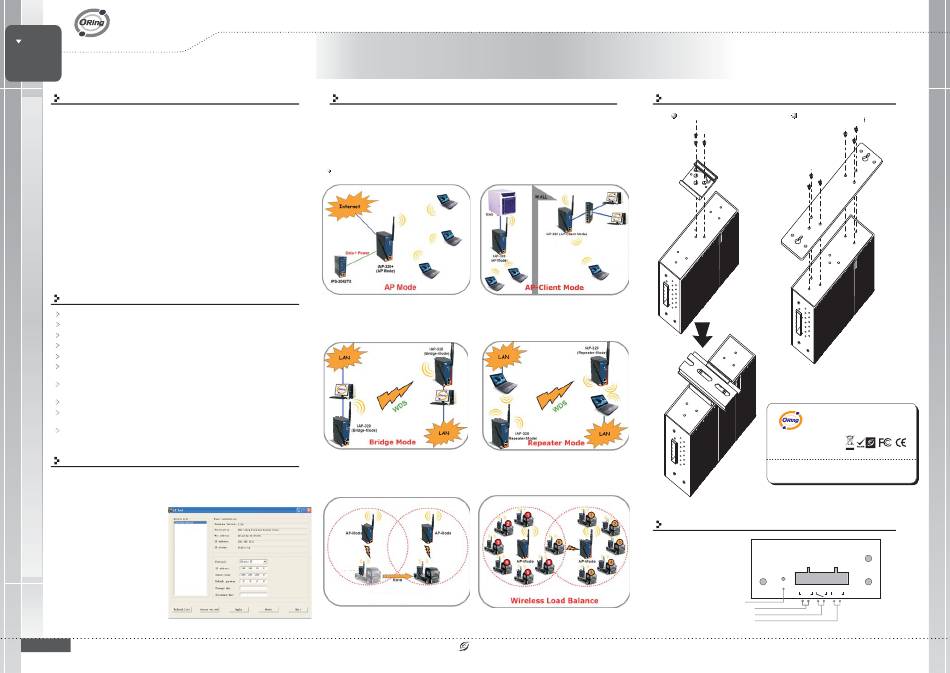

ORiNG IAP-120 Quick Installation Manual

ORing Industrial Networking Corp.
Wireless
ACCESS POINT
Q I
ACCESS POINT Router uick nstallation
Introduction
I AP/IAR series are reliable IEEE 802.11b/g or IEEE 802.11a/b/g WLAN
with 2 ports LAN Access Point or Access Point Router. It can be
configured to operate in AP/Bridge/Repeater/AP Client mode. You are
able to configure IAP series by Window utility or WEB interface via LAN
port or WLAN interface. IAP series provides dual Ethernet ports in
switch mode, so that you can use Daisy Chain to reduce the usage of
Ethernet switch ports. IAR series provides dual Ethernet port for WAN
port and LAN port. It also provides a USB interface for 3.5G HSDPA
modem dial up. In addition, all PoE models also provide P.D. feature on
ETH2 which is fully compliant with IEEE802.3af PoE specification.
Therefore, IAP/IAR series is one of the best communication solution for
wireless application.
PoE model Support P.D.
PoE model supports P.D. on ETH2 and converts the power from DC
48V for the device. This feature is fully compliant with IEEE802.3af
specification and provides 1KV isolating protection. This P.D. feature
enables PoE Models to speed up the installation of equipment and
extend the range of layout to a maximum of 100 meters without extra
power source.
Features
High Speed Air Connectivity: WLAN interface support up to 54Mbps
Highly Security Capability: WEP/WPA/WPA2/Radius/TKIP supported
Support AP/Bridge/Repeater/AP-Client Mode (for IAP Series)
Ultra fast X-Roaming Technology inside (for IAP Series)
Load balance feature supported (for IAP Series)
Switch Mode Supported: IAP Series supports Daisy Chain to reduce
usage of switch ports
IAR Series supports USB Interface for 3.5G HSDPA USB Modem dial
up
Dual redundant Power Inputs: 12~48VDC on terminal block
Fully Compliant with IEEE802.3af (Power Device at ETH2, PoE
Models)
Event Warning by Syslog, Email, SNMP Trap, Relay output and
Beeper
Windows Utility: AP-Tool
IAP series contains friendly windows utility, AP-Tool, to explore AP on
local area network. This utility is very helpful for you to search and
configure IP of access point on the industrial network.
Step 1. Start up the Windows utility
"AP-Tools.exe"
Step 2. Click "Refresh list" button,
the AP device will show on
the list.
Step 3. Configure the IP address
manually.
Q I G
IAP/IAR Series
IAP/IAR Series
G
uide
Applications
In practical operation of wireless access point, the wireless access point support
various kinds of operation modes include AP Bridge/Repeater/AP-Client mode.
IAP/IAR series also support PoE P.D. feature to extend the layout up to
100 meters without extra power source.
easily.
Various kinds of operation modes
Client Mode
X-Roaming
1907-2-29-AP-3
You can build up the wireless network
PRINTED ON RECYCLED PAPER
Industrial Wireless LAN Access
Point and Router
Installation
DIN-Rail Install Step Wall-mounted Install Step
ORing Industrial Networking Corp.
Copyright© 2010 ORing
All rights reserved.
TEL: +886-2-2918-3036 TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
FAX: +886-2-2918-3084
Power Connection Guide
Reset
V2+ V2- Relay V1+ V1-
PWR-2 PWR-1
Reset Button
Terminal Block Power-2 Input
Relay Output Pin
Terminal Block Power-1 Input
Quick Installation Guide
Version 1.4
