ORiNG IAP-W510 Plus Quick Installation Manual

ORing Industrial Networking Corp.
PoE
IP -67
Wireless
Q I
uick nstallation
ACCESS POINT
Introduction

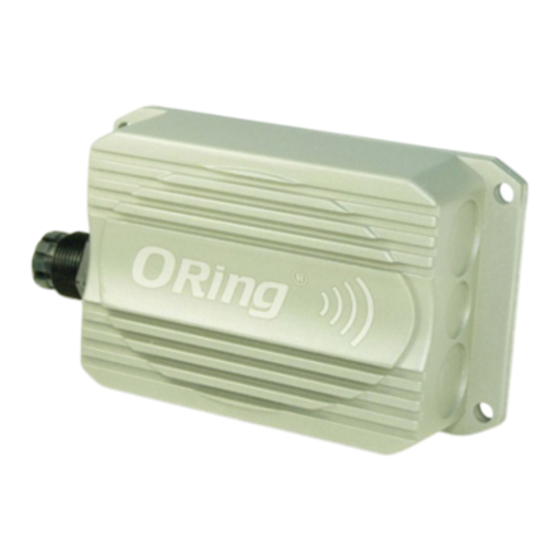

IAP-W510+ / W512+ i s a reliable IP-67 outdoor IEEE 802.11 a/n
WLAN Access Point with 1 PoE P.D. Ethernet port. It can be
configured to operate in AP/Bridge/Repeater/AP-Client/Client mode.
It is specifically designed for the toughest industrial environments. In
combination with its IP-67 design and the superb management
functionality, IAP-W510+ / W512+ provides a waterproof, dust-tight
connection. In addition, IAP-W510+ provides high power output of
500mw and high throughput up to 80Mbps to satisfy far distance
connection. IAP-W512+ provides two N-type connectors, which can
install any N-type antennas to extend communication distance. You
are able to configure IAP-W510+ / W512+
port or WLAN interface. In addition, IAP-W510+/W512+
provides P.D. feature which is fully compliant with IEEE802.3af PoE P.D.
specification to save the layout cost of power line
W512+ can be easily adopted in almost all kinds of applications and
provides the most rugged solutions for managing your network in
outdoor. Therefore, IAP-W510+ / W512+
communication solutions for wireless applications
Features
High Speed Air Connectivity: WLAN interface support up to
300Mbps link speed
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
High throughput > 80Mbps
High output power 500mw
Far Distance Air Connectivity up to 7KM (IAP-W510+)
Support X-Roaming < 100ms
Support AP/Bridge/Repeater/AP-Client/Client Mode
Wireless connecting status monitoring
HTTPs protocol supported for secured management
IP table to prevent unauthorized IP address from accessing
Event Warning by Syslog, Email, SNMP Trap
Rigid IP-67 housing design
Pole-mount enabled
ORing Industrial Networking Corp.
Copyright© 2012 ORing
All rights reserved.
TEL: +886-2-2218-1066 Website: www.oring-networking.com
FAX: +886-2-2218-1014 E-mail: support@oring-networking.com
Q I G
IAP-W510+/W512+
IAP-W510+/W512+
G
uide

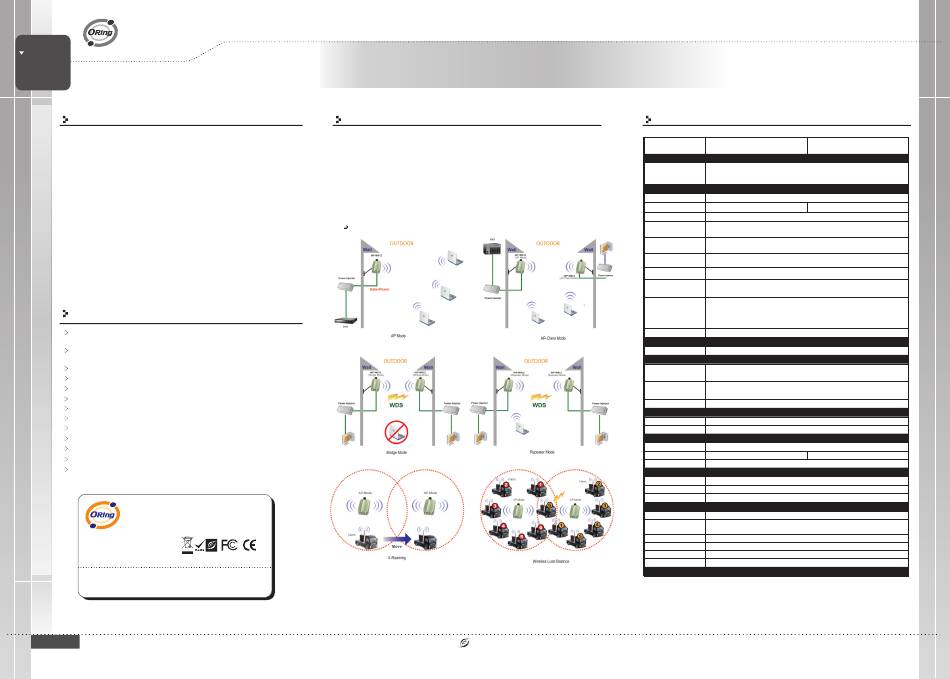

Applications
In practical operation of wireless access point, Windows utility (Open-Vision) is
supported. This utility is very helpful for you to search IP and configure settings of
access point on the industrial wireless network. In addition, the wireless access point
support various kinds of operation modes include AP Bridge/ Repeater/ AP-Client/
Client mode. IAP-W510+ also can connect with each other up to 7,000 meters with
built-in panel antenna.
by WEB interface via LAN Various kinds of operation modes
also
. The IAP-W510+ /
is one of the best outdoor
1907-2-29-IAPW51X+-0
Industrial IP-67 PoE Outdoor Access
Point
Specifications
ORing WLAN Access Point
Physical Ports
10/100 Base-T(X) Ports in
RJ45 Auto MDI/MDIX with
IEEE802.3af PoE P.D.
WLAN Interface
Operating Mode
Antenna Connector
Radio Frequency Type
Technology
Modulation
Frequency Band
Transmission Rate
Transmit Power
Receiver Senstivity
Encryption Security
Wireless Security
Protocol Support
Protocol
LED Indicators
Power indicator
10/100Base-T(X) RJ45 port
indicator
WLAN
Power
Input power
Power consumption(Typ.)
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory Approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
PRINTED ON RECYCLED PAPER
Version 1.0
IAP-W510+ IAP-W512+
Model
1
AP/Bridge/Repeater/AP-Client/Client
Build-in 15dBi panel antenna 2 x External N-type antenna connector
OFDM
IEEE802.11a:OFDM with BPSK, QPSK, QAM, 64QAM
IEEE802.11n : BPSK, QPSK, 16-QAM, 64-QAM
America / FCC: 5.15 to 5.825 GHz (13 channels)
Europe / ETSI: 5.15 to 5.724 GHz (19 channels)
IEEE802.11a: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
IEEE802.11n: 300Mbps
IEEE802.11a/n: 500mW Max
-82dBm @ 54Mbps, PER< 10%;
-78dBm @ MCS 15(11n, 20MHz), PER<10%;
-75dBm @ MCS 15(11n, 40MHz), PER<10%;
WEP: (64-bit, 128-bit key supported)
WAP/WAP2: 802.11 (WEP and AES encryption)
WAP-PSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption
SSID broadcast disable
ARP,BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
PWR / Ready: 1 x LED
Green On: Power is on and functioning Normally.
1 x LED,
Green On: Port Link
Green Blinking: Transmitting data
1 x LED, Green for WLAN Link/Act
48 VDC IEEE802.3af Power over Ethernet
9 Watts
IP-67
162(W) x 102(D) x 58(H) mm (6.38 x 4.02 x2.28inch.) 162(W) x 102(D) x 48(H) mm (6.38 x 4.02 x 1.89 inch.)
680 g
-30 to 85 C (-22 to 185 F) o o
o o
-20 to 70 C (-4 to 158 F)
100% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-1
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
3 years
Quick Installation Guide
