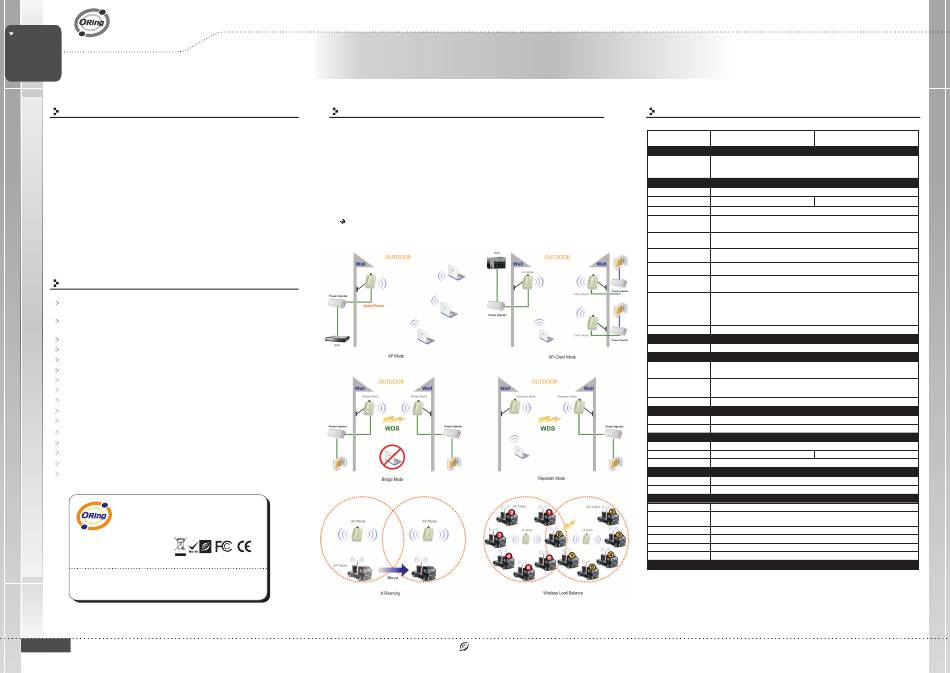

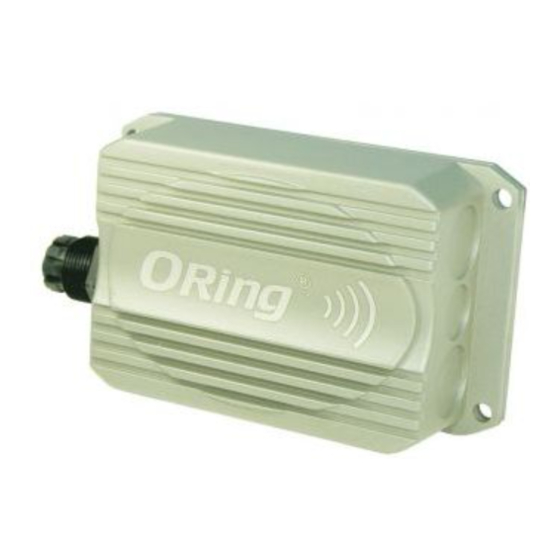

IAP-W510/W512 are reliable IP-67 outdoor IEEE 802.11 a/n WLAN
Access Point with 1 waterproofed Ethernet port. It can be configured
to operate in AP/Bridge/Repeater/AP-Client/Client/Turbo Client mode.
In combination with its IP-67 design and the superb management
functionality, IAP-W510/512 is specifically designed for the toughest
industrial environments and provides a waterproof, dust-tight
connection and two N-type connectors (IAP-W512 only), that can
install any N-type antennas to extend communication distance. In
addition, IAP-W510/W512 provide high power output of 500mw and high
throughput up to 80Mbps to satisfy far distance connection. You are able
to configure IAP-W510/W512 by WEB interface via LAN port or WLAN
interface. IAP-W510/W512 can be easily adopted in almost all kinds
of applications and provides the most rugged solutions for managing
your network in outdoor. Therefore, IAP-W510/W512 are the best
outdoor communication solutions for wireless applications

Features

High Speed Air Connectivity: WLAN interface support up to
300Mbps link speed
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
High throughput > 80Mbps
High power output 500mw
Far Distance Air Connectivity up to 10KM
Support X-Roaming < 100ms
Support wireless load balance
Support external N-type antenna install (IAP-W512 Only)
Support AP/Bridge/Repeater/AP-Client/Client/Turbo Client Mode
Wireless connecting status monitoring
HTTPs protocol supported for secured management
IP table to prevent access from unauthorized IP address
Event Warning by Syslog, Email, SNMP Trap
Wide-range Power Inputs :12~68VDC
Rigid IP-67 housing design
Pole and Wall-mount enabled
ORing Industrial Networking Corp.
Copyright© 2010 ORing
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Q I G
IAP-W510/W512
IAP-W510/W512
G
uide

Applications

In practical operation of wireless access point, Windows utility (AP-Tool) is supported.
This utility is very helpful for you to search and configure IP of access point on the
industrial wireless network. In addition, the wireless access point support various kinds
of operation modes include AP/Bridge/Repeater/AP-Client/Client/Turbo Client mode.
IAP-W510/W512 also can connect to each other up to 10,000 meters. You can build
up the wireless network easily.
Various kinds of operation modes
IAP-W510/512
IAP-W510/512 IAP-W510/512
Industrial IP-67 Outdoor Access Point
ORing WLAN Access Point
Physical Ports
10/100 Base-T(X) Ports in
RJ45 Auto MDI/MDIX
WLAN interface
Operating Mode
Antenna Connector
Radio Frequency Type
Technology
Modulation
Frequency Band
Transmission Rate
Transmit Power
IAP-W510/512
Receiver Senstivity
IAP-W510/512
Encryption Security
Wireless Security
IAP-W510/512
Protocol Support
Protocol
LED indicators
Power indicator
10/100Base-T(X) Rj45 port
indicator
IAP-W510/512 IAP-W510/512
WLAN
Power
Input power
Power consumption(Typ.)
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Regulatory approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
PRINTED ON RECYCLED PAPER
Version 1.0

Specifications

IAP-W510
Model
1,
AP/Bridge/Repeater/AP-Client/Client/Turbo Client
Build-in 15dBi panel antenna 2 x External N-type antenna connector
OFDM
IEEE802.11a:OFDM with BPSK, QPSK, QAM, 64QAM
IEEE802.11n : BPSK, QPSK, 16-QAM, 64-QAM
America / FCC: 5.15 to 5.825 GHz (13 channels)
Europe / ETSI: 5.15 to 5.724 GHz (19 channels)
IEEE802.11a: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
IEEE801.11n: 300Mbps
IEEE802.11a/n: 500mW Max
-82dBm @ 54Mbps, PER< 10%;
-78dBm @ MCS 15(11n, 20MHz), PER<10%;
-75dBm @ MCS 15(11n, 40MHz), PER<10%;
WEP: (64-bit, 128-bit key supported)
WAP/WAP2: 802.11 (WEP and AES encryption)
WAPPSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption
SSID broadcast disable
ARP,BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
PWR / Ready: 1 x LED
Green On: Power is on and functioning Normally.
1 x LED,
Green On: Port Link
Green Blinking: Transmitting data
1 x LED, Green for WLAN Link/Act
12~68VDC
9 Watts
IP-67
162(W) x 102(D) x 58(H) mm (6.38 x 4.02 x2.28inch.) 162(W) x 102(D) x 48(H) mm (6.38 x 4.02 x 1.89 inch.)
680 g
-30 to 85 C (-22 to 185 F) o o
-30 to 70 C (-22 to 158 F) o o
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-1
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
3 years
Quick Installation Guide
IAP-W512
