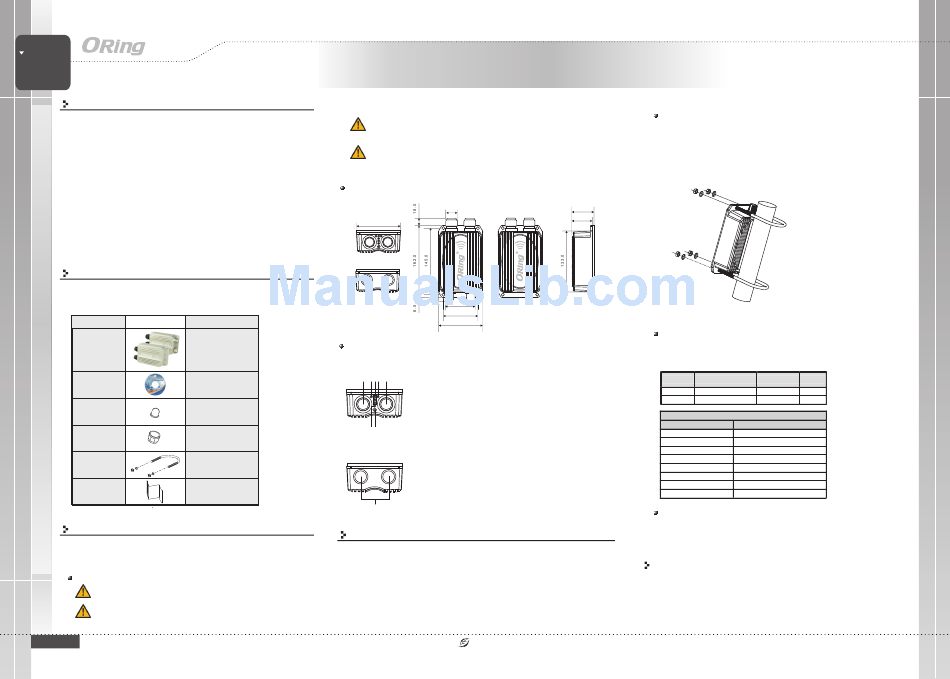

Introduction
The IAP-W420+/W422+ is a reliable IP-67 outdoor IEEE 802.11 b/g/n WLAN
access point with two 10/100Base-T(X) P.D. Ethernet ports. It can be
configured to operate in AP/Client/AP-Client/Bridge modes and is specifically
designed for the toughest industrial environments. The combination of an IP-
67 design and superb management functionality, the IAP-W420+/W422+
provides a waterproof, dust-tight connection. In addition, IAP-W420+
provides a high power output of 800mw and throughput up to 80Mbps to
satisfy long distance connections. The IAP-W422+ provides two N-type
connectors for any N-type antennas to extend communication distances.
You are able to configure the device by Web interface via the LAN port or
by WLAN interface. In addition, the device provides P.D. feature which is fully
compliant with IEEE802.3af PoE standard to save the layout cost of power
line. The device can be easily adopted in almost all kinds of applications and
provides the most rugged solutions for managing your network in outdoors.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
IAP-W420+/
IAP-W422+
CD
N-type ANT. Rubber
X 2
Seal
RJ-45 Rubber Seal
Pole Mount Kit
QIG
Preparation
Before installation, make sure you have all of the package contents
available and a PC with Microsoft Internet Explorer 6.0 or later, for using
web-based system management tools.
Safety & Warnings
When installed outdoors, make sure the LAN ports are covered by RJ-45 rubber
seals provided with the package.
Do not remove the water-proof casing, and avoid touching or moving the
device when the antennas are transmitting or receiving.
Q I G
IAP-W420+/W422+
IAP-W420+/W422+
G
uide
When installing the device, make sure to keep the radiating at a minimum distance of 20 cm
(7.9 inches) from all persons to minimize the potential for human contact during normal
operation.
Do not operate the device near unshielded blasting caps or in an otherwise explosive
environment unless the device has been modified for such use by qualified personnel.
Dimension
101.5
Number
Panel Layouts
X 1
Front Panel
1 3 5 4
X 1
(IAP-W422+ only)
6 7
X 2
Rear Panel
X 2
X 1
1
IAP-W422+
Installation
The device can be fixed to a pole or the wall using the supplied mounting kits. Before installing
the device, make sure you have all of the package contents available and a PC with
Microsoft Internet Explorer 6.0 or later, for using web-based system management tools.
1907-2-29-IAPW42X-1.0
30.3
64.5
75.0
101.5
2
1. Non-PoE LAN port
2. PoE LAN port
3. LNK/ACT LED for non-PoE LAN port
4. LNK/ACT LED for PoE LAN port
5. WiFi connections (weakest signal strength at
the bottom, strongest at the top)
6. Power indicator
7. Reset button
1. N-type antenna connectors
PRINTED ON RECYCLED PAPER
Industrial IP-67 PoE Outdoor Access
Point
Pole mounting
You can mount the device to a pole using adjustable steel band straps included in the
package.
Thread the two supplied metal mounting straps through the screw holes on the edge of
the unit and then put the straps around the pole, as shown below. Put the washers and nuts
through the straps and tighten the strap.
47.3
48.0
Pole
Network Connection
The device has two 10/100Base-T(X) Ethernet ports. According to the link type, the AP
uses CAT 3, 4, 5, 5e, 6UTP cables to connect to any other network device (PCs,
servers, switches, routers, or hubs).
Cable Type
10Base-T Cat. 3, 4, 5 100-ohm
100Base-TX Cat. 5 100-ohm UTP
10/100Base-T(X) RJ-45 Port Pin Assignments
Pin Number
1
2
3
4
5
6
7
8
Power Supply
The device is powered by an Ethernet cable via the PoE port, which is on the right hand
side. Make sure the PoE port is connected with an RJ-45 cable and check if the
power LED lights up after connection.
Configurations
After connecting an Ethernet cable to the PoE port, the green power LED
should turn on. Please refer to the following table for LED indication.
Version 1.0
Max. Length Connector
UTP 100 m (328 ft) RJ45
UTP 100 m (328 ft) RJ45
Assignment
TD+
TD-
RD+
N.C.
N.C.
RD-
N.C.
N.C.
Quick Installation Guide
