ORiNG IAP-620 Quick Installation Manual

ORing Industrial Networking Corp.
Wireless
ACCESS POINT
Q I
I N D U S T R I A L uick nstallation
Introduction

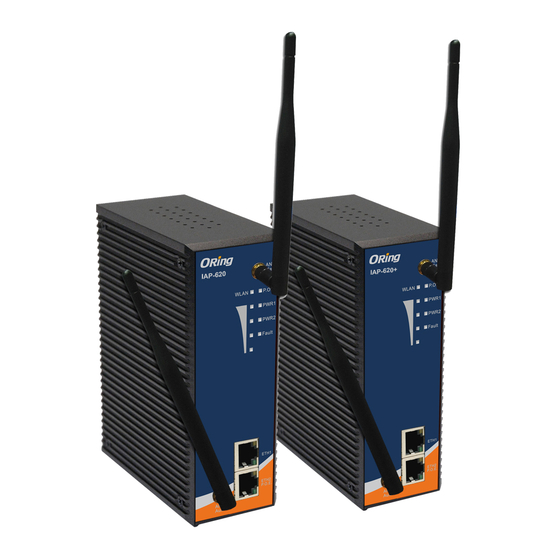

IAP-620 / IAP-620+ series are reliable 802.11 a/b/g/n WLAN Access
Point with 2 ports LAN. It supports 802.1X and MAC filters for security
control. It can be configured to operate in AP/Bridge/Repeater/AP-
Client mode. You are able to configure IAP-620 / IAP-620+ series
WEB interface via LAN port or WLAN interface.
series provide dual Ethernet ports in switch mode, so that you can
use Daisy Chain to reduce the usage of Ethernet switch ports. In
addition, IAP-620+ also provides P.D. feature on ETH2 which is fully
compliant with IEEE802.3af PoE P.D. specification. Therefore,
/ IAP-620+ series are one of the best communication solutions for
wireless applications on the industrial network.
Features
High Speed Air Connectivity: WLAN interface support up to 300Mbps
link speed
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Support X-Roaming < 100 ms
Support wireless load balance
Support AP/Client/Bridge/AP-Client Mode
Switch Mode Supported: Daisy Chain support to reduce usage of
switch ports
Dual redundant Ethernet port support redundant mode (Recovery
time < 10ms)
Secured Management by HTTPs
Fully Compliant with IEEE802.3af (Power Device at ETH2, PoE Models)
Wireless connecting status monitoring
Event Warning by Syslog, Email, SNMP Trap, Relay output and Beeper
1KV isolation for PoE P.D. port of IAP-620+
Rigid IP-30 housing design
DIN-Rail and Wall-mount enabled
Open-Vision
IAP-620/IAP-620+ can also be configure through ORing's Windows utility
Open-Vision
Step 1: Open the commander and click "Discover", the AP devices will
show on the list.
Step 2: Choose your access point, and it will show the AP function tree.
Simultaneity, you can login and then set the AP.
Q I G
IAP-620 Series
IAP-620 Series
G
uide
Specifications
ORing WLAN Access Point
Model
Physical Ports
by
10/100Base-T(X) Ports in RJ45
Auto MDI/MDIX
IAP-620 / IAP-620+
PoE P.D Port
IAP-620
WLAN Interface
Operating Mode AP/Client/Bridge/AP-Client
Antenna Connector 2 x External reverse SMA type antenna connector
IEEE802.11a/n: OFDM with BPSK, QPSK, 16QAM, 64QAM
Modulation
IEEE802.11b: CCK, DQPSK, DBPSK
IEEE802.11g/n: OFDM with BPSK, QPSK, 16QAM, 64QAM
America/FCC:
2.412~2.462 GHz (11 channels)
5.180~5.240 GHz & 5.745~5.825 GHz (9 channels)
Europe CE/ETSI:
2.412~2.472 GHz (13 channels)
5.180~5.240 GHz (4 channels)
Frequency Band
Japan(JP):
2.412~2.484 GHz (13 Channels)
5.180~5.240 GHz (4 channels)
Canada(CA):
2.412~2.462 GHz (11 channels)
5.180~5.240 GHz & 5.745~5.825 GHz (9 channel)
802.11b: 1/2/5.5/11 Mbps;
Transmission Rate 802.11a/g: 6/9/12/18/24/36/48/54 Mbps
802.11n(40MHz): UP to 300 Mbps
802.11a: 13dBm 1.5dBm
802.11b: 16dBm 1.5dBm
802.11g: 14dBm 1.5dBm
Transmit Power
802.11n(2.4G@20MHz): 13dBm 1.5dBm
802.11n(2.4G@40MHz): 12dBm 1.5dBm
802.11n(5G@20MHz): 12dBm 1.5dBm
802.11n(5G@40MHz): 12dBm 1.5dBm
802.11a: -68dBm 2dBm@54Mbps
802.11b: -82dBm 2dBm@11Mbps
802.11g: -68dBm 2dBm@54Mbps
Receiver Sensitivity 802.11n(2.4G@20MHz, MCS15): -64dBm 2dBm
802.11n(2.4G@40MHz, MCS15): -60dBm 2dBm
802.11n(5G@20MHz, MCS15): -64dBm 2dBm
802.11n(5G@40MHz, MCs15): -60dBm 2dBm
WEP: (64-bit ,128-bit key supported)
WPA:
WPA2 :802.11i(WEP and AES encryption)
Encryption Security
WPA-PSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption
Wireless Security SSID broadcast disable
Protocol Support
Protocol ARP,BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
LED Indicators
PWR 1(2)(PoE) / Ready:
Power Indicator Red On: Power is on and booting up.
Green On: Power is on and functioning Normally.
10/100Base-T(X) RJ45 port
Green for port Link/Act at 100Mbps. Amber for port Link/Act at 10Mbps.
indicator
WLAN Link /ACT: Green: Link, Orange : Poor signal
WLAN LED
Green for WLAN Strength: 1<25%, 2<50%, 3<75%, 4<100%
Fault
Red for Ethernet link down or power down indicator
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input power
Dual DC inputs. 12~48VDC on 6-pin terminal block
Power consumption(Typ.) 6 Watts
Reverse polarity protection
Present
Overload current protection Present
Physical Characteristic
Enclosure
IP-30
Dimension (W x D x H) 54.1(W) x 106.1(D) x 145.4(H) mm (2.13 x 4.18 x 5.72 inch.)
Weight (g)
Environmental
Storage Temperature -40 to 85 C (-40 to 185 F)
Operating Temperature
-10 to 60 C (-14 to 140 F)
Operating Humidity
5% to 95% Non-condensing
1907-2-29-IAP620-0
IAP-620 IAP-620+
2
Present at ETH2
Fully compliant with IEEE 802.3af Power
Device specification
Over load & short circuit protection
Isolation Voltage: 1000 VDC min.
Isolation Resistance: 10 ohms min 8
±
±
±
±
±
±
±
±
±
±
±
±
±
±
800 g 804 g
o o
o o
PRINTED ON RECYCLED PAPER
Industrial Wireless LAN Access
Point
Regulatory Approvals
EMI
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN1000-4-6(CS),
EMS
EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration
IEC60068-2-6
Safety EN60950-1
Warranty 3 years

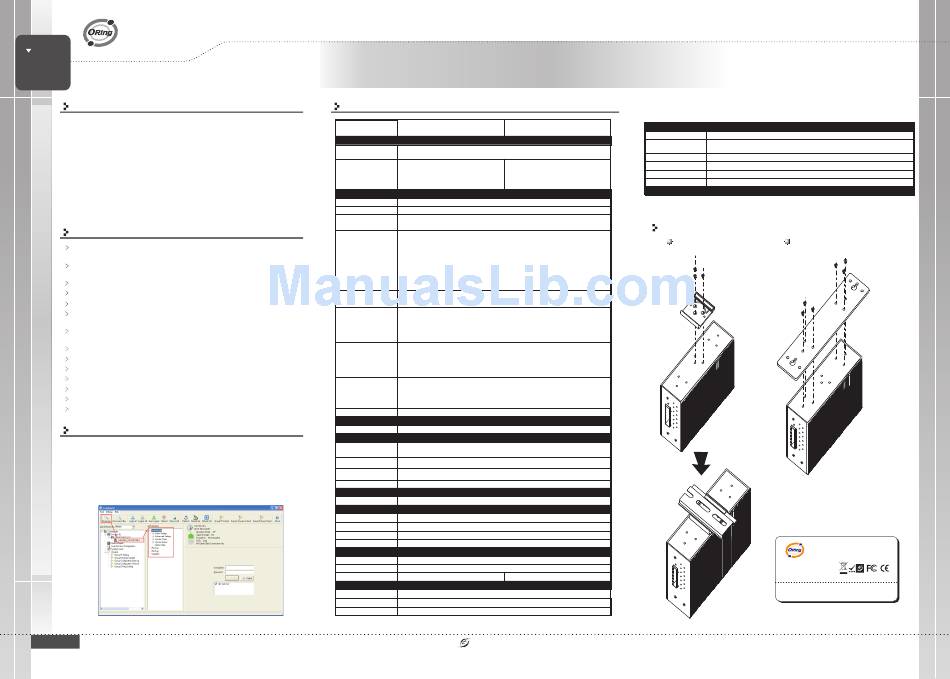

Installation
DIN-Rail Install Step Wall-mounted Install Step
ORing Industrial Networking Corp.
Copyright© 2012 ORing
All rights reserved.
TEL: +886-2-2218-1066 Website: www.oring-networking.com
FAX: +886-2-2218-1014 E-mail: support@oring-networking.com
Quick Installation Guide
Version 1.1
