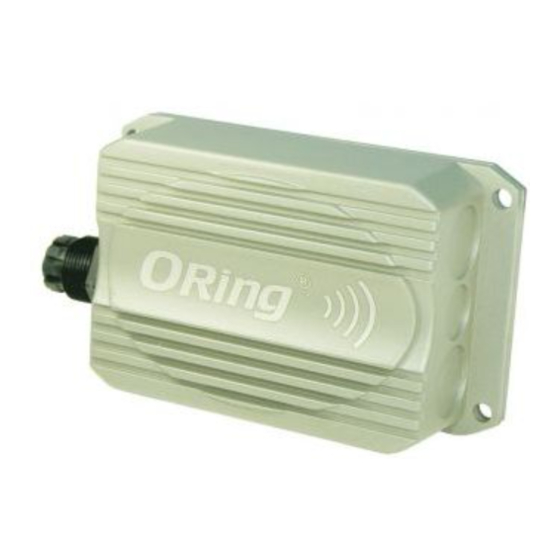

ORiNG IAP-W510 User Manual

Hide thumbs Also See for IAP-W510:
Table of Contents

Advertisement

Quick Links

Download this manual
Industrial

Wireless Access Point

IAP-W510 / W512 User's Manual
Version 1.0
Oct, 2010.
ORing Industrial Networking Corp.
4F, NO.3, Lane235, Baociao Rd. Sindian City,
Taipei County 23145 Taiwan, R.O.C.
Tel: + 886 2 2918 3036
Fax: + 886 2 2918 3084
Website: www.oring-networking.com
E-mail:
support@oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAP-W510 and is the answer not in the manual?

Questions and answers

Related Manuals for ORiNG IAP-W510

Summary of Contents for ORiNG IAP-W510

  • Page 1: Wireless Access Point

    Industrial Wireless Access Point IAP-W510 / W512 User’s Manual Version 1.0 Oct, 2010. ORing Industrial Networking Corp. 4F, NO.3, Lane235, Baociao Rd. Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website: www.oring-networking.com...

  • Page 2: Table Of Contents

    Table of Content Getting to Know Your Access Point ..................1 About the ORing Access Point ..................1 Software Features ......................1 Hardware Features ......................1 Hardware Installation ....................... 2 Pole Mounting Installation ....................2 Wall Mounting Installation ....................2 Hardware Overview ........................
  • Page 3 About Web-Based Management ..................10 Main Interface ........................11 5.5.1 Basic Setting ........................11 Setting Operation Mode ......................11 Setting WDS (Bridge Mode) ....................13 Setting Wireless ........................17 AP-Client/Client ........................23 LAN Setting ..........................24 Setting DHCP Server........................ 26 5.5.2 Advanced Setting ......................
  • Page 4 Wireless Clients ........................42 5.5.5 Online Help........................42 Technical Specifications ......................43 A ............................45 PPENDIX How to configure SNMP MIB and use SNMP in the PCs? ............45...

  • Page 5: Getting To Know Your Access Point

    10/100Base-T(X) Ethernet port  Casing: IP-67  Dimensions(W x D x H) : 162 mm(W)x 102 mm( D )x 58 mm(H) for IAP-W510; 162 mm(W)x 102 mm( D )x 48 mm(H) for IAP-W512  Operating Temperature: -30 to 70 ...

  • Page 6: Hardware Installation

    IAP-W510 / W512 User‟s Manual ardware Installation Pole Mounting Installation Wall Mounting Installation ORing Industrial Networking Corp.

  • Page 7: Hardware Overview

    IAP-W510 / W512 User‟s Manual ardware Overview Front Panel The following table describes the labels that stick on the IAP-W510 / W512. Port Description 10/100 RJ-45 fast 10/100Base-T(X) RJ-45 fast Ethernet ports support Ethernet ports auto-negotiation. Speed: auto ANT. 2 x External N-type antenna connector for IAP-W512, Build-in...

  • Page 8: Front Panel Leds

    Ethernet Cables The IAP-W510 / W512 WLAN AP have standard Ethernet ports. According to the link type, the AP use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs).

  • Page 9: 100Base-T(X)/10Base-T Pin Assignments

    IAP-W510 / W512 User‟s Manual 100Base-T(X)/10Base-T Pin Assignments With 100Base-T(X)/10Base-T cable, pins 1 and 2 are used for transmitting data, and pins 3 and 6 are used for receiving data. RJ-45 Pin Assignments Pin Number Assignment Not used Not used...

  • Page 10: Wireless Antenna

    IAP-W510 / W512 User‟s Manual Wireless Antenna 2 x External N-type antenna connector for IAP-W512, Build-in 15dBi panel antenna for IAP-W510 ORing Industrial Networking Corp.

  • Page 11: Management Interface

    Explore IAP-W510 / W512 5.1.1 AP-Tool software Each model contains friendly software, AP-Tool, to explore IAP-W510 / W512 on local area network. Step 1: Open the AP tool and click “Refresh list”, the AP devices will show on the list.

  • Page 12: Upnp Equipment

    IAP-W510 / W512 User‟s Manual UPnP Equipment Step 1: To check whether the UPnP UI of the computer is connected to the IAP-W510 / W512, go to Control Panel > Add or Remove Programs > Windows Components Wizard > Networking Servers > UPnP User Interface and pitch on the UPnP User Interface.
  • Page 13 IAP-W510 / W512 User‟s Manual Step 3: Click the sign of the UPnP equipment, then you will find the UPnP equipment in the network neighborhood. ORing Industrial Networking Corp.

  • Page 14: Configuration By Web Browser

    IAP-W510 / W512 User‟s Manual Configuration by Web Browser This section introduces the configuration by Web browser. About Web-Based Management An embedded HTML web site resides in flash memory in the system. It contains advanced management features and allows you to manage the AP from anywhere on the network through a standard web browser such as Microsoft Internet Explorer.

  • Page 15: Main Interface

    IAP-W510 / W512 User‟s Manual System Tools > Administrator and modify the password. Main Interface The Home screen will appear. Please click “Run Wizard” to go to the Home > Setup Wizard page to quick install the AP. Main interface 5.5.1...
  • Page 16 The static LAN-to-LAN bridging function is supported through Wireless Distribution System (WDS). In each mode, the IAP-W510 / W512 forwards packet between its Ethernet interface and wireless interface for wired hosts on the Ethernet side, and wireless hosts on the wireless side.

  • Page 17: Setting Wds (Bridge Mode)

    IAP-W510 / W512 User‟s Manual Setting WDS (Bridge Mode) WDS setting interface The following table describes the labels in this screen. Label Description This mode provides Static LAN-to-LAN Bridging functionality. WDS Mode The static LAN-to-LAN bridging function is supported through Wireless Distribution System (WDS).
  • Page 18 IAP-W510 / W512 User‟s Manual Point-to-Multipoint WDS Link Point-to-Point WDS Link First of all, if APs link with WDS mode, it should obey the following rules: 1. LAN IP Address should set different IP in the same network. 2. All AP‟s DHCP Server should set shutdown.
  • Page 19 IAP-W510 / W512 User‟s Manual 5. WEP Key and Channel should be the same, and each AP‟s SSID should be broadcast to see in the other‟s computer. 6. AP‟s distance should limit to a certainty area. WDS – Restricted Mode The peer WDS APs are according to the MAC address listed in "Peer Mac Address"...
  • Page 20 IAP-W510 / W512 User‟s Manual In the figure, the AP behaves as a standard bridge that forwards traffic between WDS links (links that connect to other AP/wireless bridges) and an Ethernet port. As a standard bridge, the AP learns MAC addresses of up to 64 wireless or 128 total wired and wireless network devices, which are connected to their respective Ethernet ports to limit the amount of data to be forwarded.

  • Page 21: Setting Wireless

    IAP-W510 / W512 User‟s Manual In the figure, Repeater is used to extend the range of the wireless infrastructure by forwarding traffic between associated wireless stations and another repeater or AP connected to the wired LAN. Setting Wireless The following table describes the labels in this screen.
  • Page 22 IAP-W510 / W512 User‟s Manual Channel Auto is the default channel, input a new number if you Channel want to change the default setting. All devices on the network must be set to the same channel to communicate on the network.
  • Page 23 IAP-W510 / W512 User‟s Manual Security Type – WEP 1. Security Type: Select WEP 2. WEP Encryption: Select 64 Bit or 128 Bit WEP encryption. 3. Key Type: Select ASCII or Hex key type. 4. Default Key Index: Select one of the keys to be the active key.
  • Page 24 IAP-W510 / W512 User‟s Manual Security Type – WPA-PSK/WPA2-PSK 1. Security Type: Select WPA-PSK/WPA2-PSK. 2. Encryption Type: Select TKIP or AES encryption. 3. Share Key: Enter your password. The password can be between 8 and 64 characters. Security Type – WPA /WPA2 1.
  • Page 25 IAP-W510 / W512 User‟s Manual 4. Shared Secret: Enter the RADIUS password or key. Security Type – 802.1x 1. Security Type: Select 802.1x 2. Radius Server IP: Enter the IP address of the RADIUS Server. 3. Port: Enter the RADIUS port (1812 is default).
  • Page 26 IAP-W510 / W512 User‟s Manual RADIUS (Remote Authentication Dial-in User Service) is the industrial standard agreement, and it is used to provide an identify verification. The Radius customer (is usually a dial-in server, VPN server or wireless point) send your proof and the conjunction parameter to the Radius server by Radius news.

  • Page 27: Ap-Client/Client

    IAP-W510 / W512 User‟s Manual AP-Client/Client The Basic setting—>AP-Client/Client page is mainly set the client which through the SSID and Security to connect to other AP. In this mode, the Security Type should be the same with the AP Server.

  • Page 28: Lan Setting

    IAP-W510 / W512 User‟s Manual The following table describes the labels in this screen. Label Description Enter the other AP which used for AP mode. Peer AP SSID You can scan the APs which used for AP mode in the certainty area Site Scan Set the same security with the AP which you want to connect.
  • Page 29 Obtain an IP address Select this option if you would like to have an IP address automatically automatically assigned to the IAP-W510 / W512 by DHCP server in your network Select this option if you are manually assigning an IP address.

  • Page 30: Setting Dhcp Server

    IP will not been occupied for a long time or the server doesn‟t know that the dynamic IP is idle. DHCP Clients List List the devices on your network that are receiving dynamic IP addresses from the IAP-W510 / 512. ORing Industrial Networking Corp.

  • Page 31: Advanced Setting

    IAP-W510 / W512 User‟s Manual 5.5.2 Advanced Setting Wireless The following table describes the labels in this screen. Label Description Beacon Interval The default value is 100. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the AP to synchronize the wireless network.
  • Page 32 IAP-W510 / W512 User‟s Manual clients of the next window for listening to broadcast and multicast messages. When the AP has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages.
  • Page 33 IAP-W510 / W512 User‟s Manual Wireless Network If you have 802.11N (5G) devices in your network, then keep the Mode default setting, N (5G) mode. If you have only Wireless-A devices, select A Mode or A/N mix mode. Transmission Rate The default setting is Auto.

  • Page 34: X-Roaming

    IAP-W510 / W512 User‟s Manual X-Roaming X-Roaming Disable: Disable X-Roaming protocol. Standard: Roaming group does not require the same wireless channel, but slower to switch than the “fixed channel” mode Fixed channel: Roaming group must be required the same wireless channel, but faster to switch than the “Standard” mode Signal Threshold for Roaming signal threshold setting.

  • Page 35: Mac Filter

    Use Advanced Setting > MAC Filters to allow or deny wireless clients, by their MAC addresses, from accessing the IAP-W510 / W512. You can manually add a MAC address or select the MAC address from Connected Clients that are currently connected to the AP.

  • Page 36: System Event

    IAP-W510 / W512 User‟s Manual Connected Clients This list will display the wireless MAC addresses that linked with MAC Address MAC addresses need to be added to or clear from MAC filter list. Apply Click Apply to set the configurations.

  • Page 37: Email Settings

    IAP-W510 / W512 User‟s Manual Email Settings The following table describes the labels in this screen. Label Description SMTP Server Simple Message Transfer Protocol, enter the backup host to use if primary host is unavailable while sending mail by SMTP server.

  • Page 38: Syslog Server Settings

    IAP-W510 / W512 User‟s Manual The following table describes the labels in this screen. Label Description SNMP Agent SNMP (Simple Network Management Protocol) Agent is a service program that runs on the access point. The agent provides management information to the NMS by keeping track of various operational aspects of the AP system.

  • Page 39: System Tools

    IAP-W510 / W512 User‟s Manual 5.5.3 System Tools Administrator In this page, you can change the username and password. The new password must be typed twice to confirm (the default Name and Password is “admin” and “”). The following table describes the labels in this screen.
  • Page 40 IAP-W510 / W512 User‟s Manual This field can‟t accept null input. New Password Enter a new login password. Acceptable inputs of this field contains '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. Confirm Retype the password to confirm it. Acceptable inputs of this field...

  • Page 41: Date & Time

    IAP-W510 / W512 User‟s Manual Date & Time In this page, set the date & time of the device. The correct date & time will be helpful for logging of system events. A NTP (Network Time Protocol) client can be used to synchronize date &...

  • Page 42: Configuration

    IAP-W510 / W512 User‟s Manual Configuration The following table describes the labels in this screen. Label Description Download The current system settings can be saved as a file onto the local configuration hard drive. Upload configuration The saved file or any other saved setting file can be uploaded back on the AP.

  • Page 43: Firmware Upgrade

    IAP-W510 / W512 User‟s Manual Firmware Upgrade New firmware may provide better performance, bug fixes or more functions. upgrade, you need a firmware file correspond to this AP model. It will take several minutes to upload and upgrade the firmware. After the upgrade is done successfully, the access point will reboot and get revalidated.

  • Page 44: System Status

    IAP-W510 / W512 User‟s Manual 5.5.4 System Status System Info This page displays the current information for the IAP-W510 / W512. It will display model name, as well as firmware version, Ethernet, Wireless info and device time. ORing Industrial Networking Corp.

  • Page 45: System Log

    IAP-W510 / W512 User‟s Manual System Log The system log tracks the important events and setting changes of the AP. If the AP is rebooted, the logs are automatically cleared. Click the button 'Refresh' to refresh the page; Click the button 'Clear' to clear log entries.

  • Page 46: Wireless Clients

    IAP-W510 / W512 User‟s Manual Wireless Clients This page of the list displays the Mac Address of the wireless clients connected. Current TX Rate is corresponding to the Transmission Rate in the Advanced Setting > Wireless pages. 5.5.5 Online Help Click on any item in the Online Help screen for more information.

  • Page 47: Technical Specifications

    IAP-W510 / W512 User‟s Manual echnical pecifications LAN Interface RJ45 Ports 1 x 10/100Base-T(X), Auto MDI/MDI-X Protocols IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SNMPV1/V2, Trap, Private WLAN Interface Operating Mode AP/Bridge/Repeater/AP-Client/Client Antenna Connector External N-type...
  • Page 48 Storage Temperature -30 to 85 Operating Humidity 100% non-condensing Mechanical Dimensions(W x D x H) 162 mm(W)x 102 mm(D)x 58 mm(H) for IAP-W510 162 mm(W)x 102 mm(D)x 48 mm(H) for IAP-W512 Casing IP-67 protection Regulatory Approvals Regulatory Approvals FCC Part 15, CISPR (EN55022) class A...

  • Page 49: Appendixa

    IAP-W510 / W512 User‟s Manual PPENDIX How to configure SNMP MIB and use SNMP in the PCs? Step 1, Set Enable about the SNMP inn the web of Advanced SettingEmail/SNMP/Syslog, and input the IP address of the PC used for SNMP trap server.
  • Page 50 IAP-W510 / W512 User‟s Manual 2. After the installation, click into MIB Compile to add the MIB files(for example, the Oring 802.11a/b/g and no PoE FW), and save the configuration. 3. Open MIB Brower and select the list of MIB, then select the ORING-ABG-2Port-AP-MIB which in the MIB Modules to add in the Loaded MIB modules.
  • Page 51 IAP-W510 / W512 User‟s Manual community. ORing Industrial Networking Corp.
  • Page 52 IAP-W510 / W512 User‟s Manual 5. After all the settings, you can see the information about the Oring AP in the MIB Tree. Step 3, Be familiar with SNMP information 1. The apNotifs list will show the trap box. To modify password as an example select the SNMP Trap option in the Advanced SettingSystem Event page...
  • Page 53 IAP-W510 / W512 User‟s Manual 2. The apInfo shows the basic information of the AP. To apSignalStrengthInfo as an example, right-click select "Get" on access to the Signal Strength information. Shows in SNMP： Shows in the web page Signal Strength:...
  • Page 54 IAP-W510 / W512 User‟s Manual 4. Also have the relevant information, you can right-click “Properties” to view a specific property features. ORing Industrial Networking Corp.
