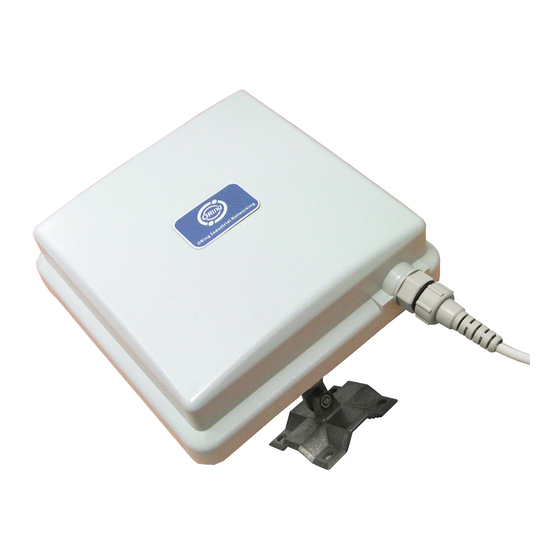

ORiNG IAP-6701-WG+ User Manual

Industrial wireless access point
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Industrial

Wireless Access Point

IAP-6701-WG+ User's Manual
Version 1.0
January, 2009.
ORing Industrial Networking Corp.
4F, NO.3, Lane 235, Baociao Rd. Sindian City,
Taipei County 23145 Taiwan, R.O.C.
Tel: + 886 2 2918 3036
Fax: + 886 2 2918 3084
Website: www.oring-networking.com
E-mail:
support@oring-networking.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IAP-6701-WG+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ORiNG IAP-6701-WG+

Summary of Contents for ORiNG IAP-6701-WG+

  • Page 1: Wireless Access Point

    Industrial Wireless Access Point IAP-6701-WG+ User’s Manual Version 1.0 January, 2009. ORing Industrial Networking Corp. 4F, NO.3, Lane 235, Baociao Rd. Sindian City, Taipei County 23145 Taiwan, R.O.C. Tel: + 886 2 2918 3036 Fax: + 886 2 2918 3084 Website: www.oring-networking.com...

  • Page 2: Table Of Contents

    Table of Content Getting to Know Your Access Point ............1 About the ORing Access Point..................1 Software Features ......................1 Hardware Features......................1 Hardware Installation..................2 Product Installation ......................2 Product Installation ......................23 Hardware Overview..................23 Front Panel ........................23 Cables and Antenna..................24 Ethernet Cables ........................24 100BASE-TX/10BASE-T Pin Assignments ..............24...
  • Page 3 Email Settings ..........................44 SNMP Settings .........................45 Syslog Server Settings......................45 5.5.3 System Tools........................46 Administrator ...........................46 Date & Time..........................47 Configuration ...........................49 Firmware Upgrade ........................49 Miscellaneous...........................50 5.5.4 System Status........................51 System Info ..........................51 System Log ..........................51 Traffic Statistics........................52 Wireless Clients........................52 5.5.5 Online Help........................53 Technical Specifications ................54...

  • Page 4: Getting To Know Your Access Point

    IAP-6002-WG / WG+ User’s Manual etting to Know Your Access Point 1.1 About the ORing Access Point IAP-6701-WG+ are reliable IEEE802.11b/g WLAN with 1 port LAN Access Point. It can be configured to operate in AP/Bridge/Repeater mode. You can configure IAP-6701-WG+ by Window Utility or WE...

  • Page 5: Hardware Installation

    Installation Product Installation 1. Remove the connector housing and pad (as shown below) from the accessories baggage. 2. Use the rubber pad to insert in the back side of connector housing. Before inserting the rubber pad ORing Industrial Networking Corp.
  • Page 6 IAP-6002-WG / WG+ User’s Manual Rubber pad inserted 3. Remove the gasket from the bag. ORing Industrial Networking Corp.
  • Page 7 IAP-6701-WG+ User’s Manual 4. Use the gasket to put in housing’s clamp ring end. Gasket fixed 5. Bring out the sealing pad (shown below) ORing Industrial Networking Corp.
  • Page 8 IAP-6002-WG / WG+ User’s Manual 6. Fix the sealing pad to insert in the head opening. See below picture for correct directions. 7. Before and after installation of sealing pad. Without sealing pad ORing Industrial Networking Corp.
  • Page 9 IAP-6701-WG+ User’s Manual Sealing pad inserted 8. Bring out the below clamping connector. ORing Industrial Networking Corp.
  • Page 10 IAP-6002-WG / WG+ User’s Manual 9. Insert the clamping connector to the bottom of housing connector. Securely tightening the two connectors will lead to waterproof joint. 10. Joint is securely tight and waterproof. ORing Industrial Networking Corp.
  • Page 11 IAP-6701-WG+ User’s Manual 11. Use the finished connector to attach with main device. 12. Securely attached connector with main device. ORing Industrial Networking Corp.
  • Page 12 IAP-6002-WG / WG+ User’s Manual 13. Remove the base metal plate shown below. 14. Loose the screw to remove the screw with washer and hexagon nut cap. ORing Industrial Networking Corp.
  • Page 13 IAP-6701-WG+ User’s Manual 15. Screw with washer and nut cap removed. 16. Place removed Screw with washer and nut cap at safe place. Nut cap position empty ORing Industrial Networking Corp.
  • Page 14 IAP-6002-WG / WG+ User’s Manual Nut cap inserted 17. Bring out the below metal accessory for wall/panel mounting the outdoor access point. ORing Industrial Networking Corp.
  • Page 15 IAP-6701-WG+ User’s Manual 18. Bring out the loosed screw with washer from metal base. 19. Position the wall/panel mount kit in the way that you can inserted the screw with washer to attach the handle with base. ORing Industrial Networking Corp.
  • Page 16 IAP-6002-WG / WG+ User’s Manual 20. Adjust the angle for face plate and use the nut cap on other side to secure the connection. Screw is tightened with nut cap ORing Industrial Networking Corp.
  • Page 17 21. Bring Access Point and put back side on the top at visible position. 22. Align the metal base with the provided squared space at the bottom of Access Point. All four corners should be fitted well. You can fix the mounting kit as per your required direction. ORing Industrial Networking Corp.
  • Page 18 IAP-6002-WG / WG+ User’s Manual 23. Use the provided screws to tighten the panel mounting kit with Access Point. ORing Industrial Networking Corp.
  • Page 19 IAP-6701-WG+ User’s Manual 24. Each screw (M4 type) comes with washer. Insert the washer if already separated. ORing Industrial Networking Corp.
  • Page 20 25. Tightened the screw fully to have secure attachment. 26. Before fixing the panel mounting base, change the angle as per surface requirement. Tight the screw to fix the position. Tighten the screw after position adjustment. ORing Industrial Networking Corp.
  • Page 21 IAP-6701-WG+ User’s Manual 27. Bring out the U-Bolt packing. It consists of 2 U-Bolts, 4 hexagon nuts, 4 drywall anchor, and 4 screws with washers. ORing Industrial Networking Corp.
  • Page 22 IAP-6002-WG / WG+ User’s Manual 28. Option 1: For mounting directly to wall, align the base at require position. Mark the screw hole positions. Use drill to have holes in wall Insert the drywall anchors in the drilled holes. ORing Industrial Networking Corp.
  • Page 23 Access Point 29. Option 2: Use provided U-Bolts to fixed the Access Point to any cylindrical base (pipe, steel round bar, round steel or wooden post etc) Take out the U-Bolts ORing Industrial Networking Corp.
  • Page 24 IAP-6002-WG / WG+ User’s Manual Insert U-Bolts on each side. Use hexagon nuts cap to hold the U-Bolts. U-Bolt insertion points Space for stand/bar Tighten the hexagon nut cap. Tight till securely hold the stand/bar Available space for stand/bar ORing Industrial Networking Corp.
  • Page 25 1) Make sure that you all screws and/or nuts are securely tight. Anything loose may result with sudden collapse of device from the attached position, and subject to financial damages or personal injuries/death. 2) Be sure to disconnect the power cord before installing and/or wiring your ORing product ORing Industrial Networking Corp.

  • Page 26: Product Installation

    IAP-6002-WG / WG+ User’s Manual Product Installation ardware Overview Front Panel The following table describes the labels that stick on the IAP-6701-WG+. Port Description P.O.E. PD Port IAP-6701-WG+ compliant with IEEE802.3af P.O.E. specifications ORing Industrial Networking Corp.

  • Page 27: Cables And Antenna

    RJ-45 Pin Assignments Pin Number Assignment Not used Not used Not used Not used The IAP-6701-WG+ AP support auto MDI/MDI-X operation. You can use a straight-through cable to connect PC and AP. The following table below shows the ORing Industrial Networking Corp.

  • Page 28: Wireless Antenna

    RD-(receive) TD-(transmit) Not used Not used Not used Not used Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. Wireless Antenna IAP-6701-WG+ include powerful wireless antenna in housing. ORing Industrial Networking Corp.

  • Page 29: Management Interface

    Step 2: Choose your access point, and it will show the AP attribute. Simultaneity, you can manual set the AP’s IP address. User interface of AP-Tool Step 3: Click “Access via web” button, it will go to web page. ORing Industrial Networking Corp.

  • Page 30: Upnp Equipment

    Control Panel > Add or Remove Programs > Windows Components Wizard > Networking Servers > UPnP User Interface and pitch on the UPnP User Interface. UPnP configuration page Step 2: At the right-below corner of the computer, you will find a sign of the UPnP equipment. ORing Industrial Networking Corp.
  • Page 31 Step 4: Right click the UPnP equipment to choose “Properties”, it will show as the following pictures: Step 5: Right click the UPnP equipment or double click the UPnP equipment to transfer; it will go to the web page. ORing Industrial Networking Corp.

  • Page 32: Configuration By Web Browser

    Through the front section’s information, you will see as follows, enter your user name (admin) and your password (leave blank by default), then click OK to continue. Login screen For security reasons, we strongly suggest you change the password. Click on System Tools > Administrator and modify the password. ORing Industrial Networking Corp.

  • Page 33: Main Interface

    This mode provides Static LAN-to-LAN Bridging functionality. Bridge The static LAN-to-LAN bridging function is supported through Wireless Distribution System (WDS). This mode provides Access Point services for other wireless clients. AP-Client The AP-Client function provides a 1-to-N MAC address mapping ORing Industrial Networking Corp.

  • Page 34: Setting Wds (Bridge Mode)

    This type of wireless link is established between two IEEE 802.11 access points. Wireless packets transmitted along the WDS link comply with the IEEE 802.11 WDS (Wireless Distribution System) format at the link layer. Point-to-Multipoint WDS Link ORing Industrial Networking Corp.
  • Page 35 5. WEP Key and Channel should be the same, and each AP’s SSID should be broadcast to see in the other’s computer. 6. AP’s distance should limit to a certainty area. WDS – Restricted Mode The peer WDS APs are according to the MAC address listed in "Peer Mac Address" fields. ORing Industrial Networking Corp.
  • Page 36 Same as Restrict mode in functionality and also one WDS link side can not set Peer Mac Address 1-4. The working principle of Bridge Mode as follows: In the figure, the AP behaves as a standard bridge that forwards traffic between WDS links ORing Industrial Networking Corp.

  • Page 37: Setting Wireless

    Mac Address 1-4. In the figure, Repeater is used to extend the range of the wireless infrastructure by forwarding traffic between associated wireless stations and another repeater or AP connected to the wired LAN. Setting Wireless ORing Industrial Networking Corp.
  • Page 38 Type: None: Select for no security. WEP: Select for security. Security options WPA-PSK/WPA2-PSK: Select for WPA-PSK or WPA2-PSK without a RADIUS server. WPA/WPA2: Select for WPA (Wi-Fi Protected Access) authentication in conjunction with a RADIUS server. ORing Industrial Networking Corp.
  • Page 39 Key 1-4: Input up to four encryption keys. ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers from 0-127. Hex digits consist of the numbers 0-9 and the letters A-F. ORing Industrial Networking Corp.
  • Page 40 Security Type – WPA /WPA2 1. Security Type: Select WPA/WPA2 2. Radius Server IP: Enter the IP address of the RADIUS Server. 3. Port: Enter the RADIUS port (1812 is default). 4. Shared Secret: Enter the RADIUS password or key. ORing Industrial Networking Corp.

  • Page 41: Lan Setting

    The Basic Setting > LAN Setting page is mainly set IP address for LAN interface. To access the AP normally, a valid IP address of your LAN should be specified to the LAN interface. The default IP setting is DHCP server (Obtain an IP address automatically). ORing Industrial Networking Corp.
  • Page 42 This option is selected by manually set DNS server Preferred DNS: There is a default DNS server, and you can input addresses another new DNS server. Alternate DNS: There is a default DNS server, and you can input another new DNS server. ORing Industrial Networking Corp.

  • Page 43: Setting Dhcp Server

    IP will not been occupied for a long time or the server doesn’t know that the dynamic IP is idle. List the devices on your network that are receiving dynamic IP DHCP Clients List addresses from the IAP-6701-WG+. ORing Industrial Networking Corp.

  • Page 44: Advanced Setting

    If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor modifications of this value are recommended. ORing Industrial Networking Corp.
  • Page 45 SSID Broadcast to associate with, they will detect the SSID broadcast by the AP. To broadcast the AP SSID, keep the default setting, Enable. If you do not want to broadcast the AP SSID, then select Disable. ORing Industrial Networking Corp.

  • Page 46: Mac Filter

    When the AP event triggered, the notification procedure will be performed according to the type of the event. Which notification would be performed depends on the selection of corresponding option in the Advanced Setting > System Event page. ORing Industrial Networking Corp.

  • Page 47: Email Settings

    Email Settings The following table describes the labels in this screen. Label Description SMTP Server Simple Message Transfer Protocol, enter the backup host to use if primary host is unavailable while sending mail by SMTP server. ORing Industrial Networking Corp.

  • Page 48: Snmp Settings

    Specify the IP of trap server, which is the address to which it will send traps AP generates. Community Community is essentially password to establish trust between managers and agents. Normally "public" is used for read-write community. SysLocation Specify sysLocation string. Specify sysContact string. SysContact Syslog Server Settings ORing Industrial Networking Corp.

  • Page 49: System Tools

    '0-9', 'a-z', 'A-Z' and must be between 0 to 15 characters in length. The factory default value of login password is null. New Name Enter a new login name. Acceptable inputs of this field contains ORing Industrial Networking Corp.

  • Page 50: Date & Time

    In this page, set the date & time of the device. The correct date & time will be helpful for logging of system events. A NTP (Network Time Protocol) client can be used to synchronize date & time with NTP server. ORing Industrial Networking Corp.
  • Page 51 Enable or disable NTP function to get the time from the NTP server. The initial choice about NTP Server. NTP Server 1 NTP Server 2 The second choice about NTP Server. Set the time, and the AP’s time synchronize with the NTP Server Synchronize at the time ORing Industrial Networking Corp.

  • Page 52: Configuration

    Firmware Upgrade New firmware may provide better performance, bug fixes or more functions. To upgrade, you need a firmware file correspond to this AP model. It will take several ORing Industrial Networking Corp.

  • Page 53: Miscellaneous

    Notice: DO NOT POWER OFF THE AP OR PRESS THE RESET BUTTON WHILE THE FIRMWARE IS BEING UPGRADED. Miscellaneous If you want restart the access point through the Warm Reset, click Restart Now to restart the AP. ORing Industrial Networking Corp.

  • Page 54: System Status

    The system log tracks the important events and setting changes of the AP. If the AP is rebooted, the logs are automatically cleared. Click the button 'Refresh' to refresh the page; Click the button 'Clear' to clear log entries. ORing Industrial Networking Corp.

  • Page 55: Traffic Statistics

    Simultaneity, the traffic counter will reset by the device rebooting. Wireless Clients This page of the list displays the Mac Address of the wireless clients connected. Current TX Rate is corresponding to the Transmission Rate in the Advanced Setting > Wireless pages. ORing Industrial Networking Corp.

  • Page 56: Online Help

    IAP-6002-WG / WG+ User’s Manual 5.5.5 Online Help Click on any item in the Online Help screen for more information. ORing Industrial Networking Corp.

  • Page 57: Technical Specifications

    IEEE802.11b/g: 18dBm Receiver Sensitivity -81dBm@11Mbps, PER< 8%; -64dBm@54Mbps, PER< 10% Encryption Security WEP: (64-bit, 128-bit key supported) WPA: WPA2:802.11i (WEP and AES encryption) PSK (256-bit key pre-shared key supported) TKIP encryption Wireless Security SSID broadcast disable Environmental ORing Industrial Networking Corp.
  • Page 58 IP-30 protection Regulatory Approvals Regulatory Approvals FCC Part 15, CISPER (EN55022) class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS) Shock IEC 60068-2-27 Free Fall IEC 60068-2-32 Vibration IEC 60068-2-6 Warranty 3 years ORing Industrial Networking Corp.
