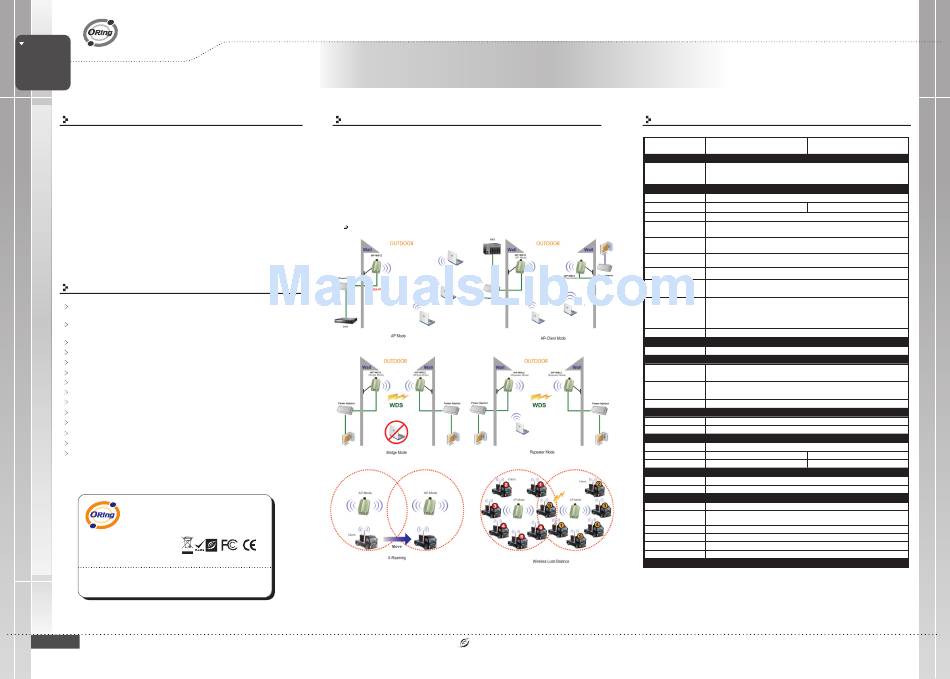

ORiNG IAP-W510 Quick Installation Manual

ORing Industrial Networking Corp.
IP -67
Wireless
Q I
ACCESS POINT
uick nstallation
Introduction

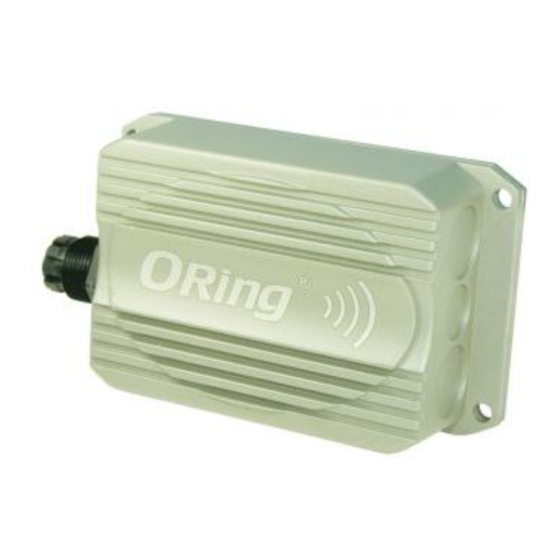

IAP-W510/W512 are reliable IP-67 outdoor IEEE 802.11 a/n WLAN
Access Point with a w aterproofed Ethernet port. It can be configured
to operate in AP/Bridge/Repeater/AP-Client/Client
combination with its IP-67 design and the superb management
functionality, IAP-W510/512 is specifically designed for the toughest
industrial environments and provides a waterproof, dust-tight
connection and two N-type connectors
install any N-type antennas to extend communication distance. In
addition, IAP-W510/W512 provide high output power up to 500mw and
high throughput to satisfy far distance connection. You are able to
configure IAP-W510/W512 by WEB interface via LAN port or WLAN
interface. IAP-W510/W512 can be easily adopted in almost all kinds
of applications and provides the most rugged solutions for managing
your network in outdoor. Therefore, IAP-W510/W512
outdoor communication solutions for wireless applications
Features
High Speed Air Connectivity: WLAN interface support up to
300Mbps link speed
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
High output power 500mw
Far Distance Air Connectivity up to 10KM
Support X-Roaming < 100ms
Support wireless load balance
Support external N-type antenna install (IAP-W512 Only)
Support AP/Bridge/Repeater/AP-Client/Client Mode
Wireless connecting status monitoring
HTTPs protocol supported for secured management
IP table to prevent unauthorized IP address from accessing
Event Warning by Syslog, Email, SNMP Trap
Rigid IP-67 housing design
Pole and Wall-mount enabled
ORing Industrial Networking Corp.
Copyright© 2010 ORing
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Q I G
IAP-W510/W512
IAP-W510/W512
G
uide
Applications
In practical operation of wireless access point, Windows utility (AP-Tool) is supported.
This utility is very helpful for you to search and configure IP of access point on the
industrial wireless network. In addition, the wireless access point support various kinds
mode. In
of operation modes include AP/Bridge/Repeater/AP-Client/Client mode.
W510/W512
the wireless network easily.
(IAP-W512 only) , that can
Various kinds of operation modes
are the best
1907-2-29-IAPW51X-0
IAP-
also can connect to each other up to 10,000 meters. You can build up
PRINTED ON RECYCLED PAPER
Industrial IP-67 Outdoor Access Point
Specifications
ORing WLAN Access Point
IAP-W510
Model
Physical Ports
10/100 Base-T(X) Ports in
1
RJ45 Auto MDI/MDIX
WLAN interface
Operating Mode AP/Bridge/Repeater/AP-Client/Client
Antenna Connector Build-in 15dBi panel antenna 2 x External N-type antenna connector
Radio Frequency Type OFDM
Technology
IEEE802.11a:OFDM with BPSK, QPSK, QAM, 64QAM
Modulation
IEEE802.11n : BPSK, QPSK, 16-QAM, 64-QAM
America / FCC: 5.15 to 5.825 GHz (13 channels)
Frequency Band
Europe / ETSI: 5.15 to 5.724 GHz (19 channels)
IEEE802.11a: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
Transmission Rate
IEEE801.11n: 300Mbps
Transmit Power IEEE802.11a/n: 500mW Max
-82dBm @ 54Mbps, PER< 10%;
-78dBm @ MCS 15(11n, 20MHz), PER<10%;
Receiver Senstivity
-75dBm @ MCS 15(11n, 40MHz), PER<10%;
WEP: (64-bit, 128-bit key supported)
WAP/WAP2: 802.11 (WEP and AES encryption)
WAPPSK (256-bit key pre-shared key supported)
Encryption Security
802.1X Authentication supported
TKIP encryption
Wireless Security SSID broadcast disable
Protocol Support
Protocol ARP,BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
LED indicators
PWR / Ready: 1 x LED
Power indicator
Green On: Power is on and functioning Normally.
10/100Base-T(X) Rj45 port
1 x LED,
indicator Green On: Port Link
Green Blinking: Transmitting data
WLAN 1 x LED, Green for WLAN Link/Act
Power
Input power
48 DC over Ethernet
Power consumption(Typ.) 9 Watts
Physical Characteristic
Enclosure IP-67
Dimension (W x D x H) 162(W) x 102(D) x 58(H) mm (6.38 x 4.02 x2.28inch.) 162(W) x 102(D) x 48(H) mm (6.38 x 4.02 x 1.89 inch.)
Weight (g) 600 g 700 g
Environmental
Storage Temperature -30 to 85 C (-22 to 185 F) o o
o o
Operating Temperature -30 to 70 C (-22 to 158 F)
Regulatory approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-1
Shock
IEC60068-2-27
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6
Safety
EN60950-1
Warranty 3 years
Quick Installation Guide
Version 1.0
IAP-W512
