4 Control Panel Operation (Tractor version)
On the controlpanel are:
Three keys: USER1, OFFLINE and USER2
Five LEDs: DATA, ON, USER1, OFFLINE and USER2.
ON LED colour is green while the others are orange.
The meaning and application of each key and LED are described below.

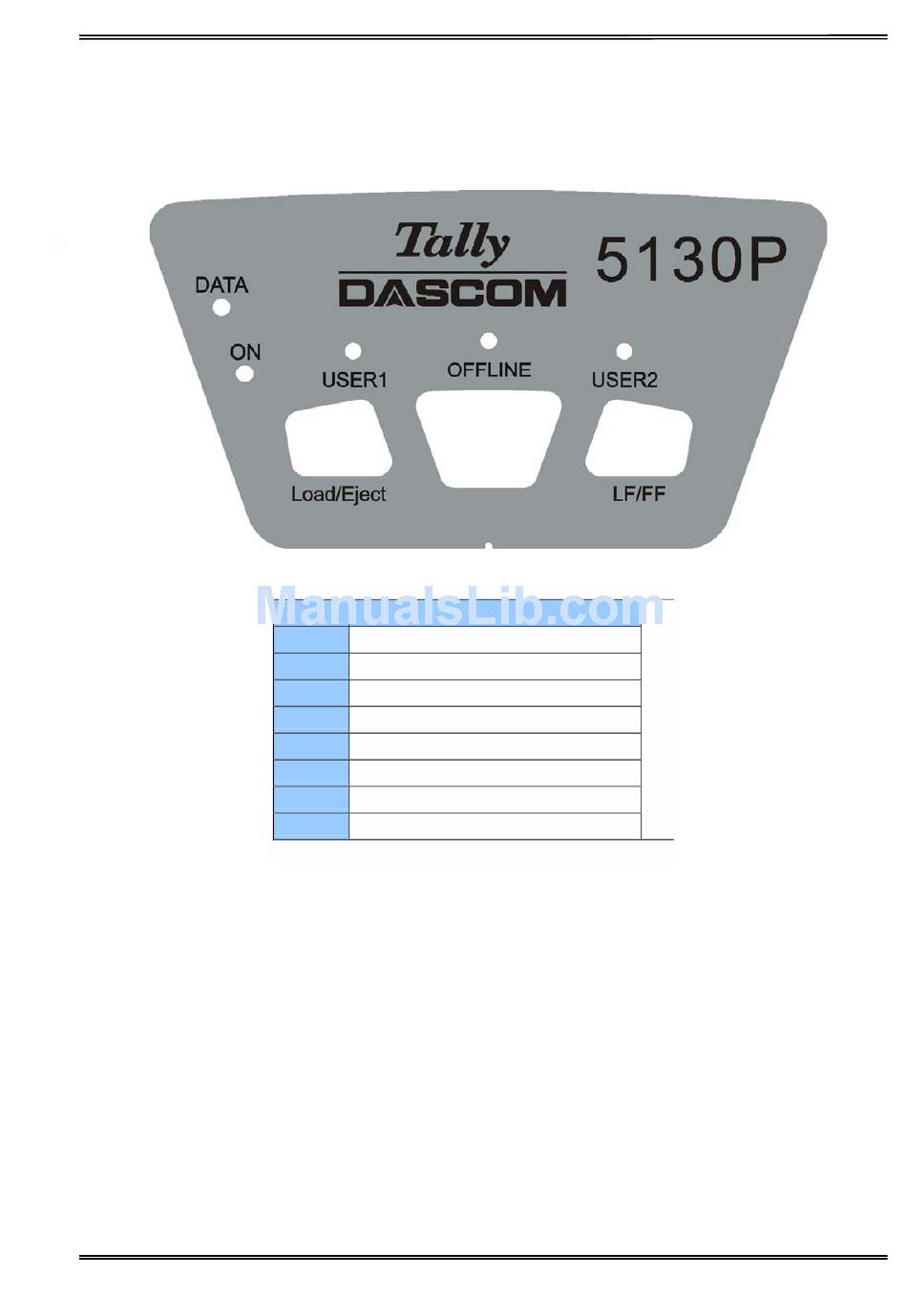

Labeling
L1
DATA
L2
ON
L3 Shared with S1 top label
L4 Shared with S2 top label
L5 Shared with S3 top label
S1 Top: USER1; Bottom: Load/Eject
S2 Top: OFFLINE; Bottom: -
S3 Top: USER2; Bottom: LF/FF
