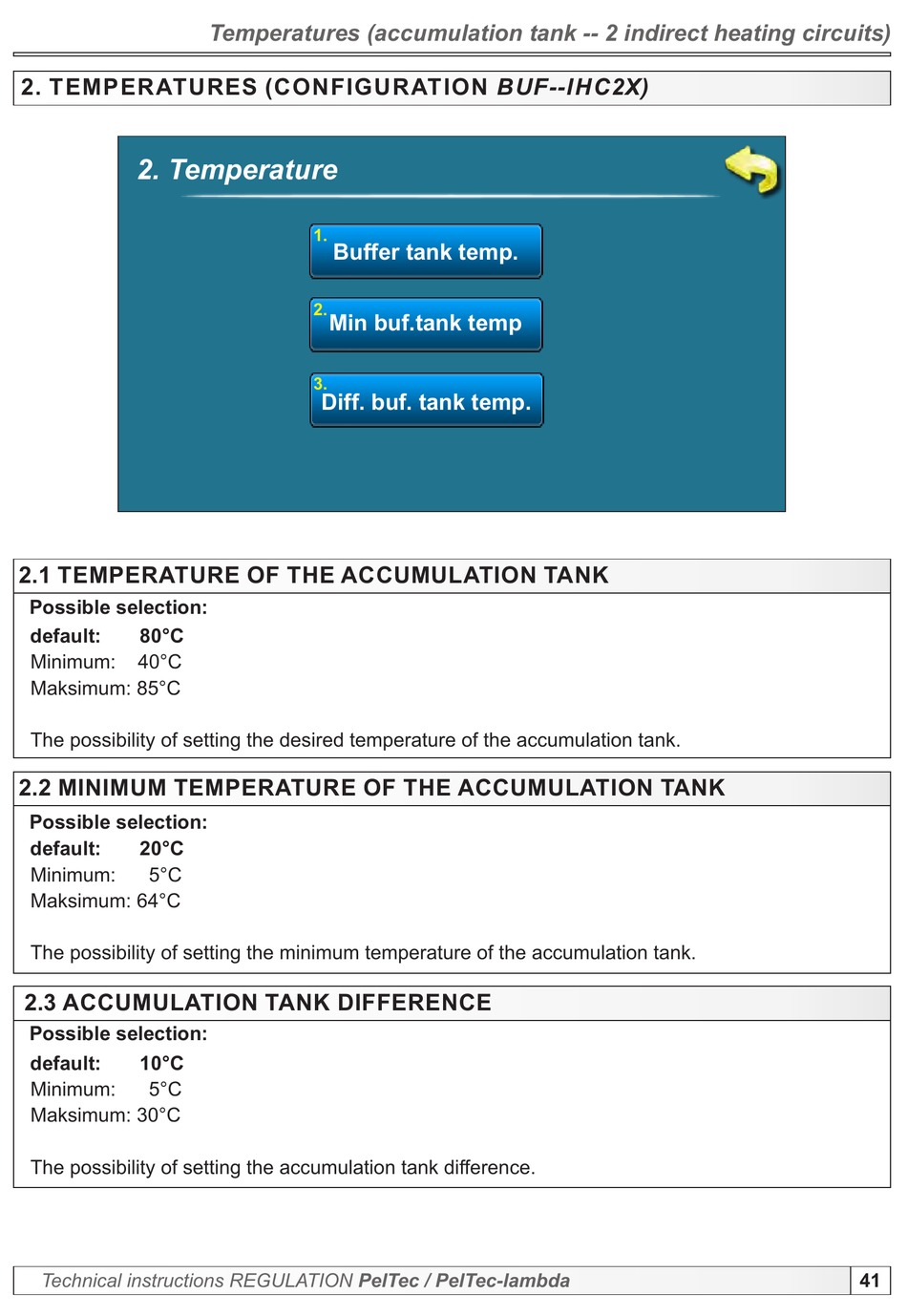

Centrometal PelTec 12-48 Technical Instructions page 41

2. TEMPERATURE (KONFIGURACIJA AKU--IKG) TEMPERATURE
2. Temperature
2.1 TEMPERATURE OF THE ACCUMULATION TANK
Possible selection:
default: 80°C
Minimum: 40°C
Maksimum: 85°C
The possibility of setting the desired temperature of the accumulation tank.
2.2 MINIMUM TEMPERATURE OF THE ACCUMULATION TANK
Possible selection:
default: 20°C
Minimum: 5°C
Maksimum: 64°C
The possibility of setting the minimum temperature of the accumulation tank.
2.3 ACCUMULATION TANK DIFFERENCE
Possible selection:
default: 10°C
Minimum: 5°C
Maksimum: 30°C
The possibility of setting the accumulation tank difference.
Technical instructions REGULATION PelTec / PelTec-lambda
Temperatures (accumulation tank -- 2 indirect heating circuits)
S ( CONFIGURATION
1.
Buffer tank temp.
2.
Min buf.tank temp
3.
Diff. buf. tank temp.
BUF--IHC2X)
41
