Network
............................................................................................................................................................................................................................................................

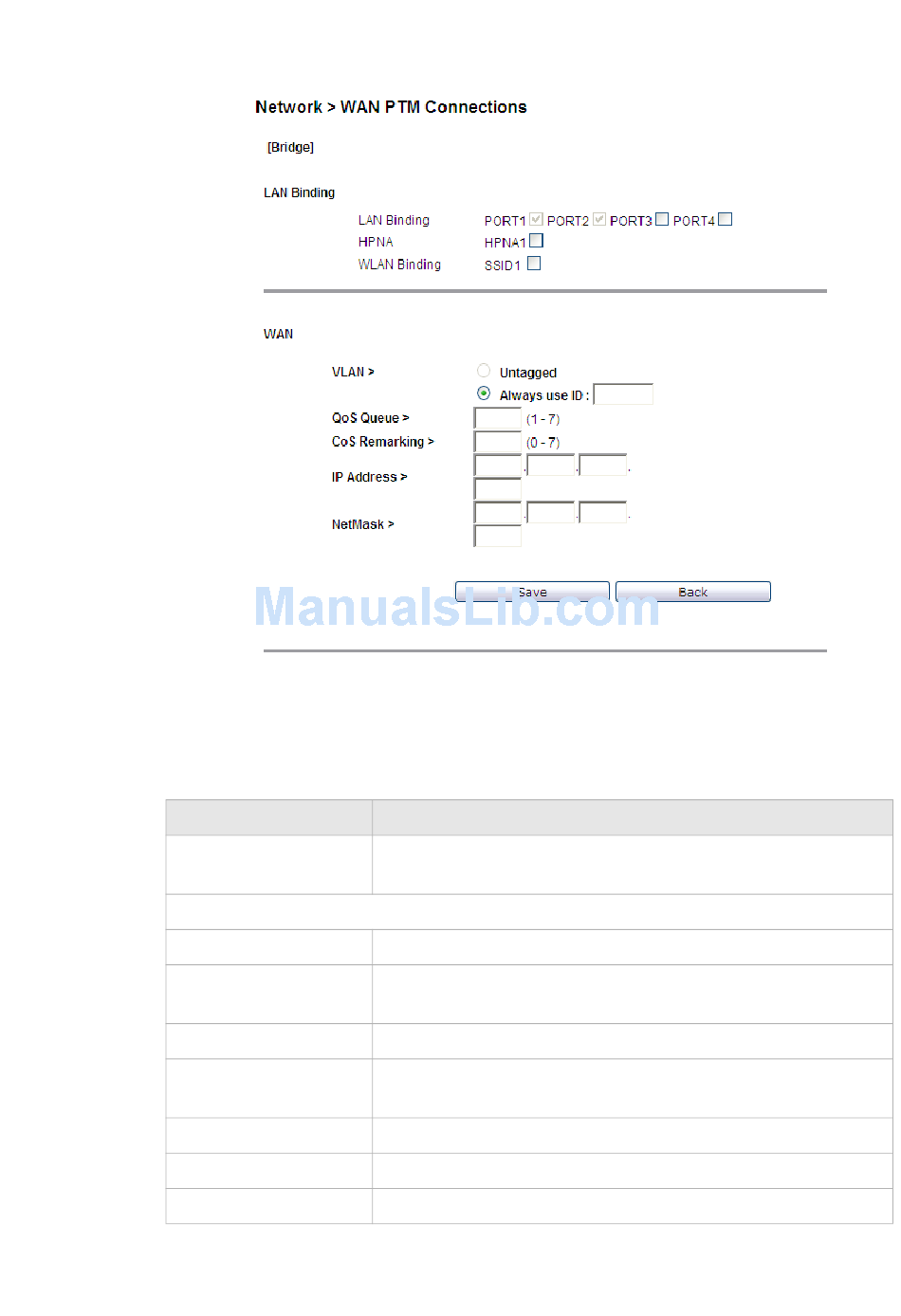

Figure 6-7 Bridge Mode settings window with Port Based binding
Table 6-7
binding.
Table 6-7 Field descriptions
Fields
LAN Binding
WAN
Untagged
Always Use ID
QoS Queue
CoS Remarking
IP Address
NetMask
Save
............................................................................................................................................................................................................................................................
3EQ-10422-AAAA-TCZZA
Edition 01 February 2011
describes the fields of the Bridge Mode setting window with Port Based
Description
Select LAN port, HPNA(Only for 6Vz.A4111) port and WLAN port
to bind the connection.
Select this option if VLAN ID is not being used.
Select this option if VLAN ID is used and enter the VLAN ID
number (between 2 and 4094)
Enter a queue number (0 to 7) to assign to the incoming traffic.
Enable New Cos Value to assign CoS (class of service) for
incoming traffic.
Enter the given IP address for your connection.
Enter the subnet mask for your connection.
Click to save your setting.
