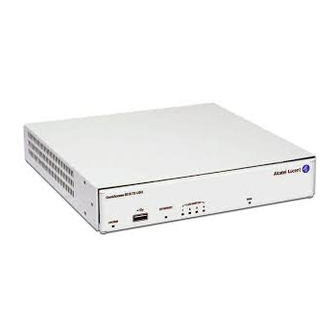

OmniAccess 5510
Unified Services Gateway
Getting Started Guide
1
2
Release 2.2-R03, 2.2-R04, 2.3.2
Notes on numbered items on banner & legal pages
1
u26801 West Agoura Road
Calabasas, CA 91301
(818) 880-3500
FAX (818) 880-3505
support@ind.alcatel.com
Beta
US Customer Support—(800) 995-2696
International Customer Support—(818) 878-4507
Internet—service.esd.alcatel-lucent.com
Website: www.alcatel-lucent.com
Part No: 060269-00, Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OmniAccess 5510 and is the answer not in the manual?

Questions and answers

Related Manuals for Alcatel-Lucent OmniAccess 5510

Summary of Contents for Alcatel-Lucent OmniAccess 5510

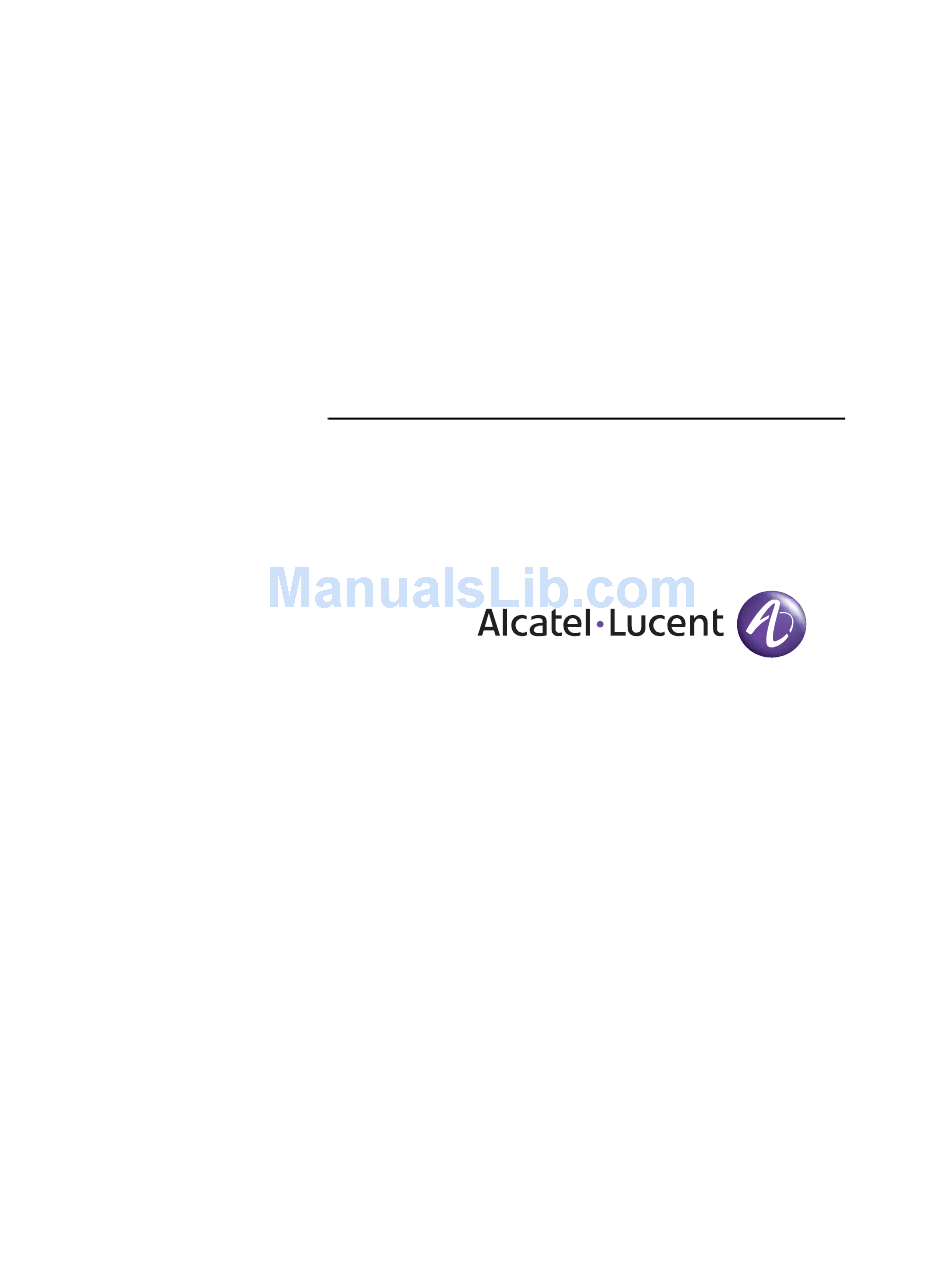

  • Page 1 Do not import other template elements such as page layout. To return to the draft version, import color def’ns from draft-colors.fm. To switch to the beta version, import color def’ns from beta-colors.fm OmniAccess 5510 Unified Services Gateway Getting Started Guide Release 2.2-R03, 2.2-R04, 2.3.2...
  • Page 2 The following information is for the Users of the OmniAccess 5510 Unified Services Gateway: If it is not installed in accordance with the installation instructions, it may not function exactly to the said specifications.

  • Page 3: Table Of Contents

    Package Contents........................1 Required Tools and Equipment ..................2 Connecting AC Input Power...................... 3 Connecting to the OmniAccess 5510 USG Console Port ............4 Starting the OmniAccess 5510 USG..................6 Performing Basic Configuration Tasks..................9 Accessing the OmniAccess 5510 USG Through CLI ............
  • Page 4 List of Figures Connecting the Power Brick on OmniAccess 5510 USG 3 Connecting to the OmniAccess 5510 USG Console 4...
  • Page 5 List of Tables Console Properties 5 OmniAccess 5510 USG System LED Status 6...

  • Page 6: Package Contents

    OmniAccess 5510 USG Overview OmniAccess 5510 USG Overview The OmniAccess 5510 USG is designed to provide most commonly used network services, such as routing, switching, wide area network (WAN) connectivity, network security with firewall, and related services using a non-modular platform providing ethernet switching and a single WAN interface.

  • Page 7: Required Tools And Equipment

    Warning: Only trained and qualified personnel should be allowed to install or replace the OmniAccess 5510 USG. Refer to the warnings and safety notes that are given in the “OmniAccess 5510 Unified Services Gateway Hardware Users Guide” provided with this device.

  • Page 8: Connecting Ac Input Power

    This section provides the procedures for connecting AC-input power to the OmniAccess 5510 USG. Note: The OmniAccess 5510 USG installation must comply with all the applicable codes. All the hardware materials used should be of compatible material and preclude loosening, deterioration, and electro-chemical corrosion of hardware and joined material.

  • Page 9: Connecting To The Omniaccess 5510 Usg Console Port

    Step 1: Connect the RJ-45 end of the console cable to the rear panel console port on the OmniAccess 5510 USG and the DB-9 end to the serial port (COM) on your computer/terminal. Step 2: Start your terminal emulation software.
  • Page 10 Except on the first page, right running head: Heading1 or Heading1NewPage text (automatic) Connecting to the OmniAccess 5510 USG Console Port Step 3: Set the console session as follows: Table 1: Console Properties Parameter Value Baud rate 9600 Parity None...

  • Page 11: Starting The Omniaccess 5510 Usg

    After installing OmniAccess 5510 USG and connecting cables, follow the procedure given below to start the system: Step 1: Before you power ON the OmniAccess 5510 USG, check the following: • Ensure that the power supply chassis connector is securely inserted into the chassis and secured.
  • Page 12 Enter the new password for superadmin: The following is an example of the bootup message on an OmniAccess 5510-SR USG: U-Boot 1.1.3 (Rev 2.0) (Mar 11 2009 - 19:52:49) OmniAccess 5510 Press Ctrl-C for Boot Options : Loading system Images...
  • Page 13 Press Ctrl-C for Boot Options : Loading system Images... ################################################################### ################################################################### ######################################################################## Alcatel-Lucent Software, Version 2.3.2, Build 11, for OmniAccess 5510 Copyright (c) 2003-2009 by Alcatel-Lucent Inc. Built on Thu Jul 2 10:50:30 IST 2009 ######################################################################## OmniAccess 5510-ADSL Installing image package...

  • Page 14: Performing Basic Configuration Tasks

    Chapter name (automatic) Performing Basic Configuration Tasks ERFORMING ASIC ONFIGURATION ASKS Once you boot OmniAccess 5510 USG and connect to the console, you can start configuring it either through the Command Line Interface (CLI). 5510 USG T CCESSING THE CCESS HROUGH The CLI is the primary interface to access the OmniAccess 5510 USG through the console.
  • Page 15 Example: ALU# configure terminal ALU(config)# The above steps are to be followed to configure the OmniAccess 5510 USG via the console. Step 5: To configure the system remotely (Telnet, SSH), you need to configure basic Authentication, Authorization, and Accounting (AAA) configuration. AAA is a...
  • Page 16 ALU(config)# interface FastEthernet 0 ALU(config-interfaceFastEthernet0)# (For more information on configuring interfaces, refer to the ‘The Command Line Interface’ chapter in the OmniAccess 5510 Unified Services Gateway CLI Configuration Guide.) Step 9: Administratively bring up the interface by using the ‘no shutdown’...
  • Page 17 Step 12: Enable HTTP & HTTPS for web-based management. • HTTP is the primary protocol used to transfer files over the World Wide Web. You can access the OmniAccess 5510 USG using HTTP through a web browser after being authenticated. http {enable|disable}...
  • Page 18 Except on the first page, right running head: Heading1 or Heading1NewPage text (automatic) Performing Basic Configuration Tasks The following is an example of the show chassis command on an OmniAccess 5510- SR USG: ALU(config)#> show chassis Physical inventory at Mon Apr 6 15:35:59 2009...
  • Page 19 Configuration will be lost if the system is rebooted without saving running configuration. For further configuration of your OmniAccess 5510 USG, refer to the “OmniAccess 5510 Unified Services Gateway CLI Configuration Guide” available for download. Refer to the Product Documentation Card for instructions.

  • Page 20: Accessing The Omniaccess 5510 Usg Through Gui

    Follow the procedure given below to access and configure the OmniAccess 5510 USG through GUI. Note: To access the OmniAccess 5510 USG through GUI, an interface must be configured in your system. Step 1: Configure IP address of an interface.
  • Page 21 Left running head: Chapter name (automatic) Alcatel-Lucent OmniAccess 5510 Unified Services Gateway Getting Started Guide Beta Beta...
