edge of ADC sampling clock after the trigger condition was
met.
When the count reaches 0, the counter stops and PCI-9812/10
starts to acquire data.

5.4 A/D Clock Source Control

The AD clock source determines how the board regulates the
timing of conversions when acquiring multiple samples from a
single channel or from a group of multiple channels. The A/D clock
sources on the PCI-9812 must use a pacer clock but not single
shot as the A/D converters are in a pipelined structure, which
require eight conversion clocks to complete the conversion of
digital data.

A/D Clock Sources

The A/D converters operate under the paced mode, which uses
pacer clock for A/D conversion at a fixed rate. PCI-9812/10
supports three clock sources for analog input conversion:
Internal A/D pacer clock (default);
External sine wave clock;
External square clock.
These three clock sources are described below:

Internal Pacer Clock

An onboard timer / counter is used as the internal A/D pacer clock.
The frequency of the pacer is software controllable. The maximum
pacer signal rate is 40Mz/2=20MHz, that is also the maximum
sampling rate of PCI-9812/10. Note that 40MHz is the onboard
Operation Theory

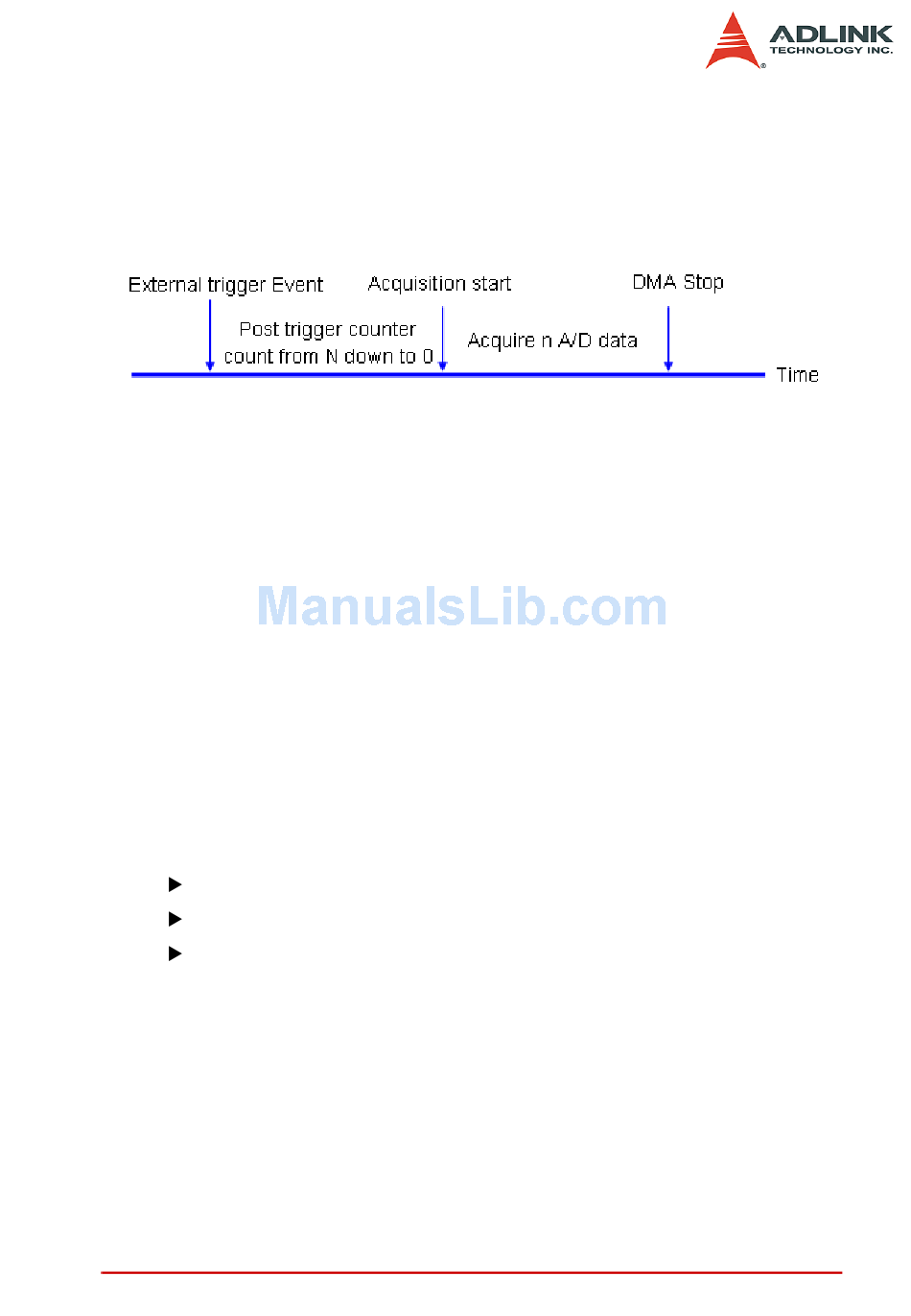

Figure 5-4: Delay Trigger Acquisition
