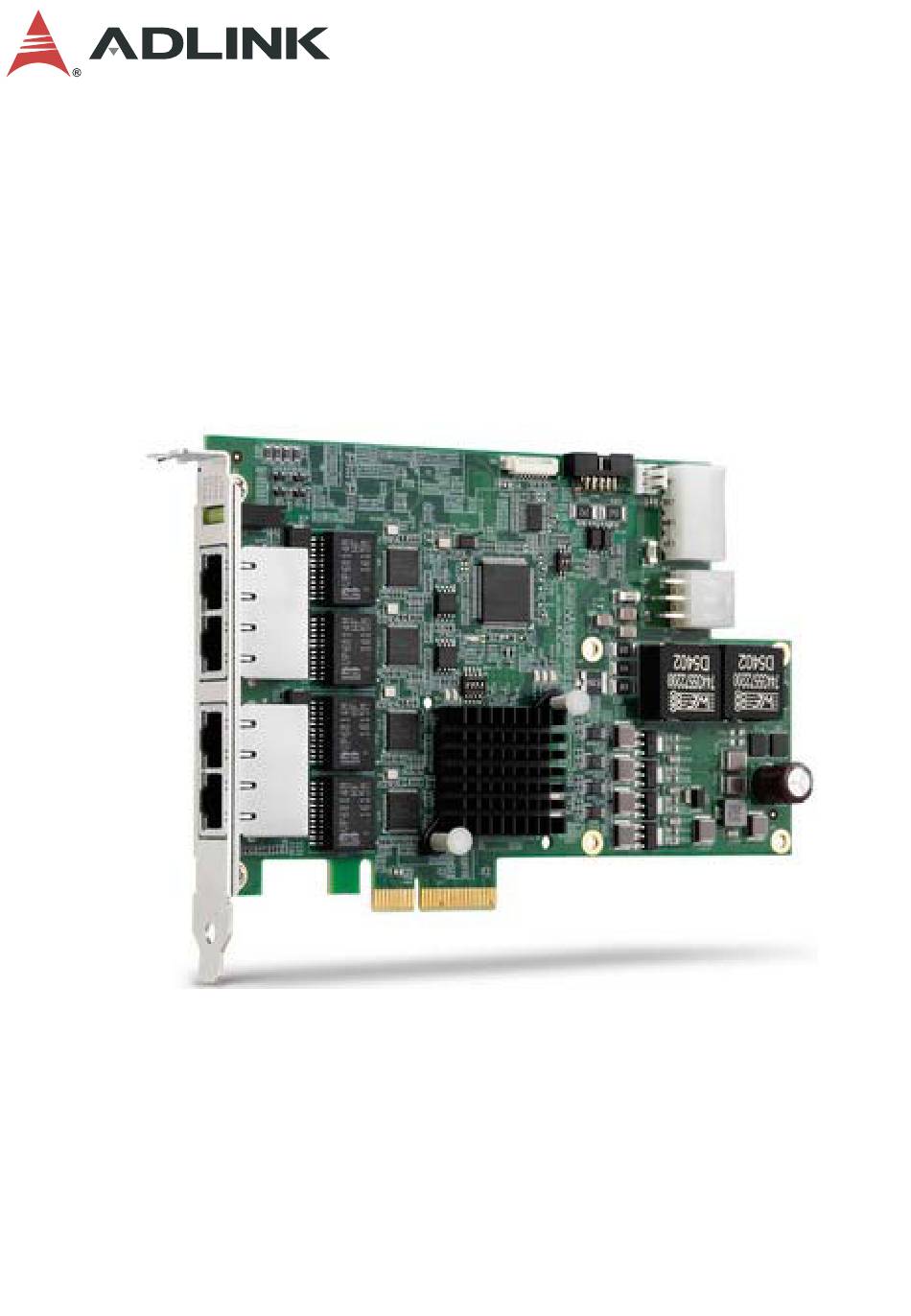

- Page 1 PCIe-GIE7x Series PCIe-GIE72/PCIe-GIE72 PRO PCIe-GIE74/PCIe-GIE74 PRO 2/4CH PCI Express® GigE Vision PoE+ Frame Grabber Manual Rev.: Revision Date: July 26, 2017 Part No: 50-11177-2010 Leading EDGE COMPUTING...
-
Page 2: Revision History
Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) 2.00 Oct. 26, 2016 Initial release Updated format, added ToE, License July 26, 2017 content... -
Page 3: Preface
PCIe-GIE7x Preface Copyright 2017 ADLINK Technology, Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 Leading EDGE COMPUTING Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
-
Page 5: Table Of Contents
PCIe-GIE7x Table of Contents Revision History..............ii Preface ..................iii List of Figures ............... vii List of Tables................ix 1 Introduction ................ 1 Overview................1 Features................2 Applications ................. 2 Specifications............... 3 Power over Ethernet ............5 1.5.1 PoE vs. PoE+ ............. 5 1.5.2 PoE Protection............ - Page 6 Leading EDGE COMPUTING 1.8.9 Onboard LED Status Indicators ........ 23 1.8.10 Onboard Trigger-in Connector (CN6) ....... 25 1.8.11 I/O Bracket Trigger Connector........25 2 Getting Started ..............27 Unpacking Checklist ............27 Installation................27 Important Safety Instructions..........29 Getting Service ..............33 Table of Contents...
-
Page 7: List Of Figures
PCIe-GIE7x List of Figures Figure 1-1: PCIe-GIE74/PCIe-GIE74 PRO PCB Top Layout... 11 Figure 1-2: PCIe-GIE74/PCIe-GIE74 PRO PCB Underside Layout. 12 Figure 1-3: PCIe-GIE74/PCIe-GIE74 PRO Side View ..... 12 Figure 1-4: PCIe-GIE74/PCIe-GIE74 PRO I/O ........ 13 Figure 1-5: PCIe-GIE72/PCIe-GIE72 PRO PCB Top Layout... 14 Figure 1-6: PCIe-GIE72/PCIe-GIE72 PRO PCB Underside Layout. - Page 8 Leading EDGE COMPUTING This page intentionally left blank. viii List of Figures...
-
Page 9: List Of Tables
PCIe-GIE7x List of Tables Table 1-1: PoE and PoE+ Parameters ..........5 Table 1-2: Over- and Undervoltage Protection Parameters....6 Table 1-3: Icut Per PoE class ............6 Table 1-4: Overtemperature Protection (OTP) Parameters ....7 Table 1-5: Available Power per PoE Class ........8 Table 1-6: PoE Port Priority .............. - Page 10 Leading EDGE COMPUTING This page intentionally left blank. List of Tables...
-
Page 11: Introduction

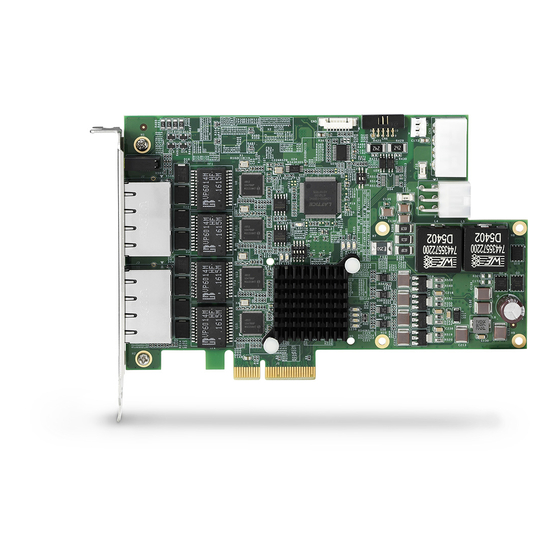

PCIe-GIE7x Introduction 1.1 Overview ADLINK's PCIe-GIE7x Series features PCI Express® x4 lane GigE Vision PoE+ (Power Over Ethernet Plus, IEEE 802.3at) frame grabbers supporting 2/4CH independent Gigabit Ethernet ports for multiple GigE Vision connections with data transfer up to 1 Gb/s per port. The PCIe-GIE7x's PoE+ offers up to 30W PoE power and auto- matic detection for stable and reliable connection between PoE, PoE+, or non-PoE cameras and frame grabbers, reducing costs,... -
Page 12: Features
Leading EDGE COMPUTING 1.2 Features PCI Express® x4 compliant Supports 2/4 independent Gigabit Ethernet ports IEEE 802.3at for PoE+ (Power over Ethernet Plus) 50 to 57V, 30W per port Up to 20/61.6/120W PoE power supply from PCIe bus or 4- pin/6-pin Molex connector ... -
Page 13: Specifications
PCIe-GIE7x The PCIe-GIE7x Series Function Library Reference can be downloaded from the product’s pages at http://www.adlink- tech.com NOTE: NOTE: Support for total PoE power up to 120W is only available on the PCIe-GIE74 PRO NOTE: NOTE: 1.4 Specifications PCIe-GIE72 PCIe-GIE74 PCIe-GIE72 PCIe-GIE74 PCI Express... - Page 14 Leading EDGE COMPUTING PCIe-GIE72 PCIe-GIE74 PCIe-GIE72 PCIe-GIE74 Physical Dimensions 167.6 W x 106.6 H mm (6.6 x 4.2 in.) 0°C to 70°C when PoE power is 20W and 61.6W Operating Temperature 0°C to 40°C when PoE power is 120W Storage -40°C to 85°C...
-
Page 15: Power Over Ethernet
PCIe-GIE7x PCIe-GIE72 PCIe-GIE74 PCIe-GIE72 PCIe-GIE74 Max 120W for both 4- PoE Power w/ Max 61.6W for 4-pin (+12V@6A) or 6- Molex pin (+12V@6A) (+12V@6A) Connector and 6-pin (+12V@6A) 1.5 Power over Ethernet The PCIe-GIE7x Series’ PoE (Power over Ethernet) specification enables the PCIe-GIE7x to act as power sourcing equipment (PSE), providing power through a twisted-pair Ethernet connection to a powered device (PD), such as a GigE Vision camera, IP... -
Page 16: Poe Protection
Leading EDGE COMPUTING 1.5.2 PoE Protection The PCIe-GIE7x provides PoE Protection from undervoltage, overvoltage, overcurrent, overheating, and budget overages. Under- and Overvoltage PoE output is monitored and power supply to the PD interrupted when any output exceeds OVP (Over Voltage Protection) or falls below UVP (Under Voltage Protection) limits. -
Page 17: Poe Power Management
PCIe-GIE7x Overtemperature Protection Two trigger temperatures, HT (High Temperature) and LT (Low Temperature) respectively can be preset. When HT is reached, the PCIe-GIE7x automatically shuts down PoE power until the temperature sensor falls below LT. While default values of HT and LT are 130˚C and 90˚C respec- tively, they can be changed via PoE Power Management SDK or Utility, with available range of HT 80 to 130˚C, and LT 70 to 120˚C. -
Page 18: Table 1-5: Available Power Per Poe Class
Leading EDGE COMPUTING Due to inherent cable resistance, voltage drops along the length of the cable result in power loss to the remote PD. For example, although the PCIe-GIE7x, upon detection of a Class NOTE: NOTE: 3 device, provides up to 15.4W of power, on a full 100m cable, a maximum of only 12.95W will be available to the remote PD. -
Page 19: Toe (Trigger Over Ethernet) With Gige Vision Action Command
PCIe-GIE7x PoE Power 4-pin 12V 6-pin 12V 4-pin 12V connector/ PCIe slot Source connector connector 6-pin 12V connector 120W Budget 61.6W 61.6W (PCIe-GIE74 PRO only) Table 1-7: PoE Power Budget Power Management SDK and Utility The ADLINK Power Management SDK and Utility are standard and ready to use with the PCIe-GIE7x Series, with no additional licensing required. -
Page 20: Toe With Action Command Settings
Leading EDGE COMPUTING the external trigger signal by firmware and actual transmission of the action command is a constant latency with no variation or jitter. 1.6.2 ToE with Action Command Settings One action command can be pre-defined for each channel of the PCIe-GIE7x PRO, with two corresponding actions normally able to be pre-defined in the GigE Vision camera. -
Page 21: Layout, I/O And Indicators
PCIe-GIE7x ware vendors to reduce revenue loss from piracy and protect valu- able intellectual property. 1.8 Layout, I/O and Indicators All dimensions shown are in mm NOTE: NOTE: 1.8.1 PCIe-GIE74/PCIe-GIE74 PRO 167.65 111.15 106.65 98.4 Figure 1-1: PCIe-GIE74/PCIe-GIE74 PRO PCB Top Layout Introduction... -
Page 22: Figure 1-2: Pcie-Gie74/Pcie-Gie74 Pro Pcb Underside Layout
Leading EDGE COMPUTING Figure 1-2: PCIe-GIE74/PCIe-GIE74 PRO PCB Underside Layout POE switch (SW3) 4-pin 12V connector 6-pin 12V connector Card ID switch (SW1) RJ45 connectors x2 POE LED Trigger In connector Temperature sensor Table 1-9: PCIe-GIE74/PCIe-GIE74 PRO PCB Layout Legend Figure 1-3: PCIe-GIE74/PCIe-GIE74 PRO Side View Introduction... -
Page 23: Figure 1-4: Pcie-Gie74/Pcie-Gie74 Pro I/O
PCIe-GIE7x Figure 1-4: PCIe-GIE74/PCIe-GIE74 PRO I/O Introduction... -
Page 24: Pcie-Gie72/Pcie-Gie72 Pro
Leading EDGE COMPUTING 1.8.2 PCIe-GIE72/PCIe-GIE72 PRO 167.65 111.15 106.65 98.4 Figure 1-5: PCIe-GIE72/PCIe-GIE72 PRO PCB Top Layout Figure 1-6: PCIe-GIE72/PCIe-GIE72 PRO PCB Underside Layout Introduction... -
Page 25: Figure 1-7: Pcie-Gie72/Pcie-Gie72 Pro Side View
PCIe-GIE7x Trigger In connector 4-pin 12V connector POE switch (SW3) Card ID switch (SW1) RJ45 connector POE LED Temperature sensor Table 1-10: PCIe-GIE72/PCIe-GIE72 PRO PCB Layout Legend Figure 1-7: PCIe-GIE72/PCIe-GIE72 PRO Side View Introduction... -
Page 26: Figure 1-8: Pcie-Gie72/Pcie-Gie72 Pro I/O
Leading EDGE COMPUTING Figure 1-8: PCIe-GIE72/PCIe-GIE72 PRO I/O Introduction... -
Page 27: Ethernet Port
PCIe-GIE7x 1.8.3 RJ-45 Ethernet Port LED1 LED2 Figure 1-9: RJ-45 Ethernet Connector Signal MDI0+ (PoE_DCV+) MDI0- (PoE_DCV+) MDI1+ (PoE_DCV-) MDI2+ (PoE_DCV+) MDI2- (PoE_DCV+) MDI1- (PoE_DCV-) MDI3+ (PoE_DCV-) MDI3- (PoE_DCV-) Table 1-11: RJ-45 Ethernet Port Connector Signals Introduction... -
Page 28: Poe Status Leds
Leading EDGE COMPUTING Activity Status 10 Mbps LED1 Green 100Mpbs 10/100/1000 Yellow 1000Mbps No link LED2 Green Linked ACT/LINK Flashing green Data activity Table 1-12: RJ-45 Ethernet Port LED Indicators 1.8.4 PoE Status LEDs Port4 Port3 Port2 Port1 Figure 1-10: Status LEDs Four yellow LEDs, when lit, indicate PoE activity for the respec- tively labeled port. -
Page 29: Pin 12V Power Connector (Cn3)
PCIe-GIE7x 1.8.5 4 Pin 12V Power Connector (CN3) Figure 1-11: 4 Pin 12V Power Connector Signal +12V Table 1-13: 4 Pin 12V Power Connector Pin Assignment Introduction... -
Page 30: Pin 12V Power Connector (Cn4)
Leading EDGE COMPUTING 1.8.6 6 Pin 12V Power Connector (CN4) Figure 1-12: 6 Pin 12V Power Connector Signal Signal +12V Sense Table 1-14: 6 Pin 12V Power Connector Pin Assignment 1.8.7 Card ID Switch (SW1) Card ID default setting is 15 (0x1111). D I P Figure 1-13: Card ID Switch Definition... -
Page 31: Poe Switch (Sw3)
PCIe-GIE7x Card ID Table 1-16: Card ID Switch Legend 1.8.8 PoE Switch (SW3) Figure 1-14: PoE Switch Introduction... -
Page 32: Table 1-17: Poe Switch Settings
Leading EDGE COMPUTING Definition Switch ON: PoE Disable PoE HW Switch Switch OFF: PoE Enable (Default) Switch ON: PoE OFF @ Power On PoE Initial State Switch OFF: PoE ON @ Power On (Default) Table 1-17: PoE Switch Settings Introduction... -
Page 33: Onboard Led Status Indicators
PCIe-GIE7x 1.8.9 Onboard LED Status Indicators 9 LEDs on the front side of the PCIe-GIE7x indicate data stream for each port, as follows. 2 9 3 Figure 1-15: Onboard LED Indicators Introduction... -
Page 34: Table 1-18: Onboard Led Indicators Legend
Leading EDGE COMPUTING Activity Status Abnormal; PCIe switch downstream function is disabled 1/2/3/4 Flashing Normal (default) Abnormal; PCIe switch upstream function is disabled. 5/6/7/8 PCIe x4 Gen 2 Flashing PCIe x4 Gen 1 (default) Normal (default) Abnormal; PCIe switch has experienced an unexpected error Table 1-18: Onboard LED Indicators Legend Abnormal LED behavior may be the result of board damage, in which case contact your distributor or agent. -
Page 35: Onboard Trigger-In Connector (Cn6)
PCIe-GIE7x 1.8.10 Onboard Trigger-in Connector (CN6) BH_10_R2.0 Figure 1-16: Onboard Trigger-in Connector Definition COM_I (Isolated COM) Line1 Line2 Line3 Line4 COM_I (Isolated COM) COM_I (Isolated COM) COM_I (Isolated COM) COM_I (Isolated COM) COM_I (Isolated COM) Table 1-19: Onboard Trigger-in Connector Pin Assignment 1.8.11 I/O Bracket Trigger Connector PCIe-GIE72/4 PRO optional accessory. -
Page 36: Figure 1-17: I/O Bracket Trigger Connector
Leading EDGE COMPUTING Figure 1-17: I/O Bracket Trigger Connector Definition COM_I (Isolated COM) Line1 Line2 Line3 Line4 COM_I (Isolated COM) COM_I (Isolated COM) COM_I (Isolated COM) COM_I (Isolated COM) Table 1-20: I/O Bracket Trigger Connector Pin Assignment Introduction... -
Page 37: Getting Started
PCIe-GIE7x Getting Started 2.1 Unpacking Checklist Before unpacking, check the shipping carton for any damage. If the shipping carton and/or contents are damaged, inform your dealer immediately. Retain the shipping carton and packing materials for inspection. Obtain authorization from your dealer before returning any product to ADLINK. - Page 38 Leading EDGE COMPUTING 8. Power up the computer. The PCIe-GIE7x can be installed in a PCI Express x4, x8, or x16 slot. Please download the Intel® I210 driver from ADLINK (www.adlinktech.com) or Intel (downloadcenter.intel.com) NOTE: NOTE: Getting Started...
-
Page 39: Important Safety Instructions
PCIe-GIE7x Important Safety Instructions For user safety, please read and follow all instructions, Warnings, Cautions, and Notes marked in this manual and on the associated device before handling/operating the device, to avoid injury or damage. S'il vous plaît prêter attention stricte à tous les avertissements et mises en garde figurant sur l'appareil , pour éviter des blessures ou des dommages. - Page 40 Leading EDGE COMPUTING Never attempt to repair the device, which should only be serviced by qualified technical personnel using suitable tools A Lithium-type battery may be provided for uninterrupted backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type;...
- Page 41 PCIe-GIE7x BURN HAZARD Touching this surface could result in bodily injury. To reduce risk, allow the surface to cool before touching. RISQUE DE BRÛLURES Ne touchez pas cette surface, cela pourrait entraîner des blessures. Pour éviter tout danger, laissez la surface refroidir avant de la toucher.
- Page 42 Leading EDGE COMPUTING This page intentionally left blank. Important Safety Instructions...
-
Page 43: Getting Service
San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com... - Page 44 Leading EDGE COMPUTING This page intentionally left blank. Getting Service...
