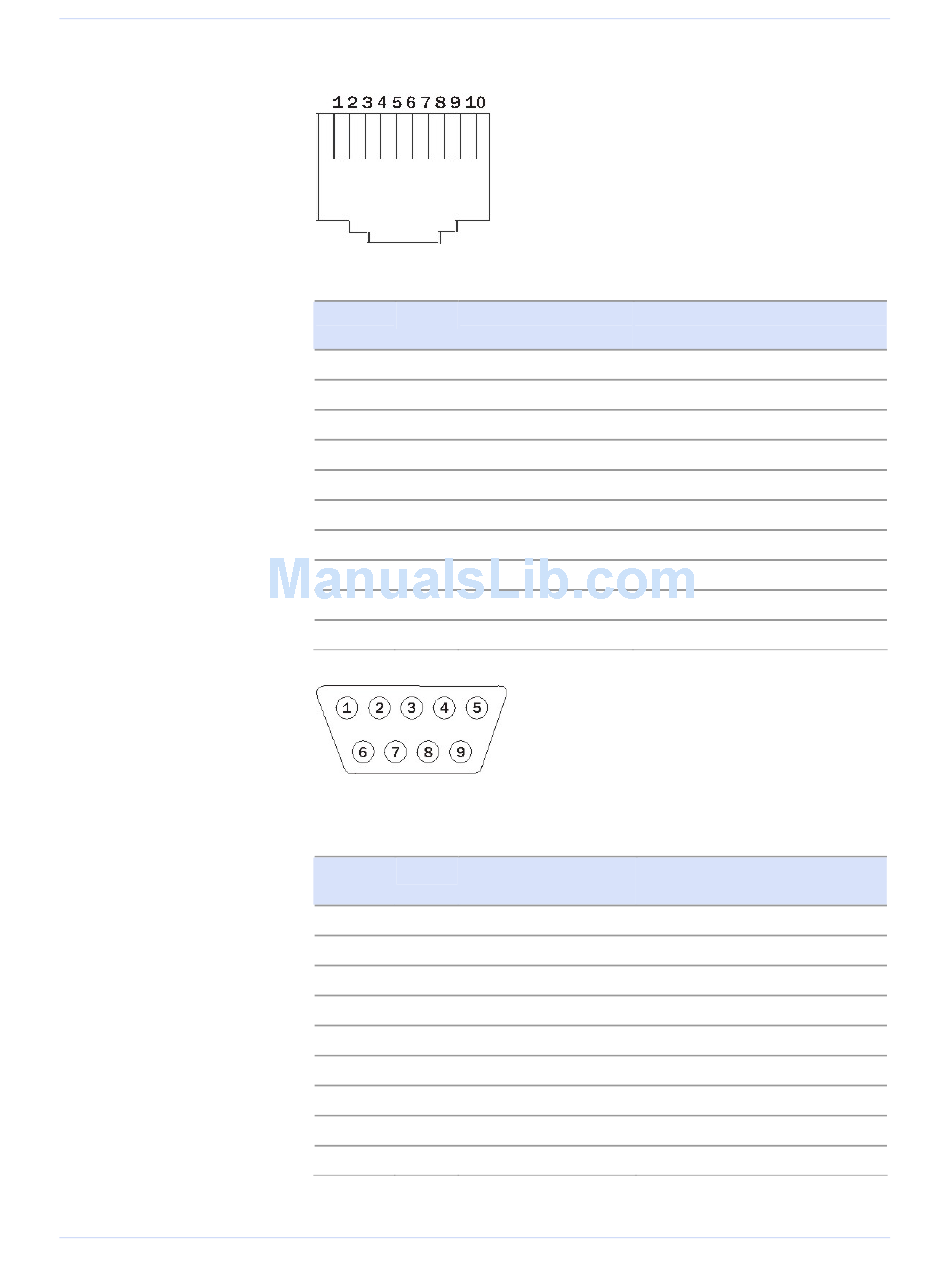

Signals:
RJ-45:
DB-9:
October 2006
View looking into
the connector
RS-232 Pin # RS-422/485 signal,
signal 4-wire mode
RI 1 TxD–
RTS 2 AuxOut+
DTR 3
AuxOut–
GND 4 GND
TxD 5
TxD+
RxD 6
RxD+
DCD 7
AuxIn–
DSR 8
RxD–
CTS 9
AuxIn+
N/C 10
N/C
View looking into
the connector
RS-232 Pin # RS-422/485 signal,
signal 4-wire mode
DCD 1 AuxIn–
RxD 2 RxD+
TxD 3 TxD+
DTR 4 AuxOut–
GND 5 GND
DSR 6 RxD–
RTS 7 AuxOut+
CTS 8 AuxIn+
RI 9 TxD–
940-0183-154
Appendix A
RS-422/485 signal,
2-wire mode
Transmit/Receive Data (Data–)
N/C
N/C
Signal Ground (GND)
Transmit/Receive Data (Data+)
N/C
N/C
N/C
N/C
N/C
RS-422/485 signal,
2-wire mode
N/C
N/C
Transmit/Receive Data (Data+)
N/C
Signal Ground (GND)
N/C
N/C
N/C
Transmit/Receive Data (Data–)
