Introduction

Locating serial and network ports

Serial port(s)
Note: The location of the serial
port(s) varies, depending on
the model.
Figure 3 and Tables 3 and 4
show the RS-232/422/485
DB-9 pinouts and
descriptions.
Note: Pins labeled NC are
indeterminate in two-wire mode
and should be left unconnected.
Page 10
SDS serial ports connect via cables to your serial device(s). The
number of these ports will vary depending on the SDS model. All SDS
models come with DB-9 serial port connectors. RS-232 "M" models
include adapter plugs to convert the DB-9 connectors to RJ-45
connectors. See Making connections on page 13 for directions on
connecting an SDS serial port to a serial device.
The following figures and tables show the serial port pinouts for RS-
232 and RS-232/422/485 applications.

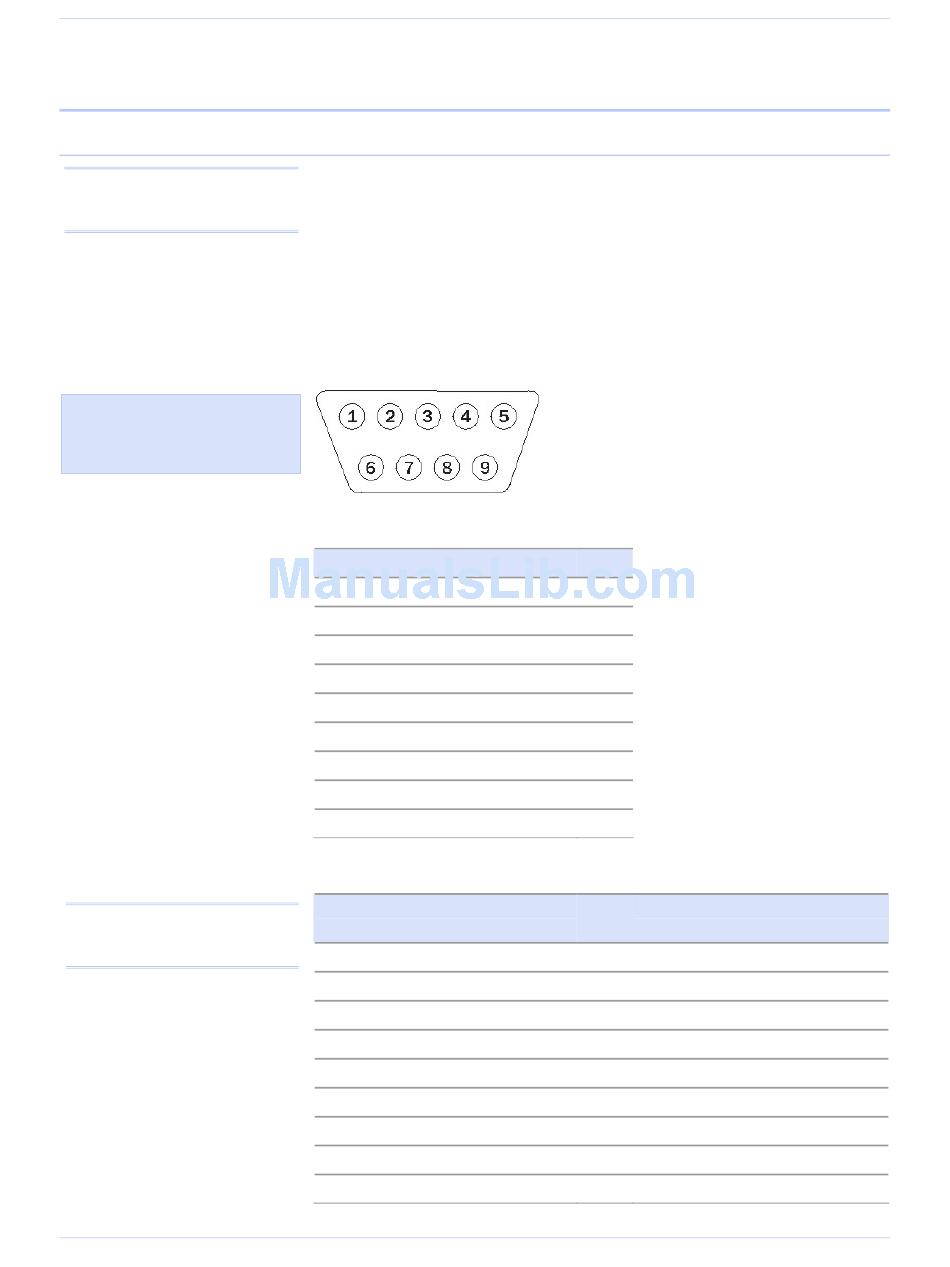

Figure 2 - DB-9 pinouts

signal

Table 3 - RS-232 signals on DB-9 connector

RS-232 signal description
Data Carrier Detect (DCD)
Receive Data (RxD)
Transmit Data (TxD)
Data Terminal Ready (DTR)
Signal Ground (GND)
Data Set Ready (DSR)
Request To Send (RTS)
Clear To Send (CTS)
Ring Indicator (RI)

Table 4 - RS-422/485 signals on DB-9 connector

RS-422/485 signal description
four-wire mode
Auxiliary Input (AuxIn–)
Receive Data (RxD+)
Transmit Data (TxD+)
Auxiliary Output (AuxOut–)
Signal Ground (GND)
Receive Data (RxD–)
Auxiliary Output (AuxOut+)
Auxiliary Input (AuxIn+)
Transmit Data (TxD–)
940-0183-154
Quatech SDS User's Manual
DB-9
1
2
3
4
5
6
7
8
9
DB-9 RS-422/485 signal description
two-wire mode
1 NC
2 NC
3 Transmit/Receive Data (Data+)
4 NC
5 Signal Ground (GND)
6 NC
7 NC
8 NC
9 Transmit/Receive Data (Data–)
October 2006
