Introduction
Network port
Figure 5 and Table 7 show the
Ethernet RJ-45 pinouts and
signal descriptions.
Page 12
All SDS devices have one eight-pin RJ-45 Ethernet port on the back
panel.

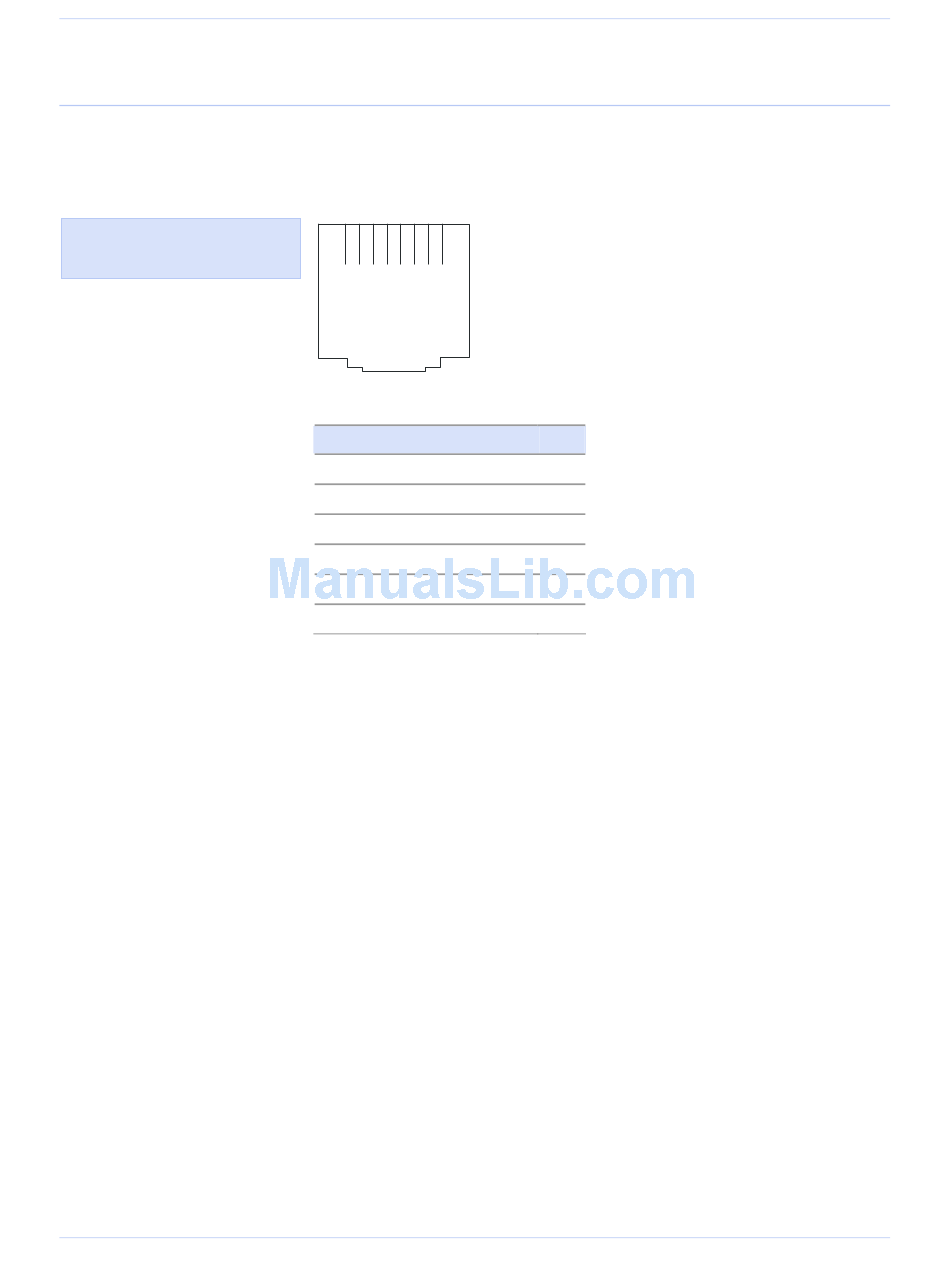

Figure 4 - RJ-45 Ethernet port pinout

1 2 3 4 5 6 7 8

Table 7 - RJ-45 Ethernet port signals

Ethernet signal description
Transmit Data (TxD+)
Transmit Data (TxD–)
Receive Data (RxD+)
No connection
Receive Data (RxD–)
No connection
940-0183-154
Quatech SDS User's Manual
RJ-45
1
2
3
4, 5
6
7, 8
October 2006
