Viewing The Serial Port Parameters; Setting Serial Port Parameters; Setting Normal Operating Mode Parameters; Figure 51 - Serial Port Status Screen - Quatech Device Server User Manual

Quatech SDS User's Manual

Viewing the serial port parameters

Step Procedure
Preliminary Select Serial Ports from the selection
Step bar and then select Serial Port Status
from the left panel.

Setting serial port parameters

Setting Normal operating mode parameters

Note: Normal is the standard
connection mode for an SDS.
Step Procedure
Preliminary Click on Serial Ports in the selection
Step bar.
October 2006

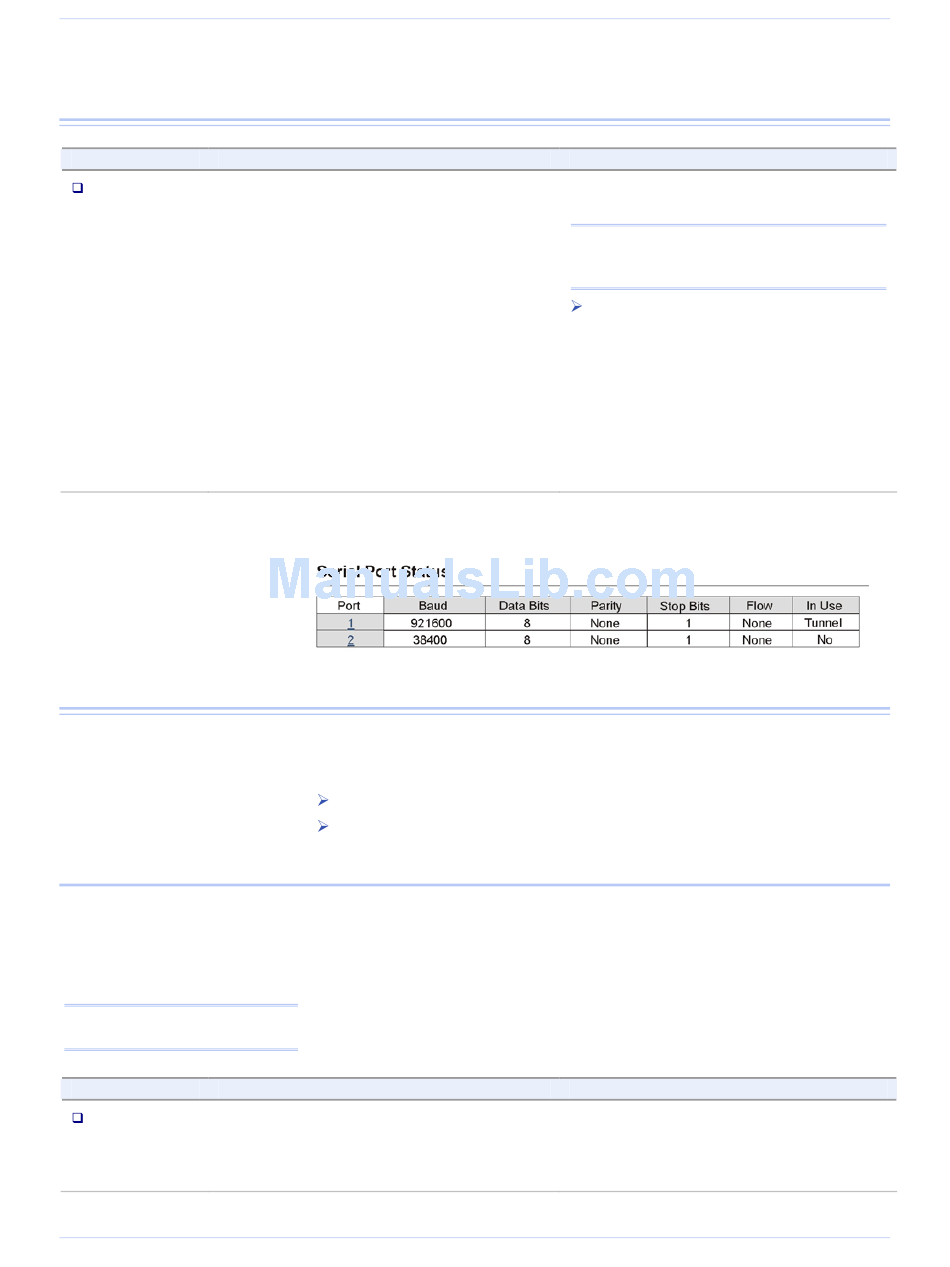

Figure 51 - Serial Port Status screen

In configuring your Serial Device Server's serial port parameters,
there are two main considerations:
Which operating mode should you use?
Is your serial port connection RS-232, RS-422 or RS-485?
This section explains how to set your RS-232 and RS-422/485 parameters
and also provides details on setting up your SDS in the Normal operating
mode. In the following sections, you'll find information on configuring your
SDS for Tunneling, Raw TCP, Auto TCP, and Raw UDP operating modes.
In most cases, you will use the Normal operating mode for your SDS.
This allows you to use either Quatech's virtual COM port drivers or the
IntelliSock SDK to communicate over a network.
940-0183-154
Configuring the SDS using a Web interface
Description
The Serial Port Status screen shown
on the following page displays.
Note: You cannot make any changes to
port parameters from this screen. To
adjust these settings, select the Setup link.
In Use indicates whether the port
has been opened by a serial port
application and so cannot be
opened by another user application.
If the port is open, In Use further
indicates whether the port is open
in Normal, Tunneling, Raw TCP,
Auto TCP, or Raw UDP mode.
Description
The Serial Port Setup screen shown on
the following page displays.
Page 55
