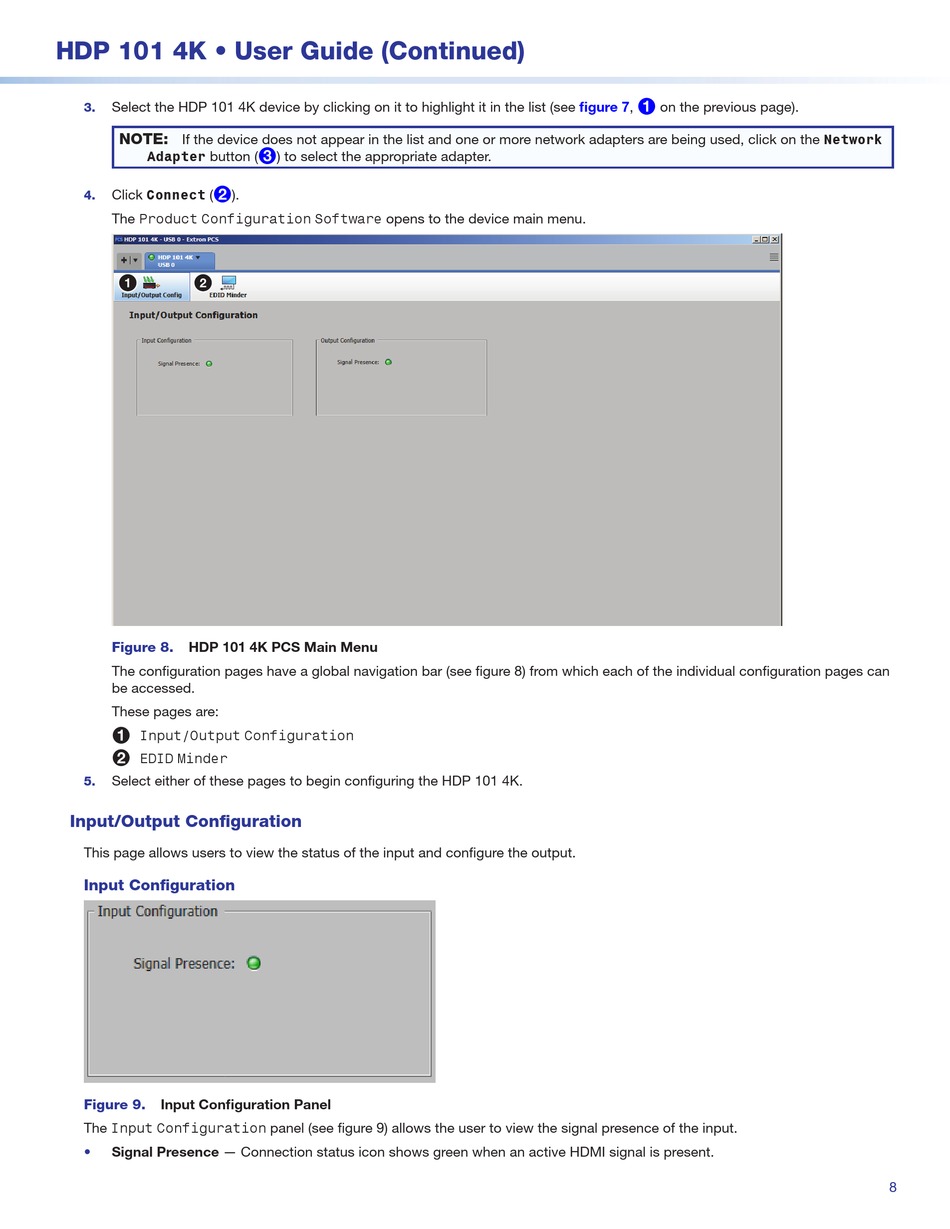

HDP 101 4K • User Guide (Continued)
Select the HDP 101 4K device by clicking on it to highlight it in the list (see figure 7,
3.
NOTE:
If the device does not appear in the list and one or more network adapters are being used, click on the Network
Adapter button (
Click Connect (
2
).
4.
The Product Configuration Software opens to the device main menu.
1
2
HDP 101 4K PCS Main Menu
Figure 8.
The configuration pages have a global navigation bar (see figure 8) from which each of the individual configuration pages can
be accessed.
These pages are:
1
Input/Output Configuration
2
EDID Minder
Select either of these pages to begin configuring the HDP 101 4K.
5.
Input/Output Configuration
This page allows users to view the status of the input and configure the output.
Input Configuration
Figure 9.
Input Configuration Panel
The Input Configuration panel (see figure 9) allows the user to view the signal presence of the input.
•
Signal Presence — Connection status icon shows green when an active HDMI signal is present.
3
) to select the appropriate adapter.
1
on the previous page).
8
