Summary of Contents for Extron electronics HAE 100
- Page 1 User Guide HDMI ® HAE 100 HDMI Audio Extractor 68-2027-01 Rev. A 02 11...
- Page 2 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. The (servicing) instructions in the literature provided with the equipment.
- Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Conventions Used in this Guide In this user guide, the following are used: TIP: A tip provides a suggestion to make setting up or working with the device easier. NOTE: A note draws attention to important information. CAUTION: A caution warns of things or actions that might damage the equipment. WARNING: A warning warns of things or actions that might cause injury, death, or other severe consequences.
-
Page 5: Table Of Contents
Introduction ..........Mounting ..........About this Guide ..........1 Tabletop Placement ........20 About the HAE 100 HDMI Audio Extractor ..1 Rack Mounting ..........20 Features ............2 UL Guidelines for Rack Mounting ....20 Rack Mounting Procedure ......21 Under-desk Mounting ........ -
Page 6: Introduction

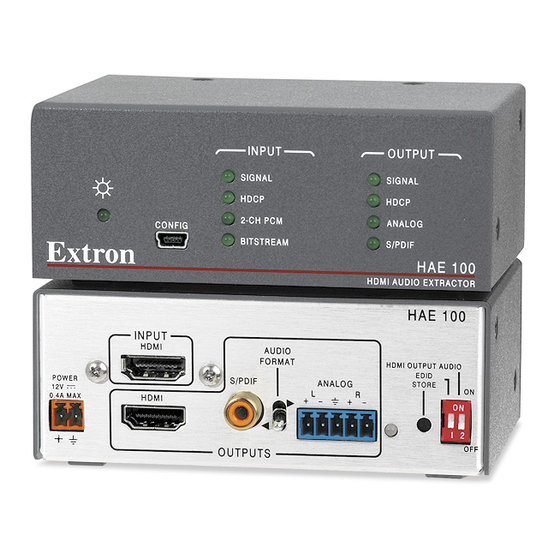

Introduction This section gives an overview of the user guide and describes the Extron HAE 100 HDMI Audio Extractor and its features. Topics that are covered include: About this Guide About the HAE 100 HDMI Audio Extractor Features About this Guide This guide contains installation, configuration, and operating information for the HAE 100 HDMI Audio Extractor. -
Page 7: Features
The product is HDCP compliant and supports HDMI 1.3 standards. The HAE 100 is housed in a 1U high, ¼ rack width, 3 inch deep metal enclosure. -
Page 8: Panels And Cabling
This section provides information on: Installation Overview Front Panel Features Rear Panel Features Installation Overview Make sure that the input source, the HAE 100, and all output devices are turned off. Disconnect all power sources. If necessary, mount the unit (page 20). -
Page 9: Front Panel Features
Front Panel Features The front panel of the HAE 100 is shown in figure 2 below. INPUT OUTPUT SIGNAL SIGNAL HDCP HDCP 2-CH PCM ANALOG CONFIG BITSTREAM S/PDIF HAE 100 HDMI AUDIO EXTRACTOR Figure 2. HAE 100 Front Panel Power LED — The LED indicator lights when the unit is receiving power. -
Page 10: Rear Panel Features
Rear Panel Features The rear panel of the HAE 100 is shown in figure 3. HAE 100 INPUT HDMI HDMI OUTPUT AUDIO AUDIO FORMAT EDID POWER STORE S/PDIF ANALOG 0.4A MAX HDMI OUTPUTS Figure 3. HAE 100 Rear Panel Power input — Connect the provided power supply to the 3.5 mm, 2-pole captive screw power receptacle (see figure 4). - Page 11 Audio Format toggle switch — This toggle switch is used to select the audio format that the HAE 100 will extract from the HDMI input signal. The position of this toggle switch also governs the EDID presented to the input source device.
- Page 12 If the incoming audio signal is bitstream (Dolby Digital or DTS), it may be necessary to set this switch to the Off (down) position since many display devices do not support these formats. HAE 100 HDMI Audio Extractor • Panels and Cabling...
-
Page 13: Edid Configuration
EDID Minder is built into this product, which provides EDID to the input source device. The EDID provided by the HAE 100 forces the source to output the correct audio format. The EDID can be communicated in two modes:... -
Page 14: Edid Configuration Table
After EDID Store has been enabled, the push button switch is used to record the EDID from the display device connected to the HDMI output of the HAE 100. Press and release the push button to initiate the EDID recording process. The EDID is stored in non-volatile memory and is retained even during a power cycle of the product. -
Page 15: Reference Information
The audio format selected with the Audio Format toggle switch is output from the source device incorrectly. The HAE 100 relies on EDID to “force” the source device to output the correct audio format. In a small percentage of source devices, the EDID may be ignored. In this case, the source device must be manually configured to output the desired audio format. -
Page 16: Specifications
"Front Panel Features" on page 4), disconnect the HDMI output device to see if the extracted audio stabilizes. Power cycle the HAE 100 and the connected HDMI devices, paying attention to the HDCP status LEDs. If the issue continues, call the Extron S3 Sales and Technical Support Hotline. - Page 17 EMI/EMC ......... CE, C-tick, FCC Class A, ICES, VCCI MTBF ..........30,000 hours Warranty ........3 years parts and labor NOTE: All nominal levels are at ±10%. NOTE: Specifications are subject to change without notice. HAE 100 HDMI Audio Extractor • Reference Information...
-
Page 18: Part Numbers And Accessories
RSU 126 (6 inches deep, 1U rack shelf kit) 60-190-10 RSB 126 (6 inches deep, 1U basic rack shelf) 60-604-11 RSU 129 (9.5 inches deep, 1U rack shelf kit) 60-190-01 RSB 129 (9.5 inches deep, 1U basic rack shelf) 60-604-02 HAE 100 HDMI Audio Extractor • Reference Information... -
Page 19: Firmware Updates
Downloading and Installing the Firmware Loader Software Extron recommends using the latest version of the Firmware Loader software to update the firmware on the HAE 100. If necessary, use the following procedure to download and install the Firmware Loader software. -
Page 20: Using Firmware Loader
Unless specified, the installer program places the Firmware Loader software at C:\Program Files\Extron\FWLoader Using Firmware Loader Use the following procedure to install firmware to the HAE 100 using Firmware Loader. For more information on Firmware Loader, access the help file by selecting Help > Help from the menu bar or by pressing the <F1>... - Page 21 Navigate to the HAE 100 firmware file using the file browser. Select the file and click (see figure 8). Open NOTE: The extension of the firmware file must be .s19. Figure 8. Choose Firmware File Window On the Add Device window, click...
-
Page 22: Sis Commands
Command and response examples are shown throughout the table. The ASCII to HEX conversion table, on the next page, is for use with the command/response table. HAE 100 HDMI Audio Extractor • SIS Commands... -
Page 23: Symbol Definitions
Native resolution and refresh rate (translated from EDID detailed timing I) X& EDID 256 bytes in HEX format Controller software version to the second decimal place ASCII to Hex Conversion Table Space • HAE 100 HDMI Audio Extractor • SIS Commands... -
Page 24: Command And Response Table For Sis Commands
View EDID in HEX format. R*EDID View information, part number, and firmware Request part number 60-xxxx-xx Query firmware version View firmware build with two decimals (for example, x.xx). Reset Reset Resets the unit. ZXXX HAE 100 HDMI Audio Extractor • SIS Commands... -
Page 25: Mounting
Mounting This section outlines the various mounting options available for HAE 100: Tabletop Placement Rack Mounting Under-desk Mounting Tabletop Placement Attach the four provided rubber feet to the bottom of the unit and place it in any convenient location. Rack Mounting... -
Page 26: Rack Mounting Procedure
RSU 129: 9.5 inches deep, 1U rack shelf kit (part number 60-190-01) RSB 129: 9.5 inches deep, 1U basic rack shelf (part number 60-604-02) To mount the HAE 100 on a rack shelf, follow the instructions provided with the shelf accessories. - Page 27 Extron Warranty ® Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
