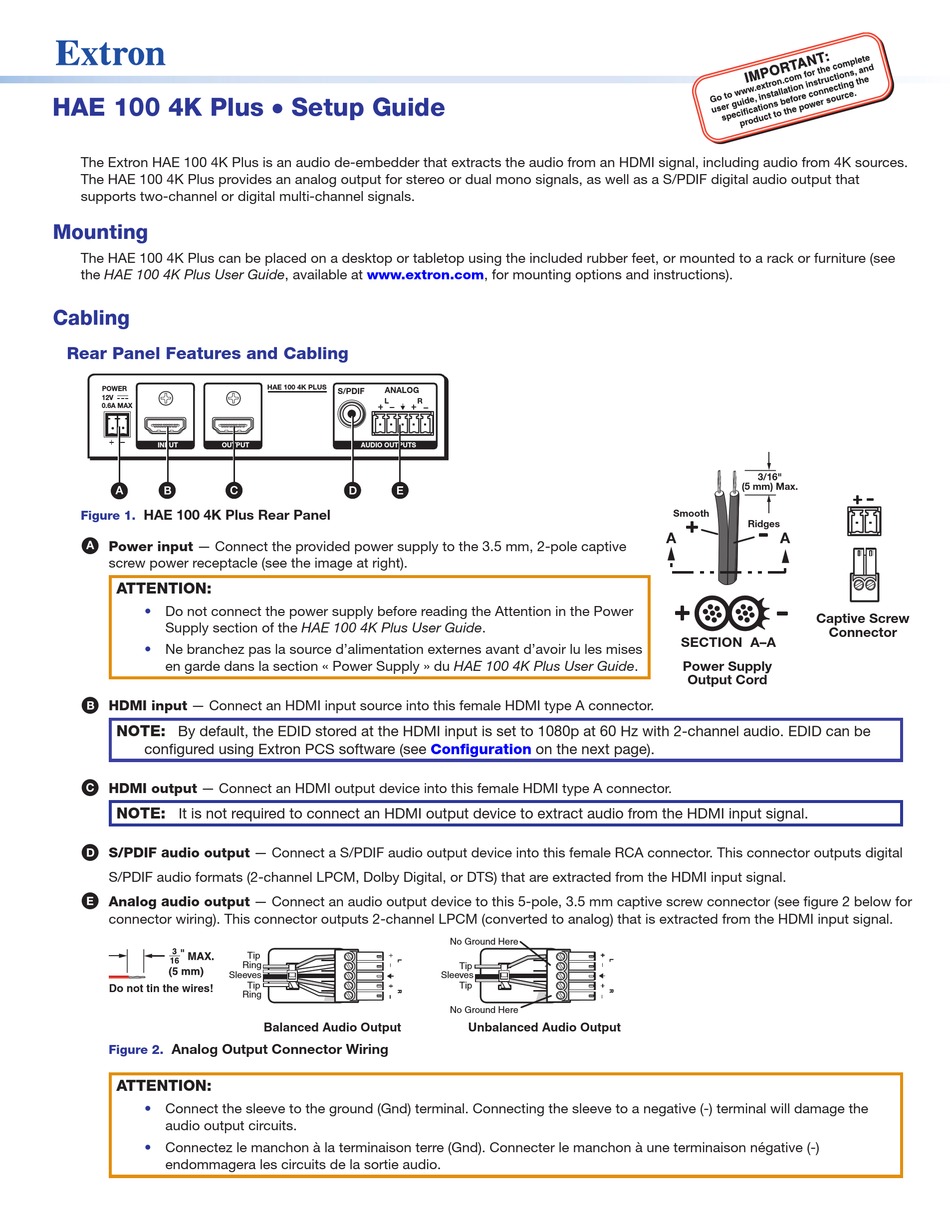

HAE 100 4K Plus • Setup Guide

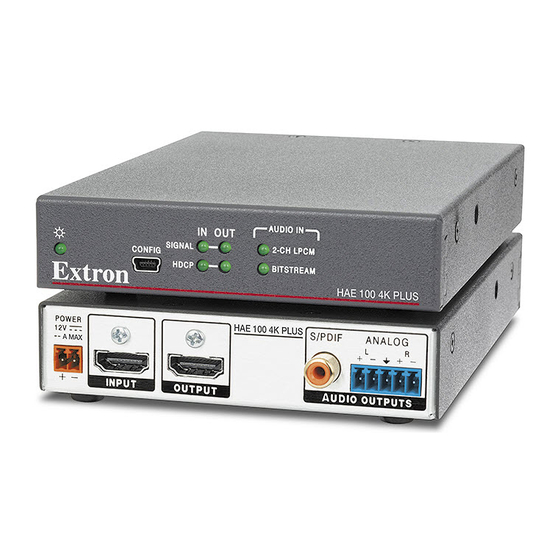

The Extron HAE 100 4K Plus is an audio de-embedder that extracts the audio from an HDMI signal, including audio from 4K sources.
The HAE 100 4K Plus provides an analog output for stereo or dual mono signals, as well as a S/PDIF digital audio output that
supports two-channel or digital multi-channel signals.

Mounting

The HAE 100 4K Plus can be placed on a desktop or tabletop using the included rubber feet, or mounted to a rack or furniture (see
the HAE 100 4K Plus User Guide, available at www.extron.com, for mounting options and instructions).

Cabling

Rear Panel Features and Cabling

POWER
12V
0.6A MAX
4K PLUS
INPUT
A A B B
HAE 100 4K Plus Rear Panel
Figure 1.
A
Power input — Connect the provided power supply to the 3.5 mm, 2-pole captive
screw power receptacle (see the image at right).
ATTENTION:
• Do not connect the power supply before reading the Attention in the Power
Supply section of the HAE 100 4K Plus User Guide.
• Ne branchez pas la source d'alimentation externes avant d'avoir lu les mises
en garde dans la section « Power Supply » du HAE 100 4K Plus User Guide.
B HDMI input — Connect an HDMI input source into this female HDMI type A connector.
NOTE: By default, the EDID stored at the HDMI input is set to 1080p at 60 Hz with 2-channel audio. EDID can be
configured using Extron PCS software (see
C
HDMI output — Connect an HDMI output device into this female HDMI type A connector.
NOTE: It is not required to connect an HDMI output device to extract audio from the HDMI input signal.
D S/PDIF audio output — Connect a S/PDIF audio output device into this female RCA connector. This connector outputs digital
S/PDIF audio formats (2-channel LPCM, Dolby Digital, or DTS) that are extracted from the HDMI input signal.
E
Analog audio output — Connect an audio output device to this 5-pole, 3.5 mm captive screw connector (see figure 2 below for
connector wiring). This connector outputs 2-channel LPCM (converted to analog) that is extracted from the HDMI input signal.
Do not tin the wires!
Analog Output Connector Wiring
Figure 2.
ATTENTION:
• Connect the sleeve to the ground (Gnd) terminal. Connecting the sleeve to a negative (-) terminal will damage the
audio output circuits.
• Connectez le manchon à la terminaison terre (Gnd). Connecter le manchon à une terminaison négative (-)
endommagera les circuits de la sortie audio.
HAE 100 4K PLUS
ANALOG
S/PDIF
L
OUTPUT AUDIO OUTPUTS
C C D D E E
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
R
Configuration on the next page).
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
3/16"
(5 mm) Max.
Smooth
Ridges
A A
Captive Screw
Connector
SECTION A–A
Power Supply
Output Cord
