Getting Started
3.7.1

Cash Drawer RJ12 Adapter Option

Some cash drawers may use a RJ12 connector instead of the DB15 connector. The RJ12
adapter (060437-1000) is available as an optional component for these applications.
3.8 AUX Option
The AUX port option or auxiliary port on the printer is for custom application support and for
optional sensor support.
3-6
RJ12 Wire Color
1 WHITE
2 BLACK
3 RED
4 GREEN
5 YELLOW
6 BLUE
Table 3-2 RJ12 Adapter Pin-out

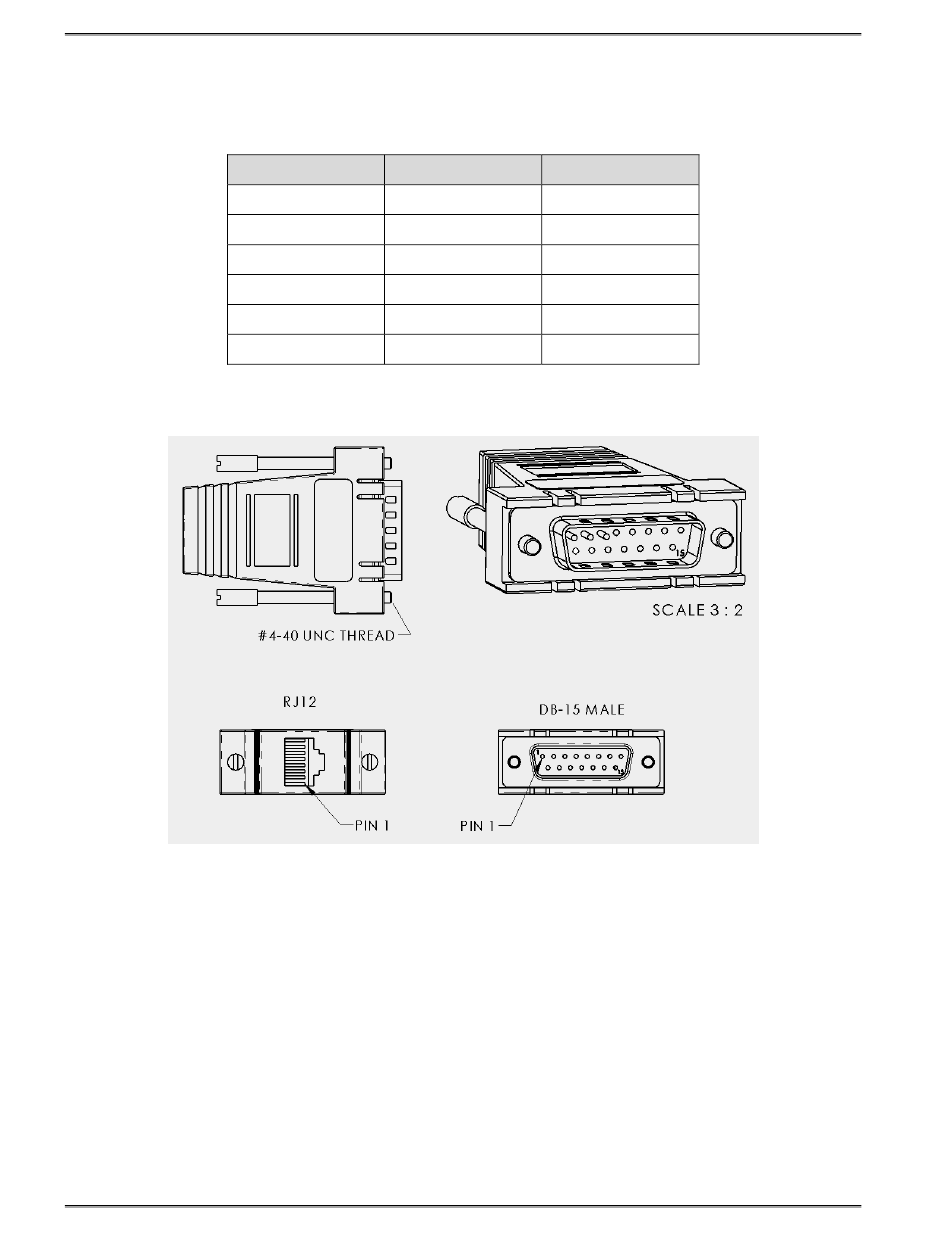

Figure 3-5 Cash Drawer RJ12 Adapter
DB-15
X
1
X
2
3
X
