General Operation
◆Switching the eBike System On/Off
To switch on the eBike system, hold the MODE button for 2s.
In the same way to hold the MODE button for 2s again, the eBike
system will be switched off.
When switching off the eBike system the leakage current is less
than 1 uA.
■
When parking the eBike for more than 10 minutes, the eBike system
switches off automatically.
◆Display Interface
After switching on the eBike system, the display shows Running
Speed and Total Distance except battery indicator and assistance level.

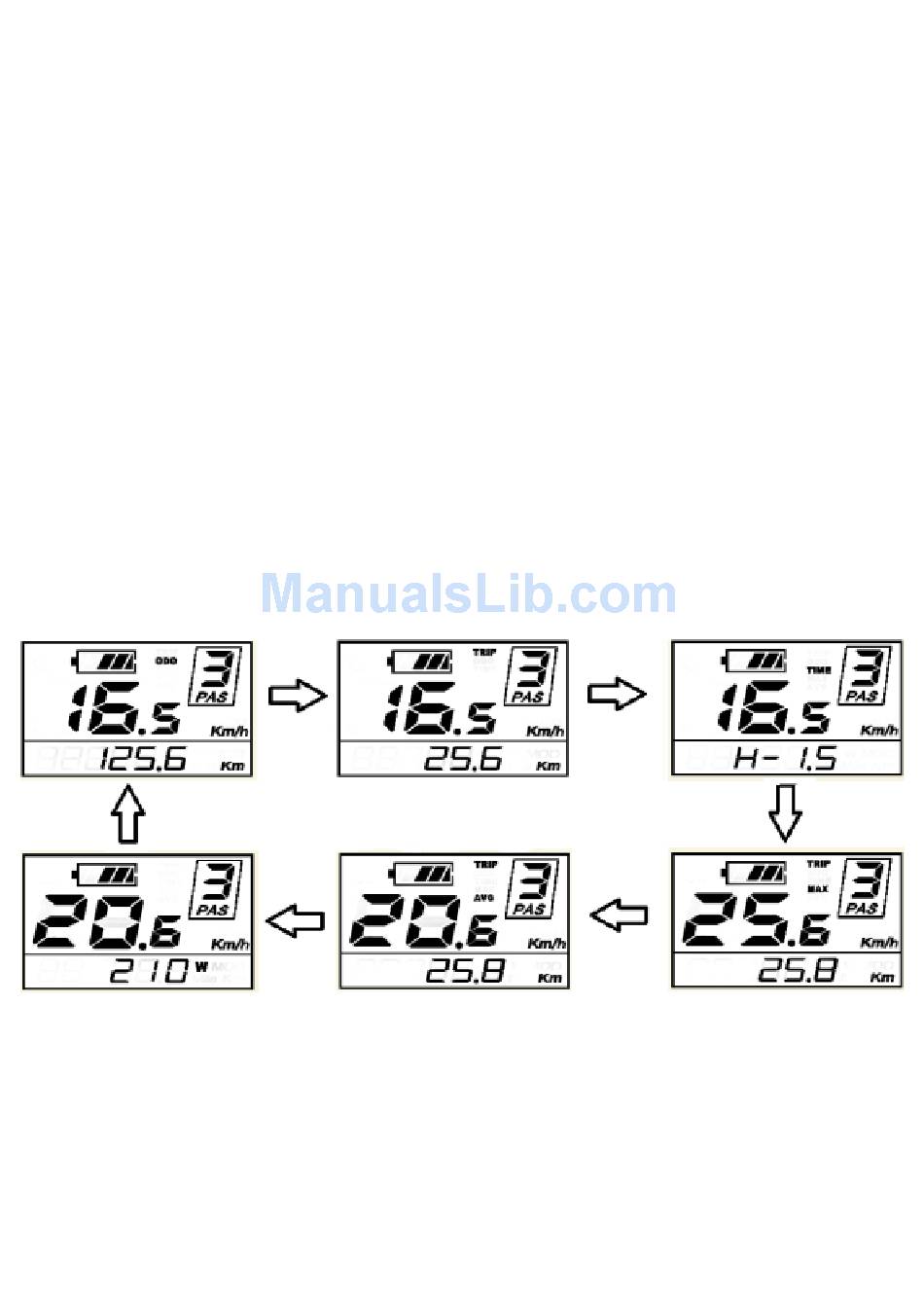

To change the indicated information, press the MODE button to
show in turn as below: Running Speed (Km/h) → Trip Distance (Km)
→Trip Time (Hour.) → Max Speed (Km/h) → Average Speed (Km/h) →
Motor Power (W) → Running Speed (Km/h).
◆Switching Push-assistance mode On/Off
To access the push-assistance mode, hold the DOWN button
always, the eBike will go on at a uniform speed of 6 Km/h, "P" is
showed on the screen at the same time. The push-assistance function
switches off as soon as you release the DOWN button.
3
