indicating contents are as following
●Smart Battery indicator
●Motor-output indication
●Assistance-level indication
●Speed indication (incl. running speed, max speed and average
speed)
●Trip distance and total distance
●The push-assistance function
●Trip time display of single
●The Lighting On/Off
●Error Code indication
●Various Parameters Settings (e.g. wheel size, speed-limited,
battery level bar, assistance level, controller limited current, max speed,
password enable, etc.)
●Recover Default Settings

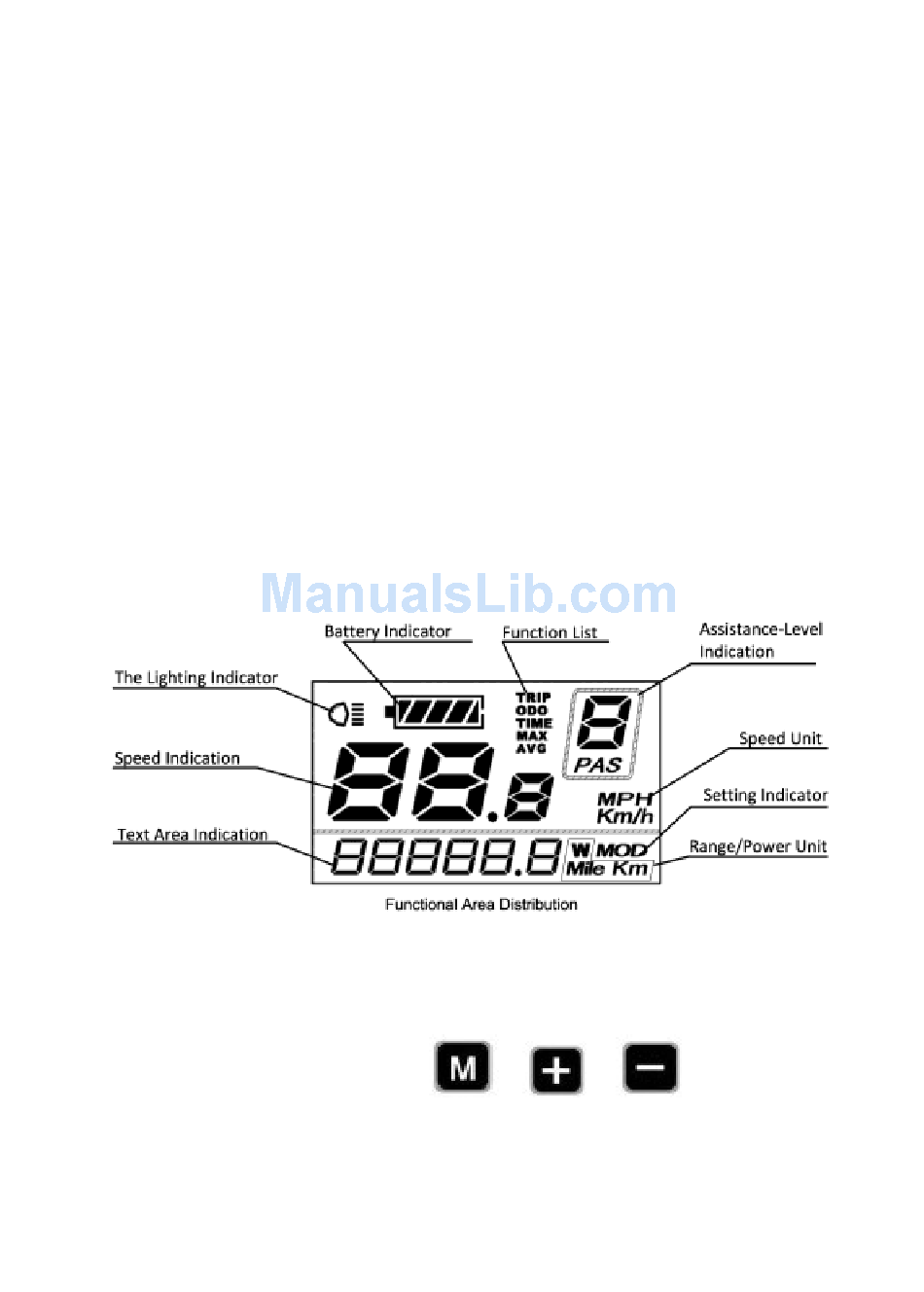

◆Functional Area Distribution
◆Button Definition
There are three buttons (
display that represented by the following functions respectively: MODE,
UP, DOWN.
,
,
2
) on the KD21C
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the KD21C and is the answer not in the manual?
Questions and answers
Speedometer stopped working.
Speedometer stopped working
To fix the speedometer on a Key-Disp KD21C, follow these steps:
1. Check Speed Sensor Settings – Ensure the speed sensor settings are correctly configured under the personalized parameter settings.
2. Verify Wheel Diameter – Ensure the correct wheel diameter is set in the display settings to ensure accurate speed readings.
3. Inspect Connections – Check the wiring connections between the display and controller to ensure they are secure and undamaged.
4. Look for Error Codes – If an error code appears, refer to the error code list and address any abnormalities.
5. Reset to Default Settings – If the issue persists, restore default settings under the display's settings menu.
6. Check Power Supply – Ensure the display and e-bike system are powered correctly.
7. Avoid Modifying System Parameters – Modifying system parameters incorrectly may cause display malfunctions.
If the problem continues, professional repair may be needed.
This answer is automatically generated
How to erase total miles on display
The total miles (odometer reading) on the Key-Disp KD21C display cannot be erased. Only the trip distance can be reset to zero by holding the MODE button. The odometer will continue counting the total distance traveled.
This answer is automatically generated
How to reset to default settings
To reset the Key-Disp KD21C to default settings:
1. Hold both the UP and ON/OFF buttons for 2 seconds to access the selection interface.
2. Use the UP/DOWN buttons to choose “Y” (Yes) for recovering default settings.
3. Hold the ON/OFF button for 2 seconds to confirm.
4. The display will show DEF-00 and return to the startup page.
This answer is automatically generated
I have error 24in my lcd
Error 24 on the Key-Disp KD21C LCD means "Motor Hall Signal Abnormality."
This answer is automatically generated
I have error number 24 my bike is cuybike
Error number 24 for a Key-Disp KD21C bike means "Motor Hall Signal Abnormality."
This answer is automatically generated
