PAS Ratio Settings

To modify the value of PAS ratio can match the different
requirements.
For example, the range is "45-55 percent" of "1" level, bottom value
can be modified, and the default value is 50 percent.
To store the modified setting, press the MODE button and turn to the
next PAS ratio settings.
After all PAS ratio inputted, hold the MODE button for 2s to confirm
and then return to previous menu.
Please refer to Attached list 3.

◆Controller Over-Current Cut Settings

CUR represents controller over-current cut settings. CUR value can
be changed from 7.0A to 22.0A. The default value is 15A.
To change basic settings, press the UP/DOWN button to increase
or decrease the value of the current.
To store a changed setting, hold the MODE button and then return to
previous menu.

◆Power Assistant Sensor Settings

The Direction of Power Assistant Sensor Settings

PAS represents power assistant sensor settings. "run-F" means
forward direction, while "run-b" means back direction. The default value is
"run-F".

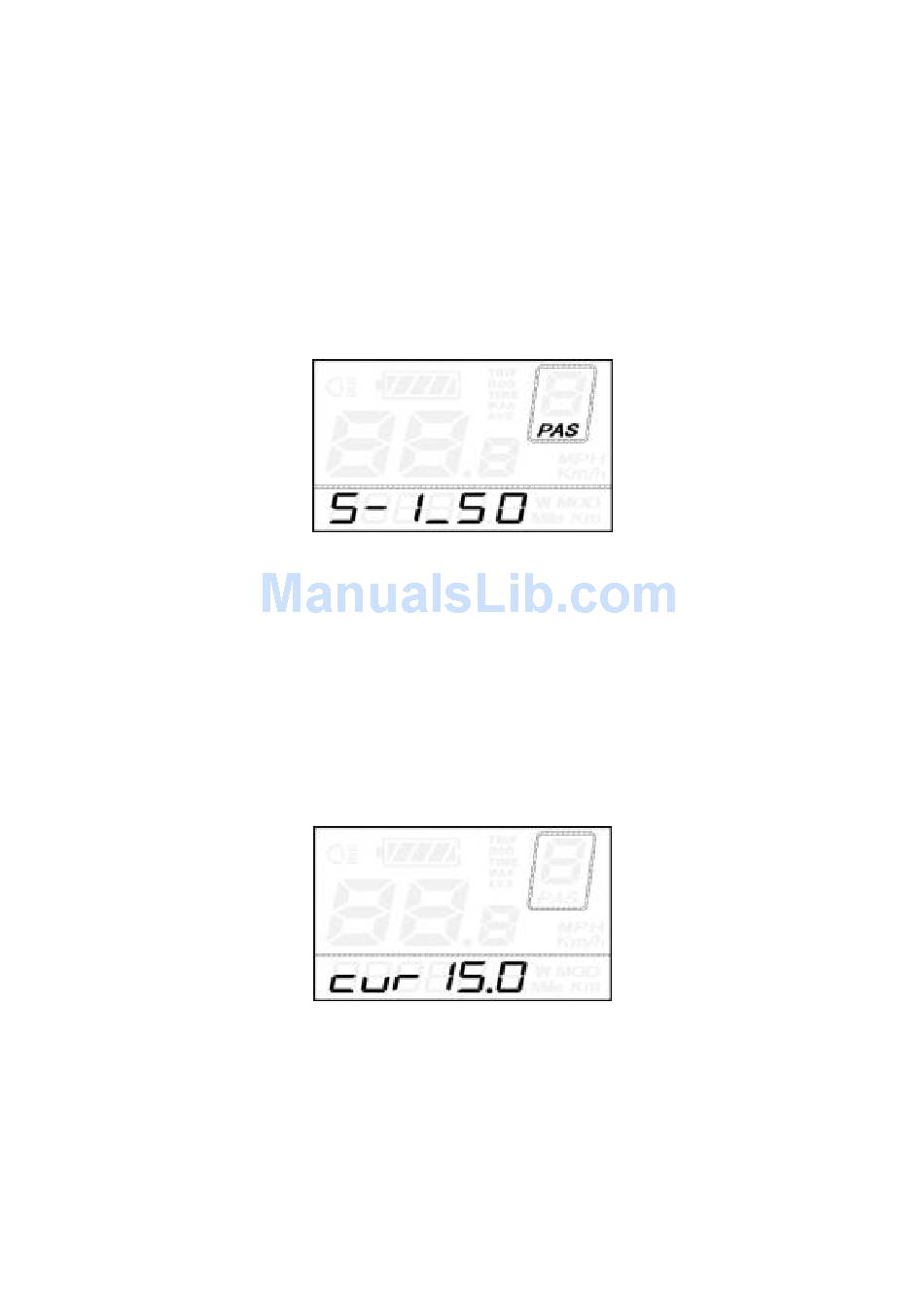

PAS Ratio Interface
CUR Settings Interface
10
