DSX-600 CableAnalyzer
Technical Reference Handbook
PERFORMANCE Tab
The PERFORMANCE tab (Figure 25) shows the overall result for
each test that is required by the selected test limit.
A
B
The test limit and cable type used for the test.
To see detailed results for a test, tap the panel.
The overall result for the Autotest. If the result shows an asterisk,
See "PASS*/FAIL* Results" on page 58.
The overall result for the test:
The results exceed the limit.
The results are within the limit.
64

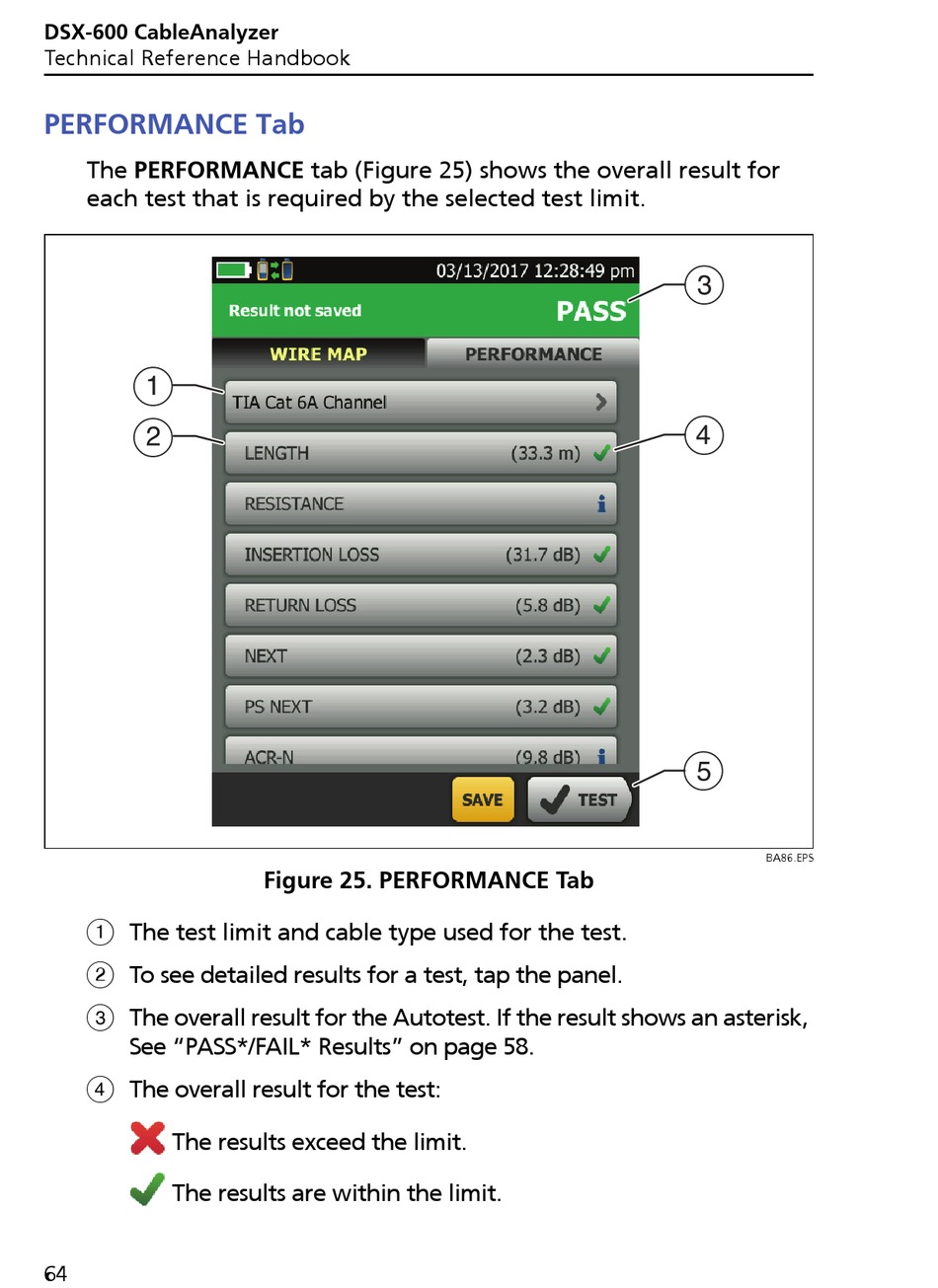

Figure 25. PERFORMANCE Tab
C
D
E
BA86.EPS
