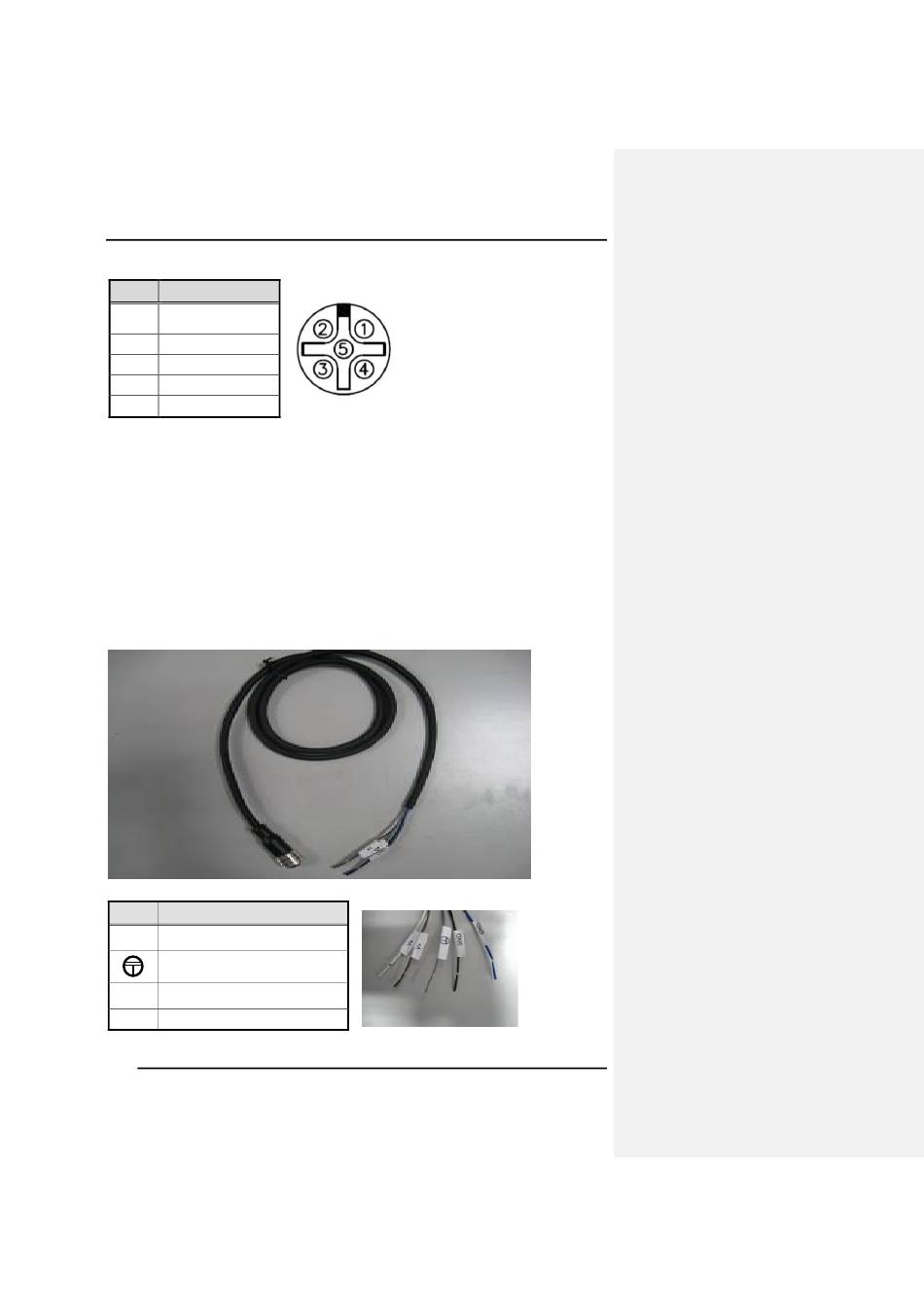

2.1.4 DC Power Jack w/ M12 connector

Signal
Pin
1 +12 ~ 24V
2 +12 ~ 24V
3 GND
4 GND
5 Earth Ground
2.2

Water-proof Cables

GOT800 series uses specific M12 connector for water-proof. Therefore, you will order
each cable base on application.
There are four kind cables of GOT800 series, by the optional, if you will apply the
USB, COM or Ethernet then you can select a cable for the package.
The Power cable is included in the accessory box, when you will need the power
adapter, also it can be selected by optional.

2.2.1 Power cable

Please follow pin assignment for the power input.
Pin Signal
V+
DC 12V or 24V power input
Earth Ground
GND
GND
GND GND
