4 Technical data
Operating voltage:
Fuse:
Maximum power consumption: 1500 W
PC connection:

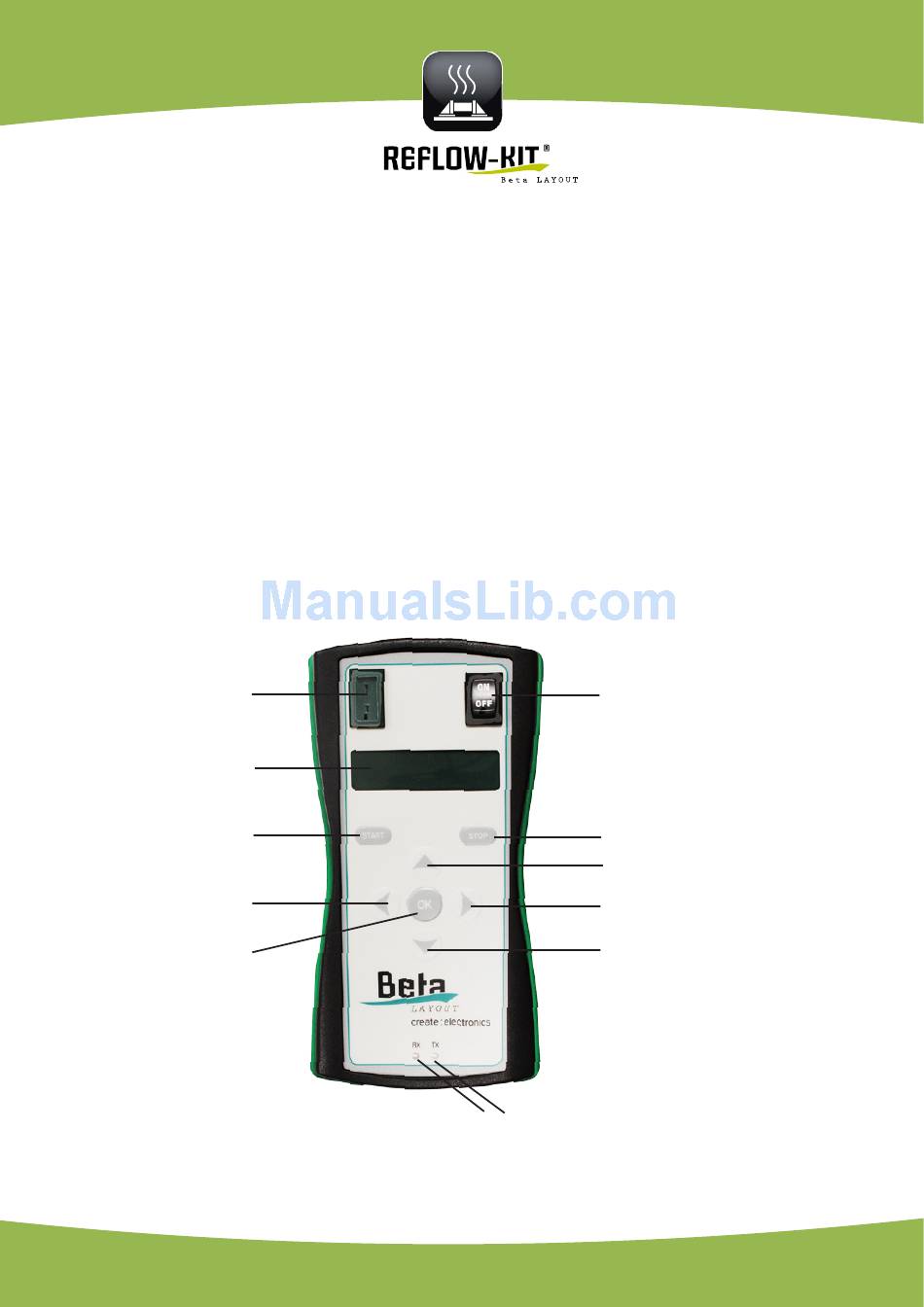

5 Operating and display elements
The reflow controller has a console with cables for connection to the mains and the reflow oven. The
console has 7 control buttons, 2 LEDs for controlling data traffic via the USB port, a display and an
acoustic alarm.
Sensor connection
Display
START button
LEFT button
OK button
The display shows information on the current soldering process, as well as error messages.
230 V/AC 50 Hz (EU)
110 V/AC 60 Hz (USA)
8A-T (EU)
15A-T (USA)
USB
Control LEDs
Reflow Controller V3 PRO
Operating Instructions
ON/OFF power switch
STOP button
UP button
RIGHT button
DOWN button
Page 7 of 39
