Preheat
Soak
Reflow
Dwell
Base values Entry point to the "Base values" menu.
You can use UP or DOWN to navigate to the last or next menu item, respectively. If you
want to change the settings in a menu item, scroll to the item using UP/DOWN, then
press OK.

8.4.1 Profiles

You can use this menu item to activate one of the five parameter sets stored in the
device, as follows:
• Select the menu item "Profiles" in the "Settings" menu. See chapter "Settings" for
more information. When "Profiles" is selected, the number of the active profile will be
displayed in the bottom line.
Setup
Profile

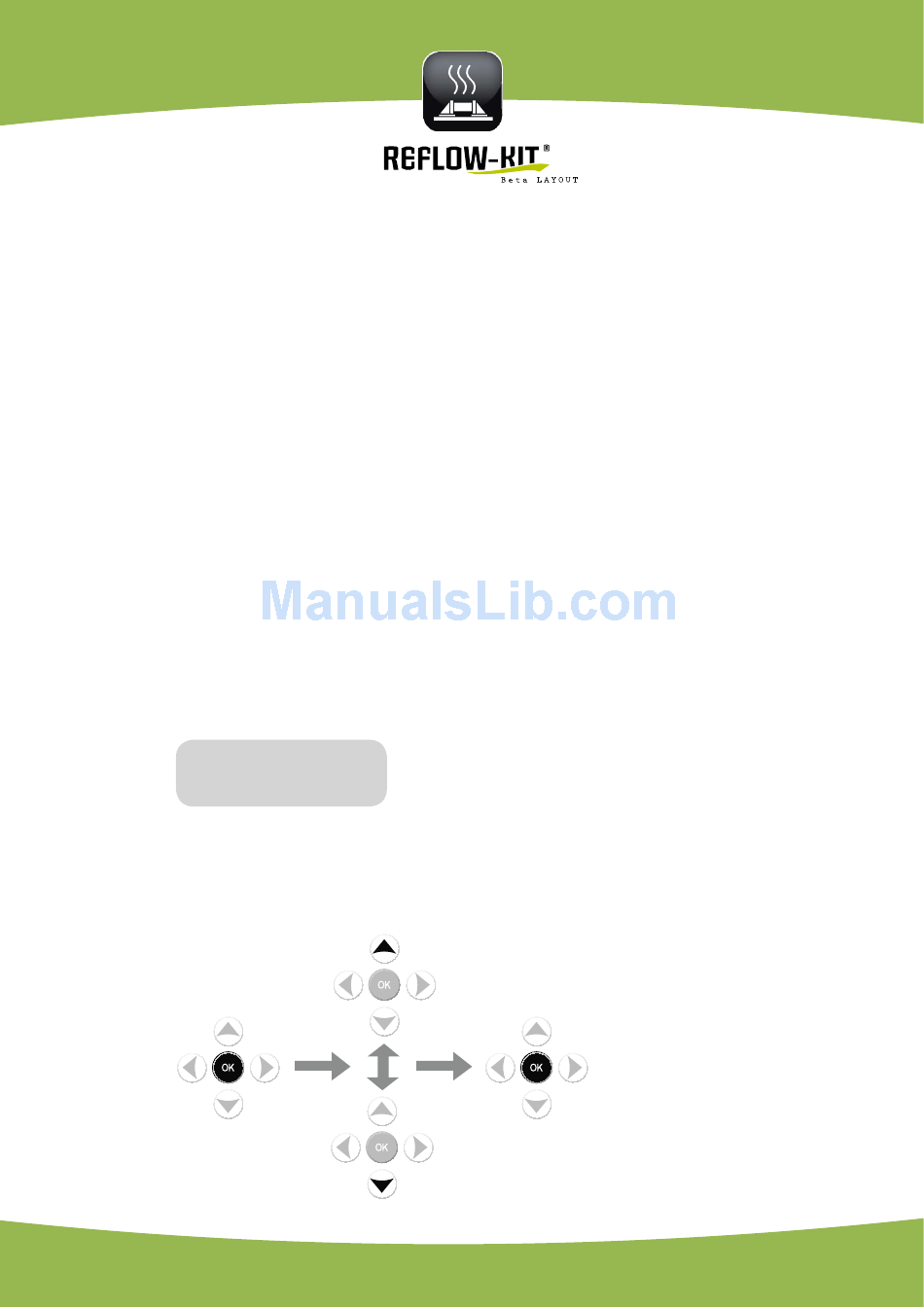

• Pressing OK will activate the menu item and the number of the active parameter set
will start to flash.
• You can change the value as required using the UP and DOWN buttons.
• Press OK to confirm.
"Preheat" phase settings for the active parameter set
"Soak" phase settings for the active parameter set
"Reflow" phase settings for the active parameter set
"Dwell" phase settings for the active parameter set
Press OK to access the "Base values" menu.
0001
