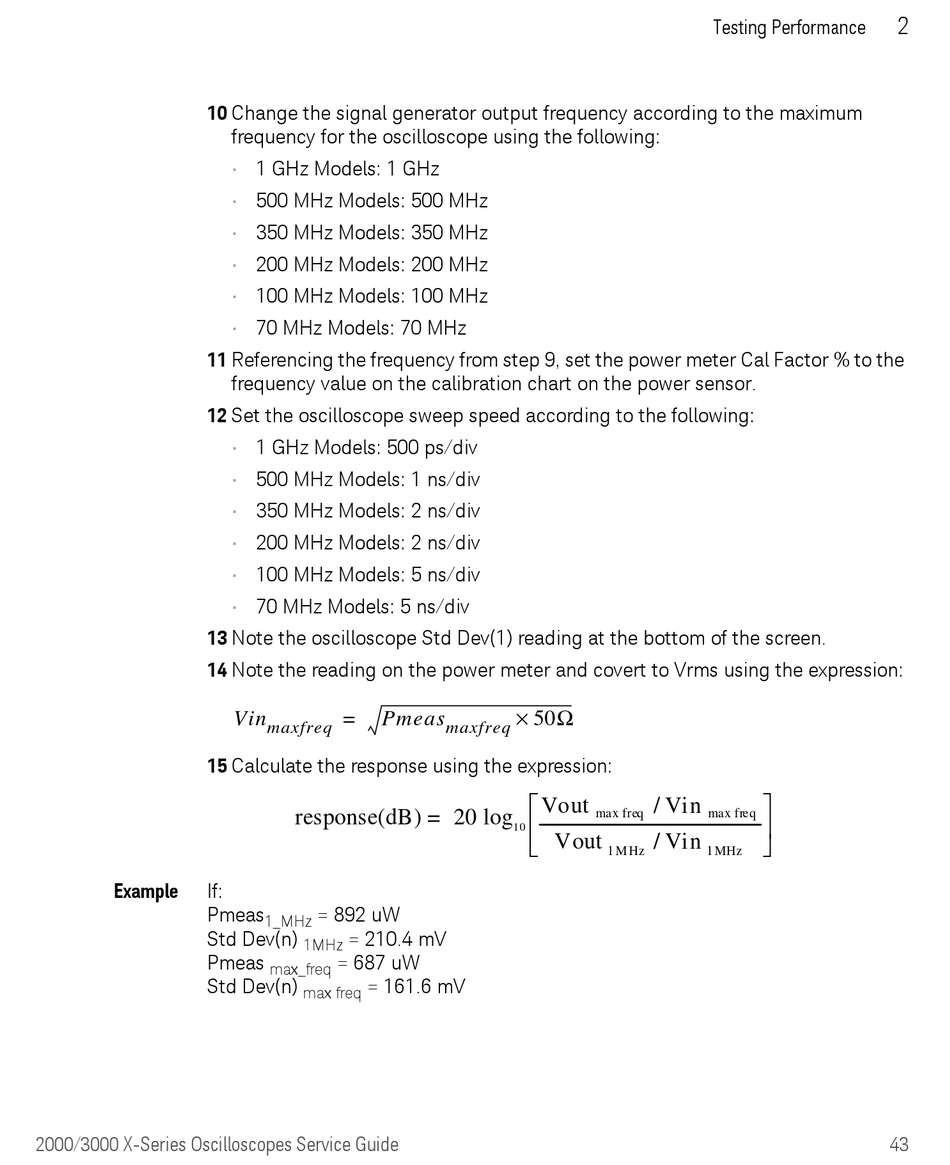

10 Change the signal generator output frequency according to the maximum
11 Referencing the frequency from step 9, set the power meter Cal Factor % to the
12 Set the oscilloscope sweep speed according to the following:
13 Note the oscilloscope Std Dev(1) reading at the bottom of the screen.
14 Note the reading on the power meter and covert to Vrms using the expression:
15 Calculate the response using the expression:
Example If:
Pmeas
Std Dev(n)
Pmeas
Std Dev(n)
2000/3000 X-Series Oscilloscopes Service Guide
frequency for the oscilloscope using the following:
• 1 GHz Models: 1 GHz
• 500 MHz Models: 500 MHz
• 350 MHz Models: 350 MHz
• 200 MHz Models: 200 MHz
• 100 MHz Models: 100 MHz
• 70 MHz Models: 70 MHz
frequency value on the calibration chart on the power sensor.
• 1 GHz Models: 500 ps/div
• 500 MHz Models: 1 ns/div
• 350 MHz Models: 2 ns/div
• 200 MHz Models: 2 ns/div
• 100 MHz Models: 5 ns/div
• 70 MHz Models: 5 ns/div
Vin = Pmeas
maxfreq
response(dB) = 20 log
= 892 uW
1_MHz
= 210.4 mV
1MHz
= 687 uW
max_freq
= 161.6 mV
max freq
×
50Ω
maxfreq

Vout
max freq

10
 Vout
1 M Hz
Testing Performance

/ Vin
max freq

/ Vin 
1 MHz
2
