1 Connect the equipment (see
Figure 7
2000/3000 X-Series Oscilloscopes Service Guide
a Use the N cable to connect the signal generator to the input of the power
splitter input.
b Connect the power sensor to one output of the power splitter.
c Use an N-to-BNC adapter to connect the other splitter output to the
channel 1 input.
Oscilloscope
N to BNC Adapter
Power Sensor
Power
Meter

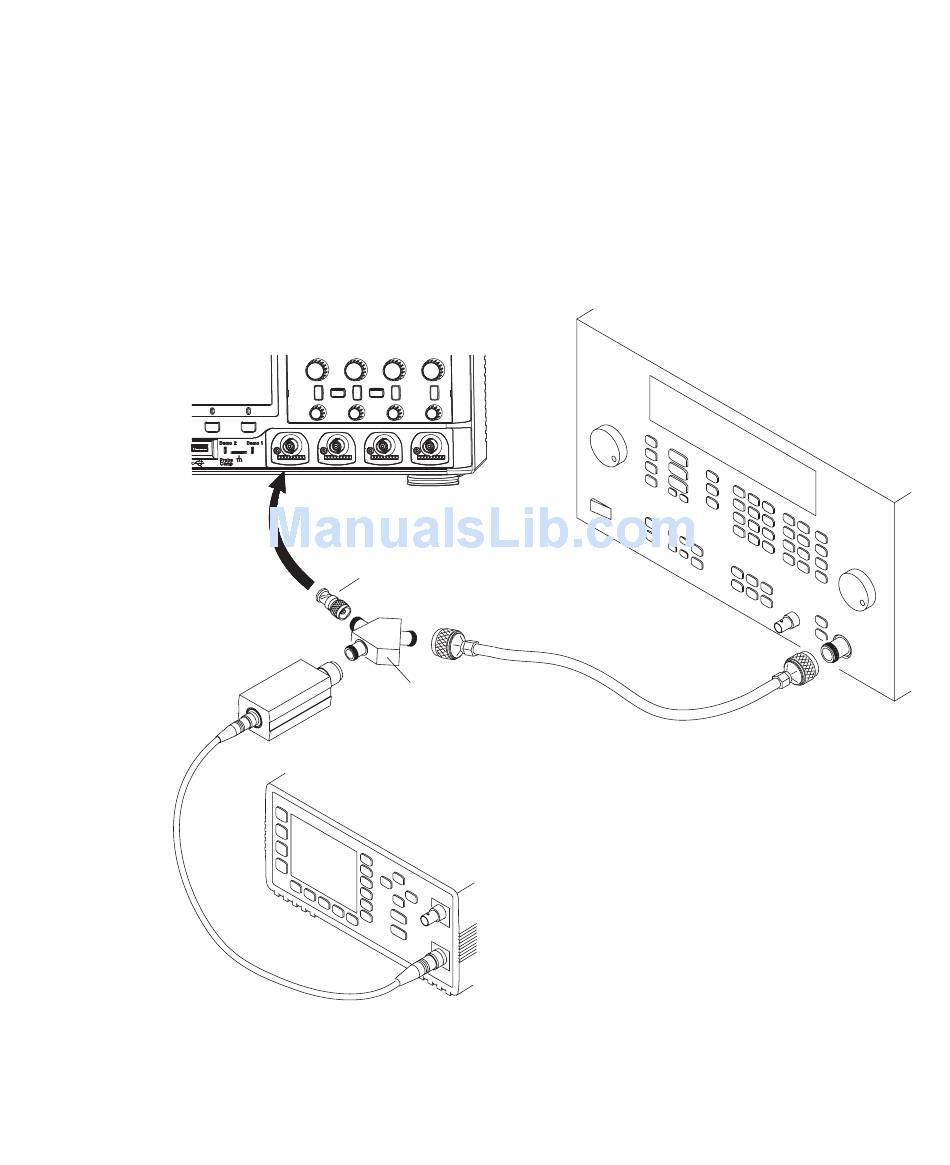

Setting Up Equipment for Band width (-3 dB) Verification Test
Figure
7).
Power Splitter
Testing Performance
Signal
Generator
N Cable
2
41
