- Page 1 ® SPIRE 4.1 Operator’s Manual Release Date: September 13, 2017 Publication Number: 620066826OPR Revision: A...
-
Page 2: Contact Information
Commercial Warranty. Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting from any of the following occurrences, including but not limited to, (1) other than normal and proper use... - Page 3 Spire 4.1: Physical Dimensions ........
-
Page 4: Safety Instructions
Spire 4.1 Operator’s Manual SAFETY INSTRUCTIONS AFETY VERVIEW • Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/caution labels on the unit (decals, labels or laminated cards). • Read and understand ALL applicable OSHA (Occupational Safety and Health Administration) safety regulations before operating this unit. -
Page 5: Shipping And Storage
Spire 4.1 Operator’s Manual AFETY RECAUTIONS This unit has been specifically designed to provide protection against personal injury. To ensure continued protection observe the following: Disconnect power to the unit before servicing following all lock out/tag out procedures established by the user. Verify all the power is off to the unit before any work is performed. Failure to disconnect the power could result in serious injury, death or equipment damage. -
Page 6: Spire 4.1 System Overview

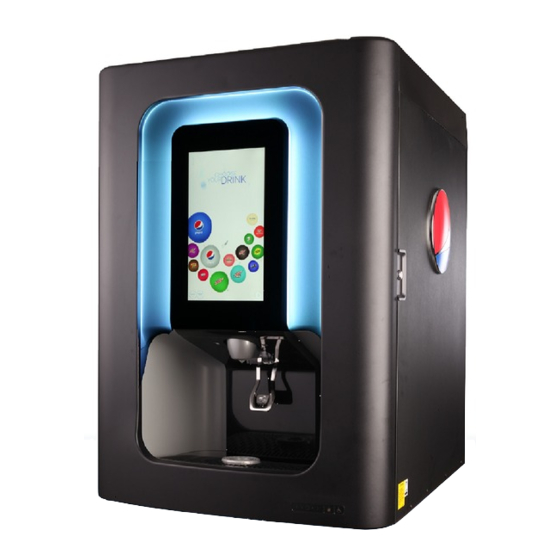

4.1: D PIRE ESCRIPTION Spire 4.1 solves your ice and beverage service needs in a sanitary, space saving, economical way. It is designed to manually fill with ice from any remote ice-making source. The unit includes the following components: •... -
Page 7: Spire 4.1: Physical Dimensions
Spire 4.1 Operator’s Manual 4.1: P PIRE HYSICAL IMENSIONS Figure 1. Spire 4.1 Physical Dimensions © 2017, Cornelius Inc. - 7 - Publication Number: 620066826OPR... -
Page 8: Start-Up & Operating Instructions
ISPENSER NSTALLATION Before start-up and operation, the Spire dispenser must be installed by qualified personnel following instructions given in the Spire 4.1 Installation manual (620066826INS). ISPENSER OWER Perform the following steps to power up the Spire unit and dispense a drink: 1. - Page 9 Spire 4.1 Operator’s Manual 6. Optional: Use a Flavor Shot Icon to select up to 3 flavors. Note: To select flavor shots, tap on one of the flavor shot icons. Repeat this process to select up to 3 flavor shots.
-
Page 10: Ada Keypad
Spire 4.1 Operator’s Manual ADA K EYPAD The Spire 3.1 unit features touch-sensitive buttons located on the front of the unit (lower right-hand area) of the unit. These buttons provide an alternative method to navigate the item selection and dispense screens. - Page 11 Spire 4.1 Operator’s Manual ADA K EYPAD PERATION Perform the following steps to use the Keypad to dispense a drink: 1. Select a Drink Selection icon from the Drink Selection screen. Note: To select a drink using the ADA Keypad, press the...
-
Page 12: Filling The Ice Bin
Spire 4.1 Operator’s Manual ILLING THE Review the following before filling the ice bin. Use caution to avoid spilling ice when filling the dispenser. Immediately clean up any spilled ice from filling or operating the unit. To prevent contamination of ice, the lid must be installed on the unit at all times. -
Page 13: Cleaning And Maintenance Instructions
Spire 4.1 Operator’s Manual CLEANING AND MAINTENANCE INSTRUCTIONS The following cleaning and maintenance instructions apply to the Spire dispenser. • ) Disconnect power to the unit before servicing. Follow all lock out/tag out procedures established by the user. Verify all power is off to the unit before performing any work. Failure to comply could result in serious injury, death or damage to the equipment. - Page 14 Spire 4.1 Operator’s Manual 4. Remove the valve nozzle components (valve nozzle Valve Nozzle Housing housing and valve nozzle) and diffuser. Valve Nozzle Housing To remove the valve nozzle housing, place your Tabs hand on the valve nozzle housing lever and turn the component clockwise (to the right) about a 1/4 turn, then pull it down.
- Page 15 Spire 4.1 Operator’s Manual 8. Clean the interior of the ice chute, using the brush provided with the Clean the interior of the ice chute using the brush provided with the unit or a nylon bristle brush with a warm soap solution. Once clean, rinse with clean water and wipe it to air dry.
-
Page 16: Daily Cleaning
Spire 4.1 Operator’s Manual ONTHLY LEANING The following cleaning activities are to be performed monthly. • ) Conduct all daily cleaning activities. See “Daily Cleaning” on page 13. • ) Flush and sanitize all syrup lines, as well as all of the syrup connectors. See “Sanitizing syrup lines, BIB Systems (Monthly) - Product Tubing”... -
Page 17: Cleaning And Sanitizing Interior Surfaces (Monthly)
Spire 4.1 Operator’s Manual Cleaning and Sanitizing Interior Surfaces (Monthly) While pouring liquid into the ice bin, do not exceed the rate of 1/2 gallon per minute. Pouring more liquid into the bin could result in an overflow situation that may result in personal injury or damage to the equipment. - Page 18 Spire 4.1 Operator’s Manual Spindle 4. With the 2-piece agitator removed from the bin, clean the interior of the bin, the top cover and the agitator assembly. Note: Use a soap solution with a nylon bris- tle brush, sponge or cloth to clean the inte- rior of the bin, top cover and agitator assembly.
- Page 19 Spire 4.1 Operator’s Manual Cold plate opening 8. Clean the exposed cold plate surface by extending the brush through the opening in the bottom of the hopper. IMPORTANT: Make sure you do not scratch or damage the cold plate. Figure 29 9.
-
Page 20: Cleaning The Cold Plate (Yearly)
Figure 31 3. Locate the Cold Plate Access Covers. On the Spire 4.1 unit, the cold plate access covers are Cold white plastic caps located on either side of the agitator Plate motor. -
Page 21: Replacing The Enclave (As Required)
Spire 4.1 Operator’s Manual Cold plate surface 5. Pour a small amount of soap solution through the cold plate openings in the bin. Figure 34 6. Using a cloth and soap solution, clean the surface of the cold plate through the cold plate access opening shown in Figure 33, then rinse the cold plate thoroughly. - Page 22 Spire 4.1 Operator’s Manual EPLENISHING UPPLY EQUIRED NOTE: When the indicator on the 1800-psi gage is in the shaded (“change CO cylinder”) portion of the dial, cylinder is almost empty and should be changed. displaces oxygen. Strict attention MUST be observed in the prevention of CO...
- Page 23 Spire 4.1 Operator’s Manual EMOVING THE NCLAVE EQUIRED The Enclave provides access to service lines to support installing and servicing water, CO syrup and drain lines. Read all steps first, then, perform the following steps to remove and replace the Enclave.
- Page 24 Spire 4.1 Operator’s Manual 4. With each Enclave tab released from a tab hold- ers, guide the Enclave forward and out of the unit. Place it in a safe place. Result: The Enclave is removed from the unit and the service lines are exposed to support installation and service activities.
- Page 26 Cornelius Inc. www.cornelius.com...
