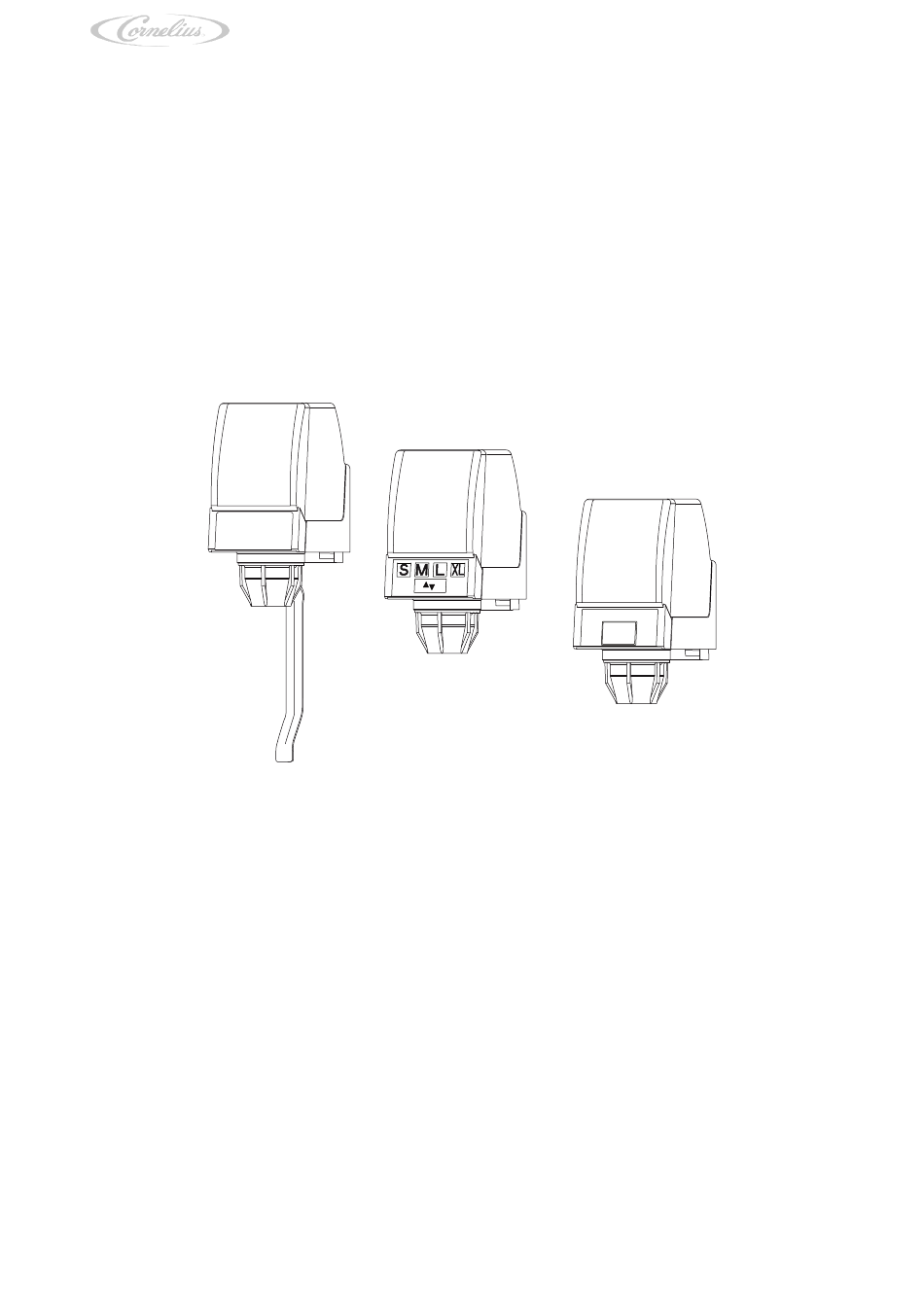

  • Page 1 Installation and service manual PUSH Dispensing valve SFV1...
  • Page 2 Legal notice Installation and service manual (Original) Document no. TD2005100 Dispensing valve SFV1 portion control: Part number: 620608763 SFV1 push button: Part number: 620608762 SFV1 dosing lever: Part number: 620608761 SFV1 Version Date of issue: 15/03/2019 Revision status: Index 0...

  • Page 3: Table Of Contents

    3.1.1 Dispensing valve SFV1 portion control ........... .
  • Page 4 ............. . Troubleshooting table Installation and service manual Dispensing valve Cornelius Deutschland GmbH SFV1 Document no. TD2005100...

  • Page 5: Safety

    Improper use of the dispensing valve, and unauthorised modifications to the dispensing valve and its components may cause per- sonal injury and equipment damage for which Cornelius Deutschland GmbH shall assume no liability. Improper use of the dispens- ing valve is prohibited.

  • Page 6: Transport And Packaging

    Transport and packaging Choose a suitable packaging when returning the dispensing valve itself or one of its components to Cornelius Deutschland GmbH, e.g. for repairs. In particular, make sure that the dispensing valve and any components are protected from shock/impact, moisture, dirt and electrostatic discharge (ESD).

  • Page 7: Description

    Description The dispensing valve SFV1 offers a fast flow rate, see 3.4. A 3 oz valve with a flow rate of 1.5 - 3 oz/sec (45 - 90 ml/sec) is available. The dispensing valve SFV1 includes a 24 VAC solenoid. The voltage on the coil should be 22 and 27 VAC when the magnet is energised.

  • Page 8: Dispensing Valve Sfv1 Push Button

    Description 3.1.2 Dispensing valve SFV1 push button The dispensing valve SFV1 push button comprises the following components: Fig. 2 Valve cover rear Outlet nozzle Flow controller Valve head Flow controller seal Pull-type solenoid Block mount 10 Microswitch Block mount seal...

  • Page 9: Dispensing Valve Sfv1 Dosing Lever

    Description 3.1.3 Dispensing valve SFV1 dosing lever The dispensing valve SFV1 dosing lever comprises the following components: Fig. 3 Valve cover rear Dispensing lever Flow controller Outlet nozzle Flow controller seal Baffle with diffusor Block mount 10 Valve head Block mount seal...

  • Page 10: How The Dispensing Valve Works

    From there, the beverage runs into the cup. An optional soda lever is available for the dispensing valve SFV1. Actuating the soda lever opens only the soda path in the valve, so that only soda, without syrup or concentrate, flows through the block mount into the flow controller, through the valve head into the dispensing nozzle and then into the cup.

  • Page 11: Installation/Removal

    Non-compliance with these laws, regulations and guidelines may result in death, serious injury or equipment damage. The dispensing valve SFV1 is suitable for installation on various base units (overcounter cooler or tower). The dispensing valve SFV1 is attached to the dispensing valve support via the block mount.

  • Page 12: Removing The Dispensing Valve

    5. Attach the soda lever (Fig. 11/2) using the fastening bolt (Fig. 11/3). Do not overtighten the fastening bolt (Fig. 11/3). Finishing tasks 1. Mount the dispensing valve, see chapter 4.1. Fig. 11 Installation and service manual Dispensing valve Cornelius Deutschland GmbH SFV1 Document no. TD2005100 Version 15/03/2019, Index 0...

  • Page 13: Removing The Soda Lever

    1. Remove the fastening bolt (Fig. 12/2) from the soda lever (Fig. 12/1). 2. Remove the soda lever (Fig. 12/1). Finishing tasks 1. Mount the dispensing valve, see chapter 4.1. Fig. 12 Cornelius Deutschland GmbH Installation and service manual Dispensing valve Document no. TD2005100 SFV1 Version 15/03/2019, Index 0...

  • Page 14: Maintenance

    Every 3 months Baffle seal Perform a visual inspection; see chapter 5.2 Every 3 months Dispensing valve, interior Clean the valves; see chapter 5.3 Installation and service manual Dispensing valve Cornelius Deutschland GmbH SFV1 Document no. TD2005100 Version 15/03/2019, Index 0...

  • Page 15: Carrying Out A Visual Inspection Of The Seals On The Diffusor And Baffle

    6. Insert the baffle (Fig. 16/1) into the outlet nozzle (Fig. 16/2). Fig. 16 NOTICE! The outlet nozzle is easier to insert into the dispensing valve if it is moistened with water beforehand. Cornelius Deutschland GmbH Installation and service manual Dispensing valve Document no. TD2005100 SFV1...

  • Page 16: Cleaning The Valves

    Cleaning the dispensing valve is only possible if the dispensing valve is mounted on a base unit. A description of how to clean the valve can be found in the relevant base unit installation and service manual. Installation and service manual Dispensing valve Cornelius Deutschland GmbH SFV1 Document no. TD2005100...

  • Page 17: Repairs

    620050574 NOTICE! The replacement procedure for the front valve cover is exactly the same on the dispensing valves SFV1. Replacement is described here analogously using an example. 1. Push the front valve cover (Fig. 18/1) upwards and lift the front valve cover (Fig. 18/1) off the dispensing valve (Fig.

  • Page 18: Replacing The Rear Valve Cover

    620050575 NOTICE! The replacement procedure for the rear valve cover is exactly the same on the dispensing valves SFV1. Replacement is described here analogously using an example. 1. Push the rear valve cover (Fig. 20/1) forwards and lift the rear valve cover (Fig. 20/1) upwards.

  • Page 19: Replacing The Control Panel

    SFV1 push button: Control panel 2325 NOTICE! The replacement procedure for the control panel is exactly the same on the dispensing valves SFV1. Replacement is described here analogously using an example. 1. Disconnect the plug (Fig. 22/1) of the control panel (Fig. 22/3).

  • Page 20: Replacing The Flow Controller

    3. Check the seals (Fig. 27/1) of the block mount for damage. Replace damaged seals. 4. Install the block mount, see chapter 4.1. Fig. 27 Installation and service manual Dispensing valve Cornelius Deutschland GmbH SFV1 Document no. TD2005100 Version 15/03/2019, Index 0...

  • Page 21: Replacing The Microswitch

    Microswitch 560002596 Dispensing valve SFV1 dosing lever 1. Remove the base plate (Fig. 28/3) of the dispensing valve by pushing the two side tabs (Fig. 28/1) apart and carefully pulling the base plate (Fig. 28/3) forwards and downwards from the valve body (Fig.

  • Page 22: Replacing The Dispensing Lever

    ID/reference Qty/amount Comment SFV1 dosing lever: Lever (sanitary) 560003193 1. Remove the base plate (Fig. 33/3) of the dispensing valve by pushing the two side tabs (Fig. 33/1) apart and carefully pulling the base plate (Fig. 33/3) forwards and downwards from the valve body (Fig.

  • Page 23: Replacing The Dispensing Nozzle

    6. Lock the outlet nozzle in the dispensing valve by turning. Make sure that the dispensing nozzle is inserted correctly as otherwise the beverage cannot be dispensed correctly. Fig. 37 Cornelius Deutschland GmbH Installation and service manual Dispensing valve Document no. TD2005100 SFV1...

  • Page 24: Configuring And Adjusting

    5. Exit configuration mode by pressing the program button (Fig. 38/2) or the “Start & Stop” button (Fig. 38/3) for 5 seconds. The “PGM” indicator (Fig. 38/4) goes out. The last fill time set for each beverage size is stored. Installation and service manual Dispensing valve Cornelius Deutschland GmbH SFV1 Document no. TD2005100 Version 15/03/2019, Index 0...

  • Page 25: Top-Up Times" Configuration Mode

    7. Exit configuration mode by pressing the program button (Fig. 40/3) or the “Start & Stop” button (Fig. 40/4) for 5 seconds. The “PGM” indicator (Fig. 40/5) goes out. The last fill time set for each beverage size is stored. Cornelius Deutschland GmbH Installation and service manual Dispensing valve Document no. TD2005100...
  • Page 26 4. To increase the flow rate, turn the flow valve (Fig. 43/2) 1/4 turn anti-clockwise. Finishing tasks 1. Mount the rear valve cover, see chapter 6.2. Fig. 43 Installation and service manual Dispensing valve Cornelius Deutschland GmbH SFV1 Document no. TD2005100 Version 15/03/2019, Index 0...
  • Page 27 (see docu- mentation on the CO system) Base unit error See base unit documentation supply too low Change the CO bottle Cornelius Deutschland GmbH Installation and service manual Dispensing valve Document no. TD2005100 SFV1 Version 15/03/2019, Index 0...
  • Page 28 Cornelius Deutschland GmbH Tel.: +49 (0) 21 73 / 79 3 – 0 Carl-Leverkus-Str. 15 Fax: +49 (0) 21 73 / 77 4 – 38 40764 Langenfeld E-Mail: info@cornelius.com Germany...
