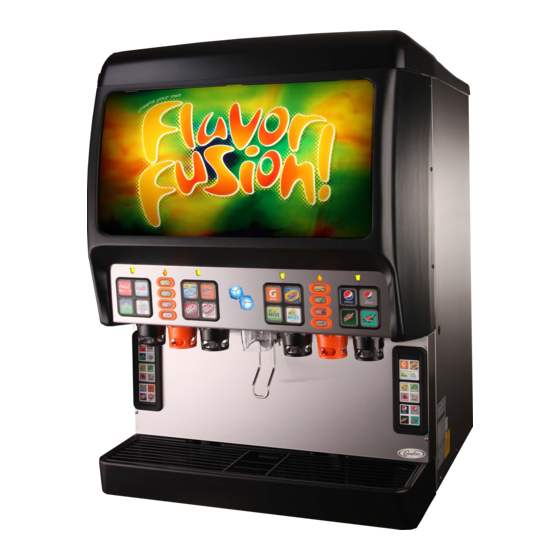

Cornelius FlavorFusion 255 Installation Instructions

INSTALLATION INSTRUCTIONS

F F 255
LAVOR USION

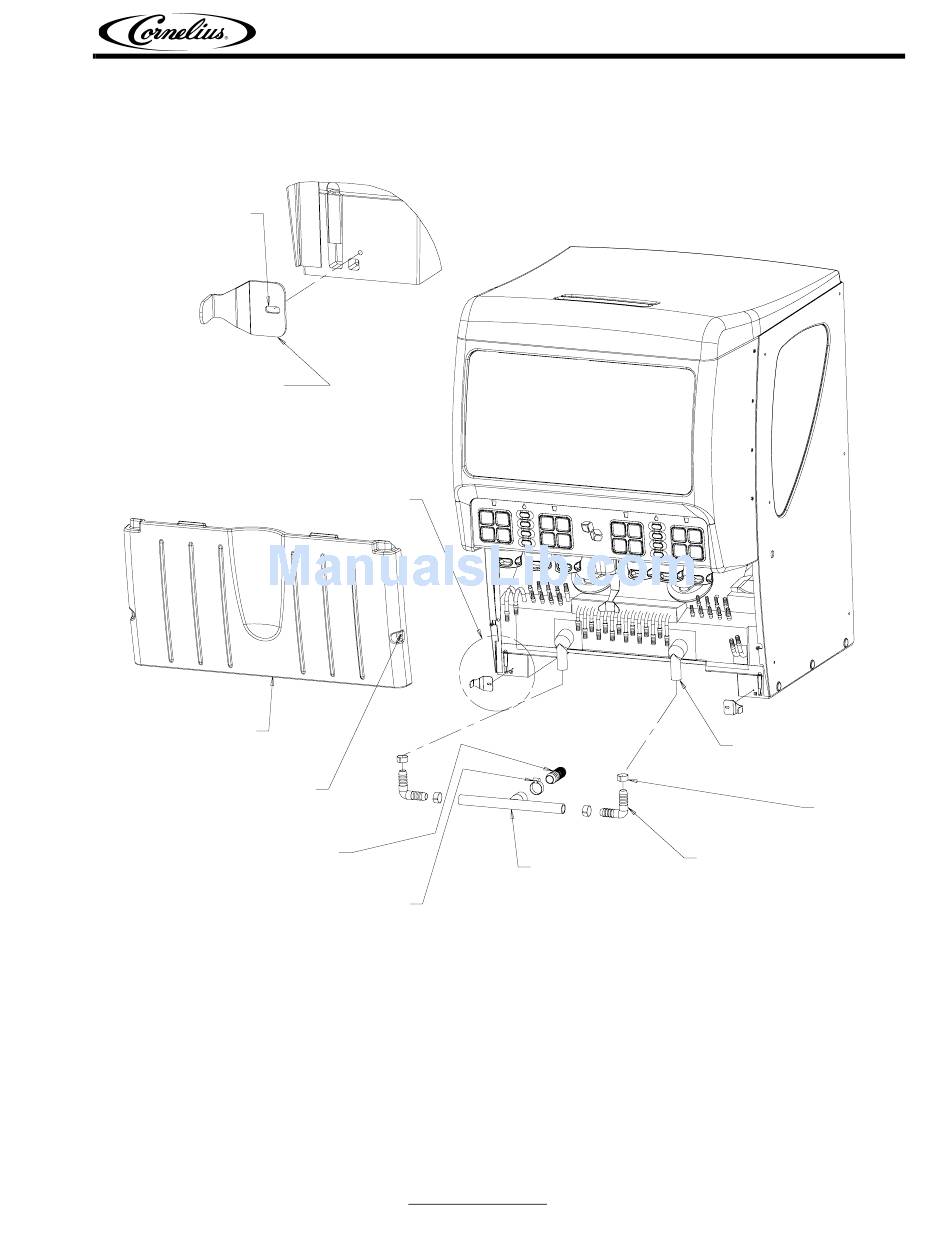

#8-18 X 1/2" LONG SCREW
P/N 620705801
2 PLACES
ADJUSTABLE FORMING BRACKET
(HELPS TO KEEP SPLASH PANEL
SIDES FLUSH WITH SIDE PANELS,
MOUNT BRACKETS INSIDE OF
SPLASH PANEL)
P/N 620053264
2 PLACES
'Z' STYLE SPLASH PANEL
P/N 620053350 (SILVER)
P/N 620053351 (BLACK)
#8-32 MOUNTING SCREWS
2 PLACES
P/N 70178
1" BARB SPLICER
(PLUMB TO EXISTING DRAIN LINE)
Release Date: July 7, 2006
© 2006, IMI Cornelius Inc.
Flavor Fusion 255 Drip Tray to 'Z' Style Unit Conversion Installation Instructions
D T
WITH RIP RAY TO
DETAIL A
SCALE 0.375
SEE DETAIL A
P/N 53293
HOSE CLAMP
1 PLACES
P/N 70750
BE SURE TO INSULATE ALL FITTINGS/HOSE WITH INSULATION TUBE
AND TAPE SUPPLIED IN KIT. FAILURE TO DO SO WILL LEAD TO CONDENSATION PROBLEMS
THIS EQUIPMENT MUST BE INSTALLED WITH ADEQUATE BACKFLOW PROTECTION
TO COMPLY WITH APPLICABLE FEDERAL, STATE AND LOCAL CODES.
www.cornelius.com
'Z' S
TYLE
DRAIN TUBE
P/N 53169
IMPORTANT!!!
- 1 -
U C
NIT ONVERSION
EXISTING COLDPLATE
DRAIN BOOTS
2 PLACES
HOSE CLAMP
3/4" BARBED ELBOW
2 PLACES
P/N 51280
Publication Number: 629088779INS
4 PLACES
P/N 71086
Revision: B
