ID:
An operater can key in either a User ID number or a Lift ID assigned to a particular
product. This is a numeric number only and can be any number from 1 to 65,000. (if
you want to turn the ID off, key in 0).
Note: ID not used in Multi Leg/Wire mode.
Send:
This will export/send the Log information out the configured port.
Clear:
This will clear any data in the Log mode. Clearing "On Lift", "Timed", "Overload" and
Multi Leg/Wire stored data.
Auto-off can preserve battery life.
22
The data will be exported to a computer via RS-232. Dillon
recommends using "WedgeLink" software as a keyboard wedge.
The data needs to be comma delimited and can be exported to an
Excel spreadsheet. Refer to Figure

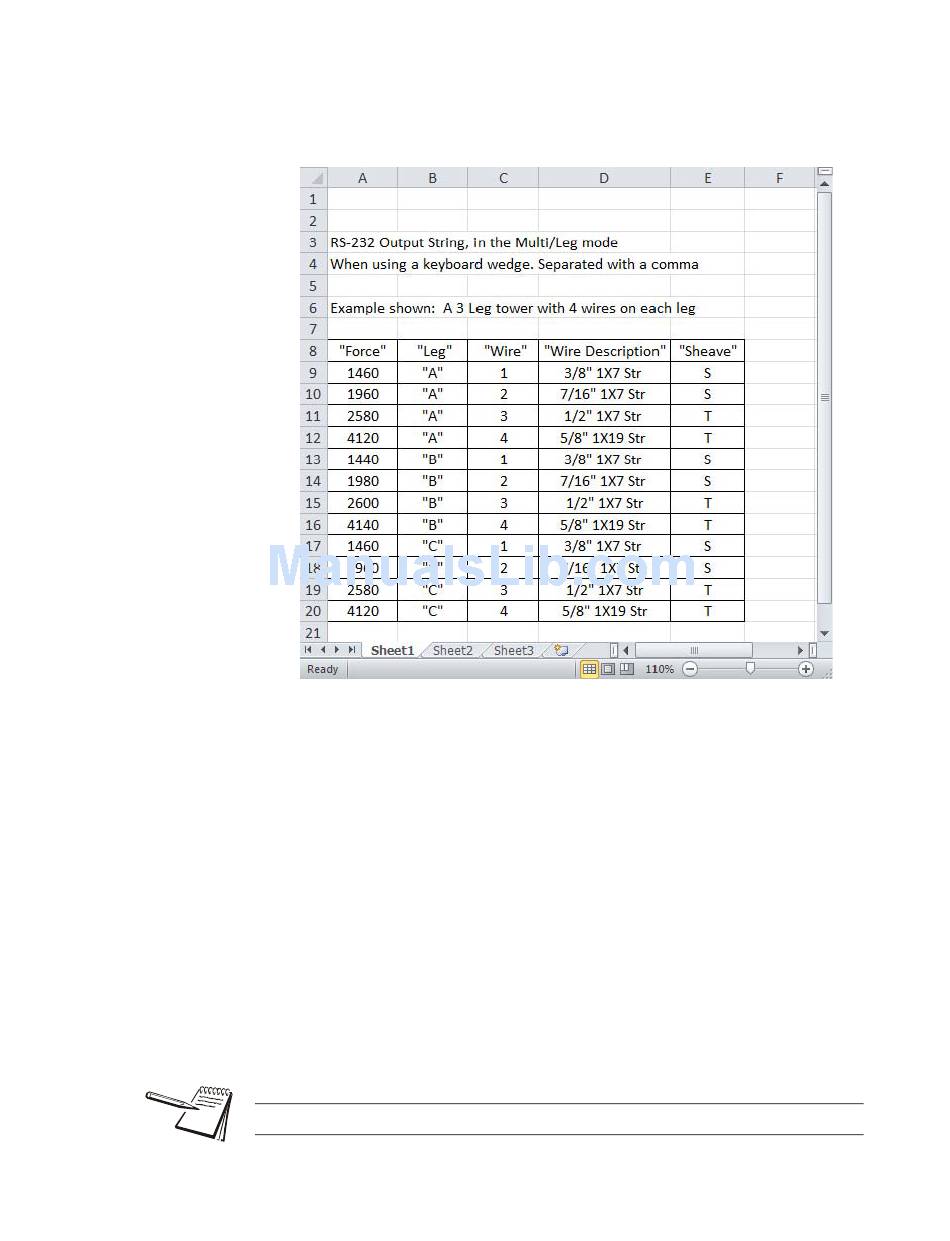

Figure 3.6 Example of Tower Data
3.6
for an example.
