Check-line CDT-2000 Operating Instructions Manual

9.0 SPECIFICATIONS
Measuring Ranges
RPM
1.00 – 99,999 rpm (non-contact)
1.00 – 19,999 rpm (contact)
Surface Speed 0.30 – 6,500 feet/min
0.10 – 1,999 meters/min
4.0 – 78,000 inches/min
Length 0.01 – 99,999 feet
0.02 – 99,999 meters
1.0 – 99,999 inches
Resolution .01 from 0 –100
.1 from 100 – 1,000
1 from 1000 – 99,999
Accuracy ± 0.02% of reading or 1 digit
Display 5-Digit LCD, 10mm high
Decimal Point Automatic
Memory System Maximum, minimum, and last reading (retained in memory for the
life of batteries)
Measurement System
Non-Contact Visible LED light beam
Contact
Contact adapter
Engineering units
RPM RPM
Surface Speed
Feet/min, inches/min and meters/min
Length Feet, inches, meters
Sensing Distance Up to 14 inches (350mm)
Display Update Time 0.5 seconds or one measuring period
Auto Power Off After 30 seconds of non-use (minimum, maximum and last reading
retained in memory)
Battery Life
20 hours continuous use
Weight
6 ounces (170 grams)
Housing Material
ABS Plastic
Operating Temperature 32 to 122° F (0 to 50° C)
Storage Temperature – 4 to 150° F (–20 to 70° C)

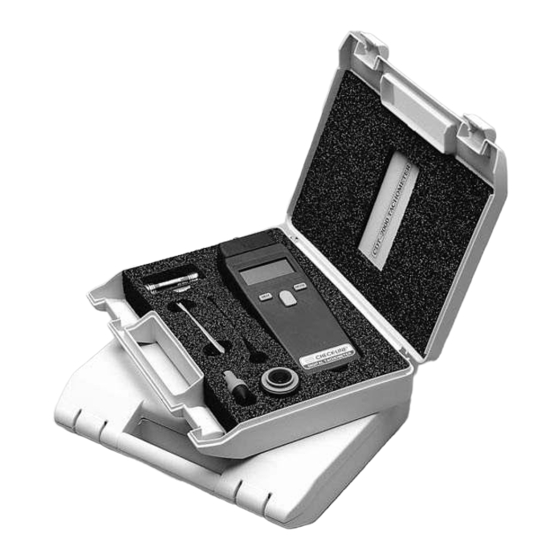

Accessories Included Contact adapter, cone tip, universal surface speed wheel with
integrated funnel tip adapter, reflective tape, operating
instructions and foam-fitted, hard-plastic carrying case
Optional Accessories Shaft extension, 3.15 inches (80 mm)
Warranty 2 years
12
OI611
Table of Contents
1.0 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Applications
2.0 SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . .
3.0 CONTENTS OF COMPLETE OUTFIT . . . . . . . . . .
4.0 OVERVIEW OF CDT-2000 . . . . . . . . . . . . . . . . . . . . .
4.1 LCD Display
4.2 Front Panel Keys
5.0 INSTALLING BATTERIES . . . . . . . . . . . . . . . . . . . .
6.0 MEASURING RPM . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Contact Operation
6.2 Non-Contact Operation . . . . . . . . . . . . . . . . . . . . . .
7.0 MEASURING SURFACE SPEED OR LENGTH . . . .
8.0 MEMORY SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . .
9.0 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
02
03
04
05
07
08
10
11
12
