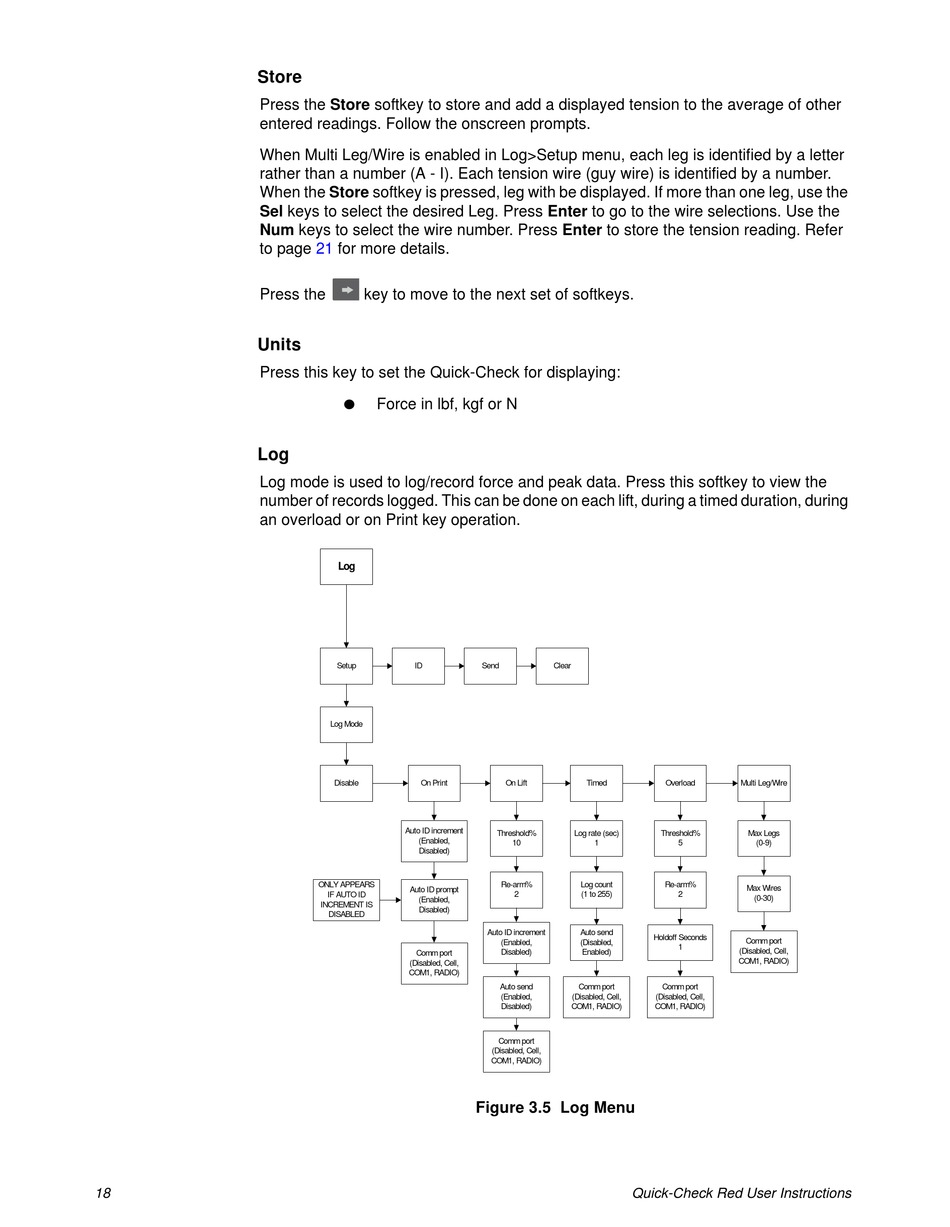

Check-line CTM2 Instruction Manual page 18

Store
Press the Store softkey to store and add a displayed tension to the average of other
entered readings. Follow the onscreen prompts.
When Multi Leg/Wire is enabled in Log>Setup menu, each leg is identified by a letter
rather than a number (A - I). Each tension wire (guy wire) is identified by a number.
When the Store softkey is pressed, leg with be displayed. If more than one leg, use the
Sel keys to select the desired Leg. Press Enter to go to the wire selections. Use the
Num keys to select the wire number. Press Enter to store the tension reading. Refer
to page
Press the
Units
Press this key to set the Quick-Check for displaying:
Log
Log mode is used to log/record force and peak data. Press this softkey to view the
number of records logged. This can be done on each lift, during a timed duration, during
an overload or on Print key operation.
18
21 for more details.
key to move to the next set of softkeys.
Force in lbf, kgf or N
l
Log
Setup ID Send
Log Mode
Disable On Print
Auto ID increment
(Enabled,
Disabled)
ONLY APPEARS
Auto ID prompt
IF AUTO ID
(Enabled,
INCREMENT IS
Disabled)
DISABLED
Auto ID increment
Comm port
(Disabled, Cell,
COM1, RADIO)
Figure 3.5 Log Menu
Clear
On Lift Timed
Threshold% Log rate (sec) Threshold%
10 1
Re-arm% Log count
2 (1 to 255)
Auto send
Holdoff Seconds
(Enabled, (Disabled,
Disabled) Enabled)
Auto send Comm port Comm port
(Enabled, (Disabled, Cell, (Disabled, Cell,
Disabled) COM1, RADIO) COM1, RADIO)
Comm port
(Disabled, Cell,
COM1, RADIO)
Quick-Check Red User Instructions
Overload Multi Leg/Wire
Max Legs
5 (0-9)
Re-arm%
Max Wires
2
(0-30)
Comm port
1
(Disabled, Cell,
COM1, RADIO)
