Advertisement
Quick Links
N
OTES
-56-
T
ABLE OF
01.0
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
02.0
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03.0
Keyboard, Menu and Connector Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
04.0
Principles of Ultrasonic Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
05.0
Selecting the Measurement Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
06.0
Making Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
07.0
Using the Digits & B-Scan Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
08.0
Thru Paint Measurement Technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
09.0
Pulse-Echo Coating & Coating Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
10.0
Additional Features TI-CMX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
11.0
Setups — Create, Store, Edit & Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
12.0
Using the Utility Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Appendix A — Velocity Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
C
ONTENTS
-1-
0
Advertisement
Related Manuals for Check-line TI-CMX
Summary of Contents for Check-line TI-CMX
- Page 1 Additional Features TI-CMX ........

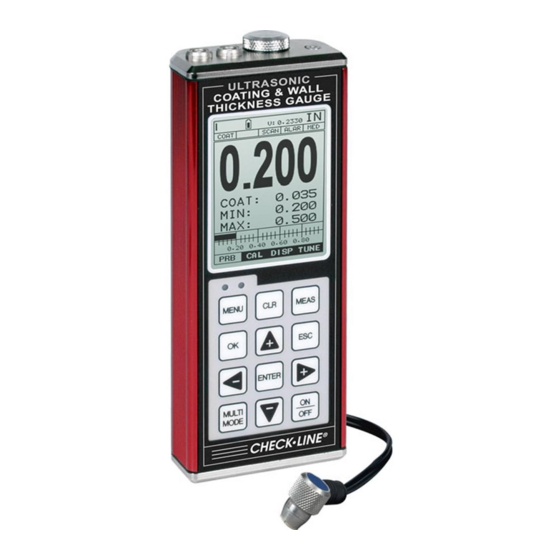

- Page 2 Based on the same operating principles as SONAR, the TI-CMX is capable of measuring the thickness of various materials with accuracy as high as ± 0.001 inches, or ± 0.01 millimeters. The principle advantage of ultrasonic measure- ment over traditional methods is that ultrasonic measurements can be performed with access to only one side of the material being measured.
- Page 3 In order to understand how to operate the TI-CMX, it’s best to start off with an understa ing of what it is we’re looking at exactly. The TI-CMX has a lot of great features and to that will prove to be a huge benefit for the variety of applications you’re constantly facin on a continual basis.
- Page 4 Auto Probe Recognition NOR LIABLE FOR ANY CONSEQUENTIAL DAMAGE, OF ANY KIND OR When the TI-CMX is initially powered up, the gauge will automatically check to see if the NATURE, RESULTING FROM THE USE OF SUPPLIED EQUIPMENT, WHETH transducer plugged into the gauge can be recognized. The steps that follow assume the TI-...
- Page 5 Aluminum 0.2510 6375 NOTE: Once the transducer has been selected, the TI-CMX will store and recall this tra ducer type every time the TI-CMX is powered on/off. The type will only change if the u Beryllium 0.5080 12903 physically selects another transducer type from the list, or selects a previously saved setu Brass 0.1730...
- Page 6 SING THE TILITY OFTWARE The next steps are to perform a probe zero and calibrate the TI-CMX to the material and transducer being used. If the sound velocity is unknown, the TI-CMX can be calibrated to a 12.1 Computer System Requirements known thickness sample.
- Page 7 It would be 3. Press the LEFT and RIGHT arrow keys to toggle the very handy to carry a set of mechanical calipers to use in conjunction with the TI-CMX language options.
- Page 8 Coating Calibration the Setup. The TI-CMX has been preset to a default coating velocity of 0.0850 in/µsec (2159 m/sec). This will be very close to the most common coating material velocities used in the field. 14. Finally, press the MEAS key to return to the measurement If the velocity of the coating is known, and different than the above default setting, the user screen.
- Page 9 11.3 Saving a Setup Known Coating Thickness Once the TI-CMX parameters and features have be adjusted for an application, the user When the exact velocity of a coating is unknown, the user has may elect to save these setting to a specific setup location for future use. This can poten- the option of performing a one point calibration on a sample of tially save time and reduce error between users.
- Page 10 4. Apply a drop of couplant on the transducer and place the these setups to memory and be recalled at any time. The TI-CMX can store up to 64 cus transducer in steady contact with the probe zero disk (battery tom setups.
- Page 11 4. Repeat steps 2 & 3 until the DIFFERENTIAL value is correctly displayed. The TI-CMX is now ready to measure. There are two different measurement view option each with a specific purpose – Digits & B-Scan. The steps below outline how to toggle 5.
- Page 12 65 measurements a second sub menu items until DIFFERENTIAL is highlighted. in scan mode. When the TI-CMX is idle, only the left vertical bar and the underline will be displayed. However, when the TI-CMX is making a measurement, five or six of the 3.
- Page 13 2. Depending on which function is highlighted, use the LEFT, RIGHT, and There are two limits, or alarm values, that can be setup in the TI-CMX – ALARM LOW ENTER keys to scroll the options or activate the Digit Edit and List Box options.
- Page 14 Press the MENU key once to activate the menu items tab. Press the MENU key mult VELOCITY: Function is to calibrate the TI-CMX by setting the velocity to a known mate- times to tab right and the ESC key multiple times to tab left until the CAL menu is rial velocity.
- Page 15 RESTORE SETUPS: Enables the user the ability to restore the setups currently saved on a PC to an TI-CMX via RS232 port. Refer the help section of the TI-CMX Datacomm Two Point Calibration software for a complete electronic manual.
- Page 16 However, if the coating will be measured as a stand alone material, the calibration must be performed the same way. The top & bottom end panels are where all connections are made to the TI-CMX. The diagram above shows the layout and description of the connectors:...
- Page 17 3. Press the ENTER key to display the Digits Edit Box. AT serial port on a PC. The cable supplied with the TI-CMX is a Lemo to 9 pin serial 4. Press the UP and DOWN arrow keys to scroll the highlighted cable.
- Page 18 Some materials are not as consistent as others and accuracy will be marginal. For was pressed, the TI-CMX will advance to a Zero Probe menu. If example, some cast materials are very granular and porous and as a result have inconsistent the transducer was identified as a special transducer capable of sound velocities.
- Page 19 In this section we will discuss the different measurements modes the TI-CMX is capable The TI-CMX is preset to a coating velocity of 0.0850 in/µsec (2159 m/sec) from the facto- operating in, the transducers required, and the reasons for using specific modes: ry.
- Page 20 In this mode a two point calibration must be performed. If the user will stored in the list of setups in the TI-CMX. Refer to section 11.0 for information on recal be measuring coating that has been applied to a metal surface, the calibration must be ing a setup.
- Page 21 Note: When the echo-echo thru-paint measurement mode is selected, the manual gain fea- transducer is required for use in this mode. There are a variety of coating transducers in ture is disabled and grayed out in the menu items. In this mode, the TI-CMX switches to an various frequencies available from Electromatic.
- Page 22 4. Alternatively, press the ENTER key to display the Digits Edit Box. There are no standard factory setups provided with the TI-CMX, as the primary reason for the setups is to retain all of the user adjustments made to set the gauge for use on a specific 5.
- Page 23 0.2510 6375 Beryllium 0.5080 12903 In order to use the B-Scan and Scan Bar features of the TI-CMX effectively, the starting depth and overall depth must be setup correctly. This can be adjusted using the B-START Brass 0.1730 4394 and the B-DEPTH features of the TI-CMX. The B-START refers to the starting depth or Bronze 0.1390...
- Page 24 This is another visual tool that would enable the user the ability to see thickness The first step in using the TI-CMX is to plug the transducer into the gauge and power the changes during high speed scans from flaws and pits.
- Page 25 However, when the manual zero is being used, the TI-CMX must be in pulse-ech location K represents the cross section, or side mode in order to perform the zero. The TI-CMX will also see to it that this occurs by view of the material. The B-Scan view draws simply forcing the gauge into this mode when zero.
- Page 26 3. The screens illustrated at right will be briefly displayed followed by the NOTE: In order to recall and use the new adjustments made to the TI-CMX at a later time, the main measurement screen. The user must save the modified settings in one of the setup locations. Refer section 11.0 for more CMX is ready to be calibrated.
- Page 27 NOTE: The value that is displayed will change depending on the current velocity settin in the TI-CMX. Disregard the number that is displayed. It is not important. What is imp tant is accurately performing the steps outlined above to insure reliability of the probe z calculation.
- Page 28 (6.35mm), followed by a two point calibration close to .080” (2.03mm). When a two point 2. Use the UP and DOWN arrow keys to scroll through calibration is performed, the TI-CMX calculates the zero and the velocity. the sub menu items until MAT is highlighted.
- Page 29 • BY ELECTROMATIC Ultrasonic HICKNESS AUGE Model TI-CMX O P E R A T I N G M A N U A L Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451...
