Loading Ribbon - Printronix T5000e Series Quick Setup Manual

Loading Ribbon

Spindle
Flange
Pivoting
Deck
1. Install the ribbon take-up core on the ribbon take-up spindle.
NOTE: The first ribbon take-up core comes with the printer.
2. Slide the ribbon roll onto the ribbon supply spindle until it stops
3. Open the pivoting deck by rotating the deck lock lever fully
Thereafter, use the core from the old (used up) ribbon.
against the spindle flange.
clockwise until the deck swings upward.

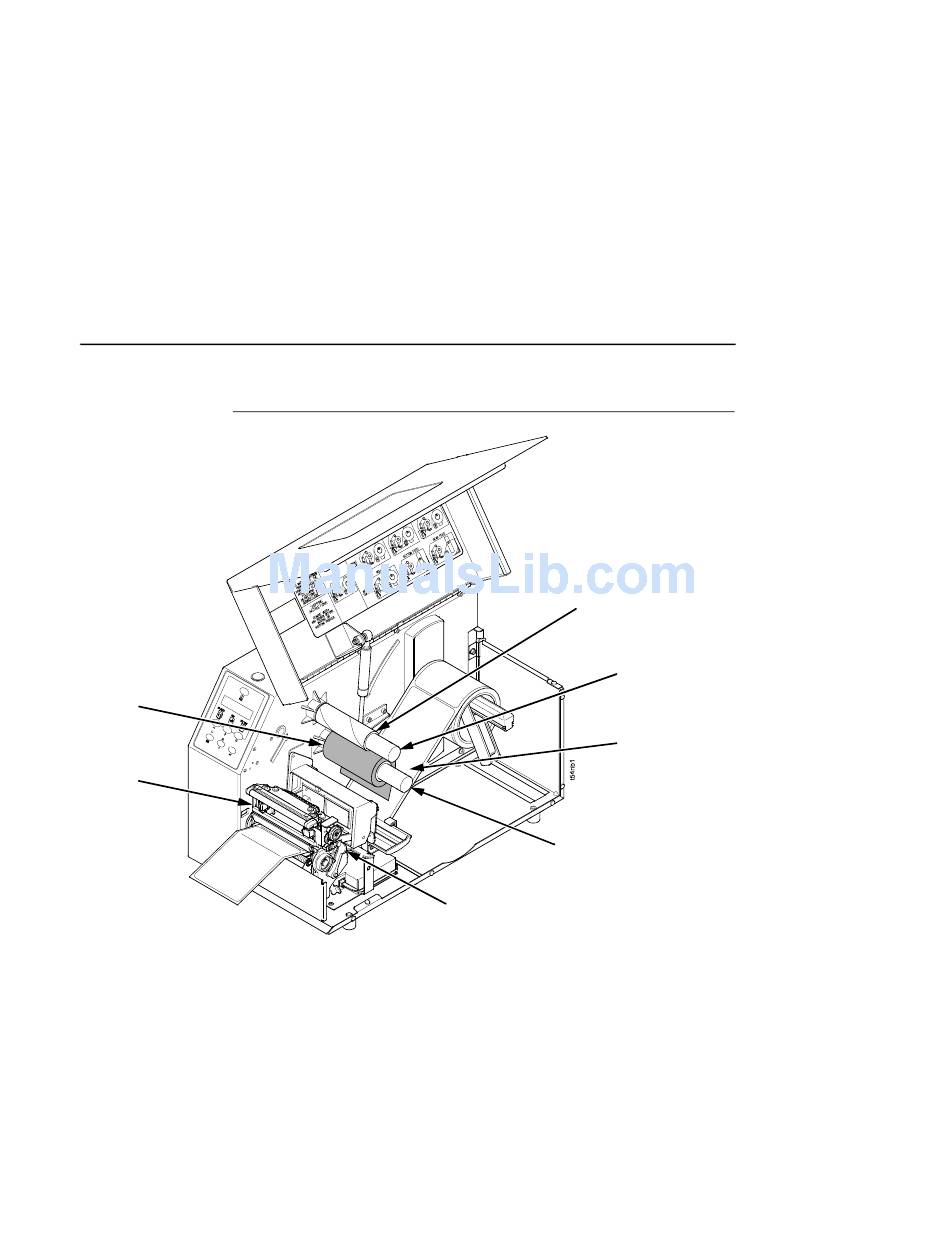

Loading Ribbon
Ribbon
Take-Up Core
Ribbon
Take-Up Spindle
Ribbon
Roll
Ribbon Supply Spindle
Deck Lock Lever
31
