Printing Adjustments

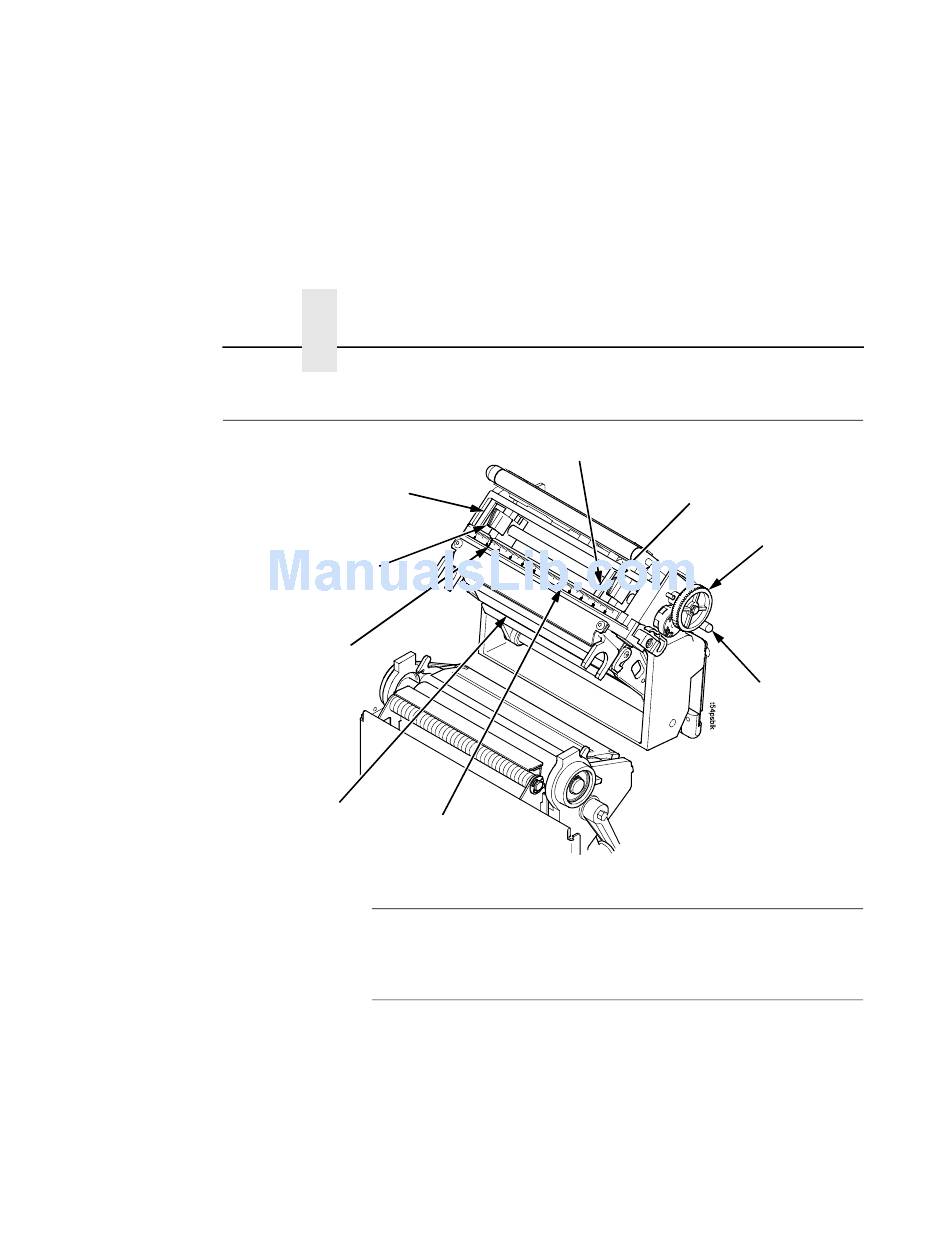

Printing Adjustments
Left
Pressure
Block
Left
Pressure
Block
Handle
Bold Mark
Printhead Cover/
Upper Media
Sensor
Pressure Block
Adjustment Scale

Printhead Pressure Adjustment

Adjust the printhead pressure to the setting of 4.

Printhead Pressure Block Adjustments

Left Pressure Block
Manually adjust the left pressure block so its handle is aligned with
the bold mark on the pressure block adjustment scale.
Right Pressure Block
Use the lead screw knob to position the right pressure block with its
pointer near the right edge of the media in use.
34
Right Pressure
Block
Right Pressure
Block Pointer
Lead Screw
Knob
Printhead Pressure
Adjustment Dial
