SETUP EXAMPLES

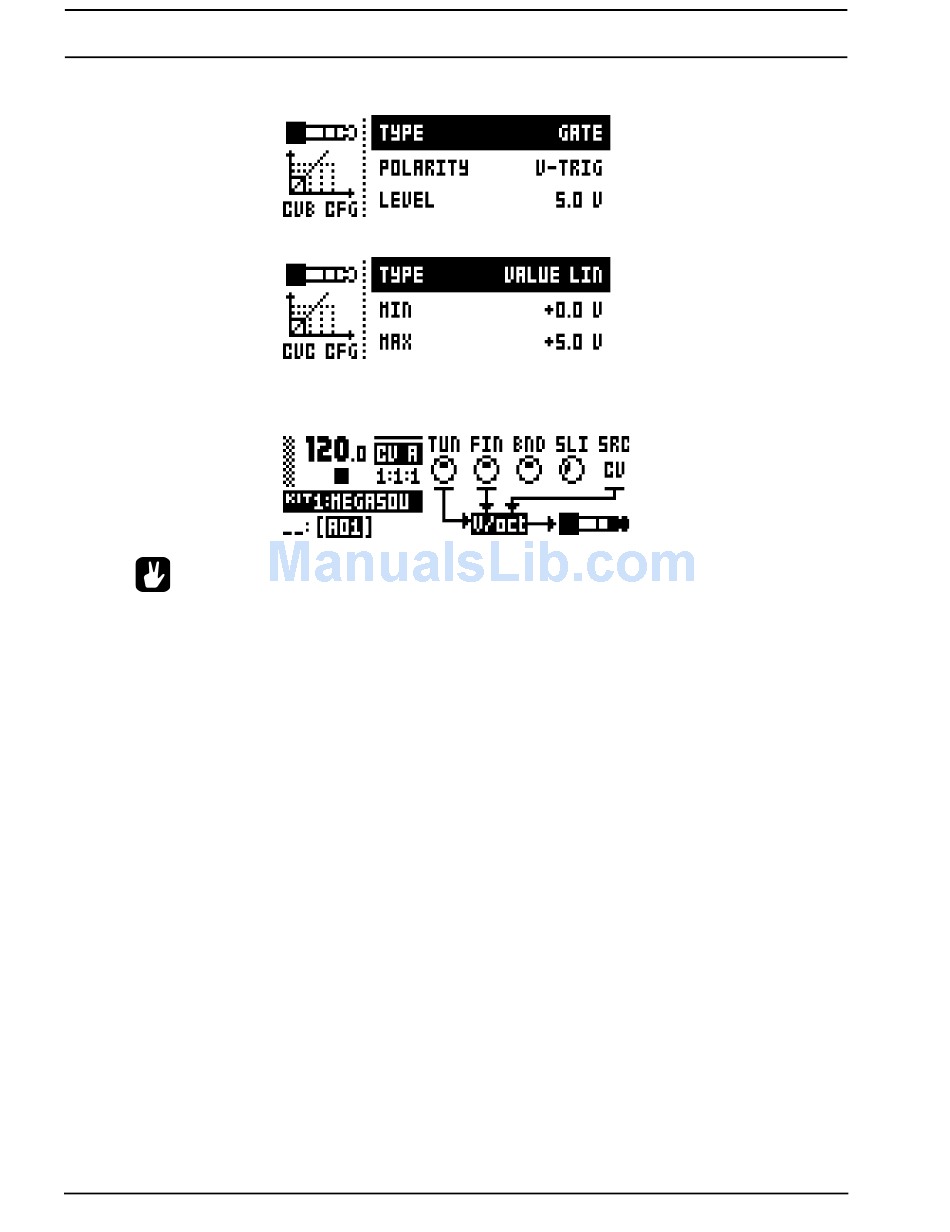

6. Press [FUNCTION] + [CV B]. In this menu, set TYPE to GATE. Exit the menu.
7. Press [FUNCTION] + [CV C]. In this menu, set TYPE to VALUE LIN. Exit the menu.
8. Analog Keys is now ready to control the external synthesizer. On the CV A, CV B and CV C pages, the con-
trollable parameters are indicated by arrows pointing from the parameters to the cable plug graphics. These
parameters can of course be parameter locked.
•
For controlling the pitch of for example old analog Korg or Yamaha gear, use the PITCH Hz/V.
•
For CV pages containing TYPE selections of PITCH V/OCT, PITCH Hz/V, TRIG and GATE, the SRC
parameter selects from which tracks note trigs will be derived. Pitch could for example be con-
trolled from the CV track while gate signals could be controlled from the FX track. When setting
another track as the SRC selection, the arpeggiator of that track can be used as well to send note
trigs.
