The versatile Analog Keys yearns to play with other machines. Whether it uses its ability to sequencer control
and play other analog synths using CV, plays its part in a MIDI chain of machines or processes amplified incom-
ing audio: Analog Keys gets along with other gear. Vintage or modern. Five examples are shown here.
ANALOG KEYS CONTROL OF AN EXTERNAL ANALOG SYNTHESIZER
Headphones Left Right Trk 1 Trk 2 Trk 3 Trk 4 In Left In Right CV AB CV CD MIDI In MIDI Out MIDI Thru
Sync A Sync B
Mode
Trk 1 Mute
Level
Master
Volume
Song Chain
Trk 2 Mute
Edit New
Sound Selection Tempo
Tap
Trk 3 Mute
Bank Group
Direct Change
Yes/Save
Trk 4 Mute Trig Mute Accent Note Parameter Copy Clear Paste
Slide Slide
No/Reload
FX Mute Transpose
Lock
CV Mute I Function
Multi Map Poly Transpose
Edit Edit As Seq
- +
Octave
Down Up

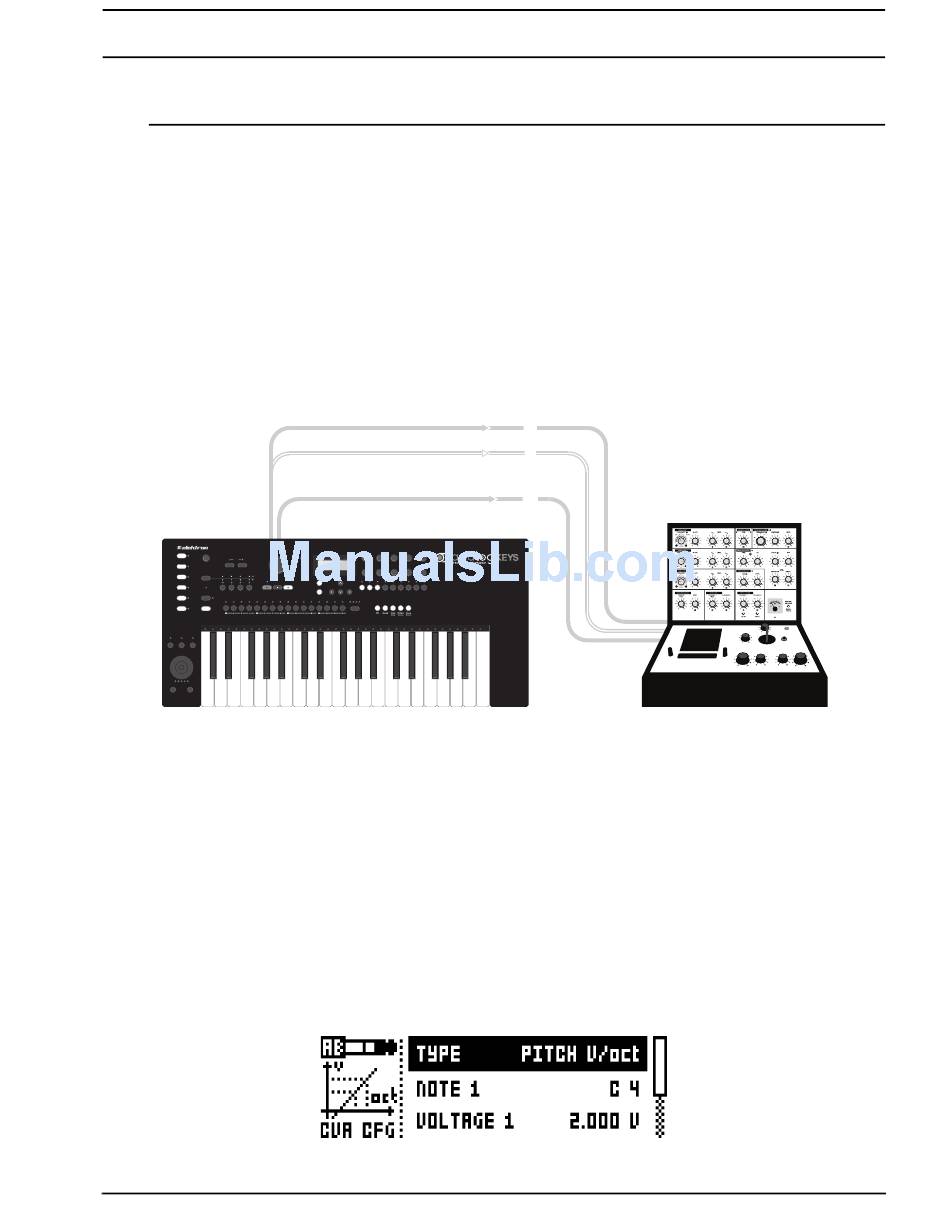

The CV/Gate track of Analog Keys is made for controlling external, CV/Gate equipped, analog gear. In this sce-
nario, a vintage analog synthesizer is controlled by Analog Keys. The pitch and filter cutoff will be controlled.
1. Connect two standard insert/Y cables (or one Y cable and a standard mono phone cable) to Analog Keys
CV AB and CV CD outputs.
2. Connect the tip cable of the CV AB insert cable to the external synth pitch CV control input. This cable will
control the pitch of the external synth.
3. Connect the ring cable of the CV AB insert cable to the external synth gate input. This cable will open the
envelope of the external synth.
4. Connect the tip cable of the CV CD insert/Y cable (or the mono phone cable) to the external synth filter CV
input. This cable will control the filter cutoff of the external synth.
5. While on the CV track, press [FUNCTION] + [CV A]. In this menu, set TYPE to PITCH V/OCT. For instruc-
tions on how to calibrate the pitch CV so that it matches the tuning of your CV-controlled synth, please see
"CV CONFIG" on page 57.
