SETUP EXAMPLES

USING AN EXTERNAL OSCILLATOR WITH ANALOG KEYS

Headphones Left Right Trk 1 Trk 2 Trk 3 Trk 4 In Left In Right CV AB CV CD
Mode
Trk 1 Mute
Master
Volume
Song Chain
Trk 2 Mute
Edit New
Sound Selection
Trk 3 Mute
Bank Group
Direct Change
Trk 4 Mute Trig Mute Accent Note Parameter Copy Clear
Slide Slide
FX Mute Transpose
Lock
CV Mute I Function
Multi Map Poly Transpose
Edit Edit As Seq
- +
Octave
Down Up
The CV/Gate outputs and the external inputs allow an external oscillator to be used with the internal Analog
Keys oscillators. Use this trick when you want a different (perhaps old, quirky and unpredictable yet charming)
oscillator to provide the fundamental tone but still want the control and modulation power of Analog Keys.

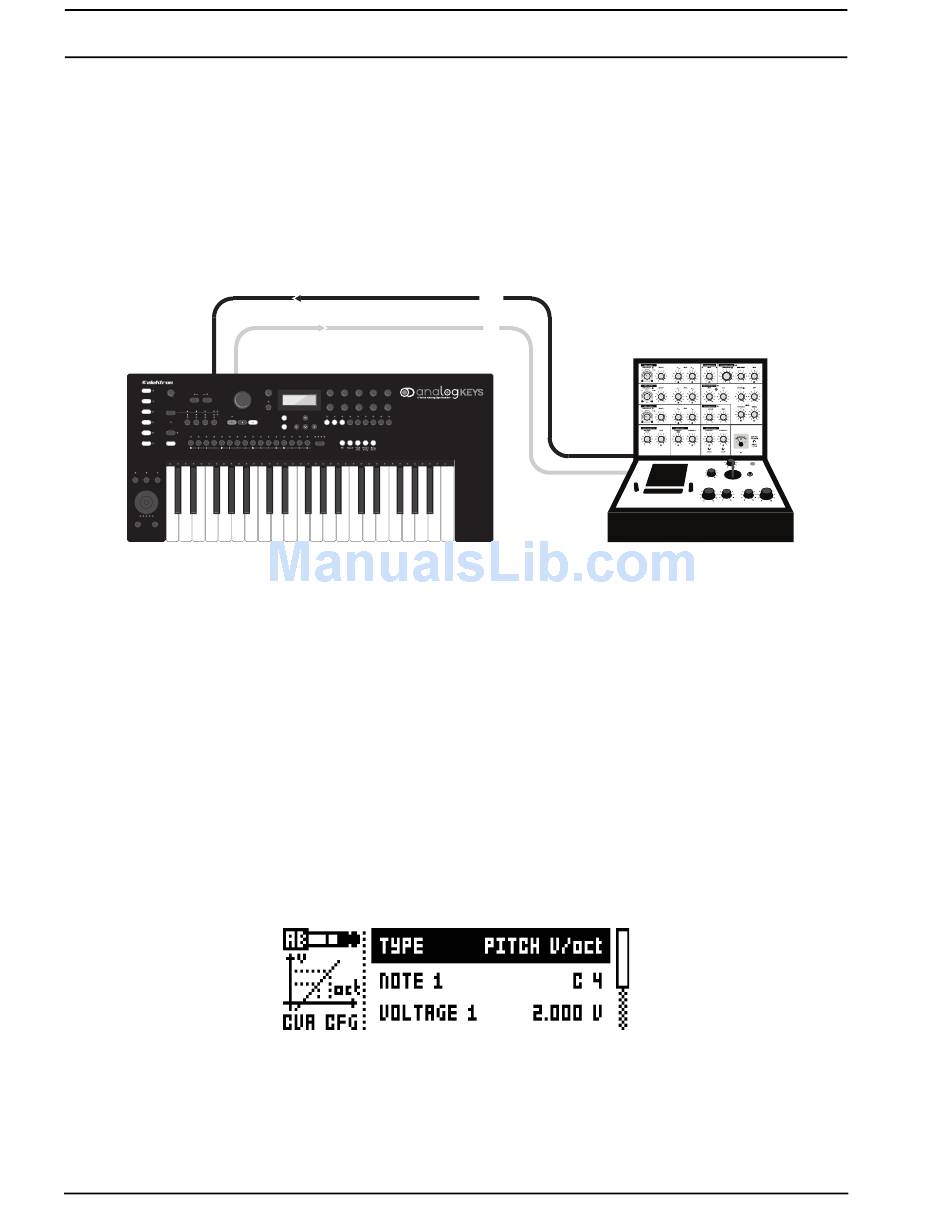

In this setup example, the CV track will trig the oscillator of an external analog synth. The output of this oscillator
will be routed to left input of Analog Keys. Synth track 1 of Analog Keys will control the pitch of both the internal
oscillators and the external oscillator. The filters and envelopes of track 1 will shape both the internal and the
external oscillators.
1. Connect a standard mono phone (or insert/Y) cable to Analog Keys CV AB output.
2. Connect the output of the external oscillator to the left external input
3. Connect the mono phone (or tip of the insert/Y) cable from CV AB to the pitch CV control input of the exter-
nal synth.
4. Select the CV track and press [FUNCTION] + [CV A]. In this menu, depending on the specification of the
external analog synth, set TYPE to either PITCH V/OCT or PITCH Hz/V. For instructions on how to cali-
brate the pitch CV so that it matches the tuning of your CV-controlled synth, please see "CV CONFIG" on
page 57.
74
