SETUP EXAMPLES

ANALOG KEYS AS A FILTER BANK

Headphones Left Right Trk 1 Trk 2 Trk 3 Trk 4
Mode
Trk 1 Mute
Master
Volume
Song
Trk 2 Mute
Edit
Trk 3 Mute
Bank Group
Direct Change
Trk 4 Mute Trig Mute Accent Note
Slide
Transpose
FX Mute
Lock
CV Mute I Function
Multi Map Poly Transpose
Edit Edit As Seq
- +
Octave
Down Up
Thanks to the neighbor routing, all the filters of Analog Keys can be used for providing an immense mono filter-
bank consisting of 8 filters plus 4 overdrive circuits. The setup can be either serial or parallel. It can of course be
set up for stereo filtering as well. In this scenario 4 filters are available for the left and right channels.
In this example, the two filters of each track will be used in parallel with the filters of the other tracks.

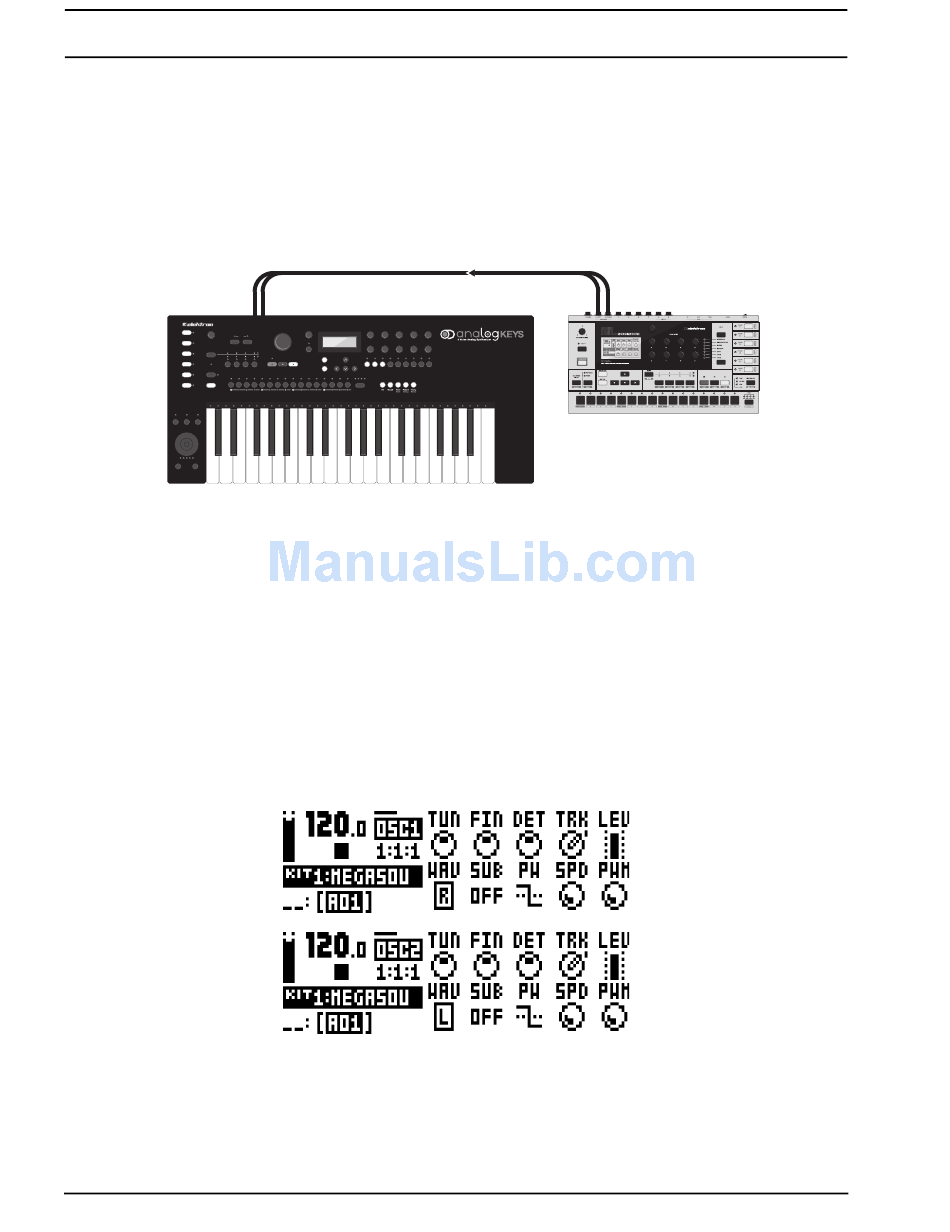

1. Connect the outputs of for example a Machinedrum to the inputs of Analog Keys.
2. For all four synth tracks, set the WAV parameter in the OSC1 page to IN R, and the WAV parameter of
OSC2 to IN L. This will sum the left and right channels.
3. Set all other WAV parameters to OFF. Make sure all SUB parameters is set to OFF as well.
72
