10.3 Hot-water Circuit Functions

This section describes the parameters that can be set up for a hot-water circuit via the

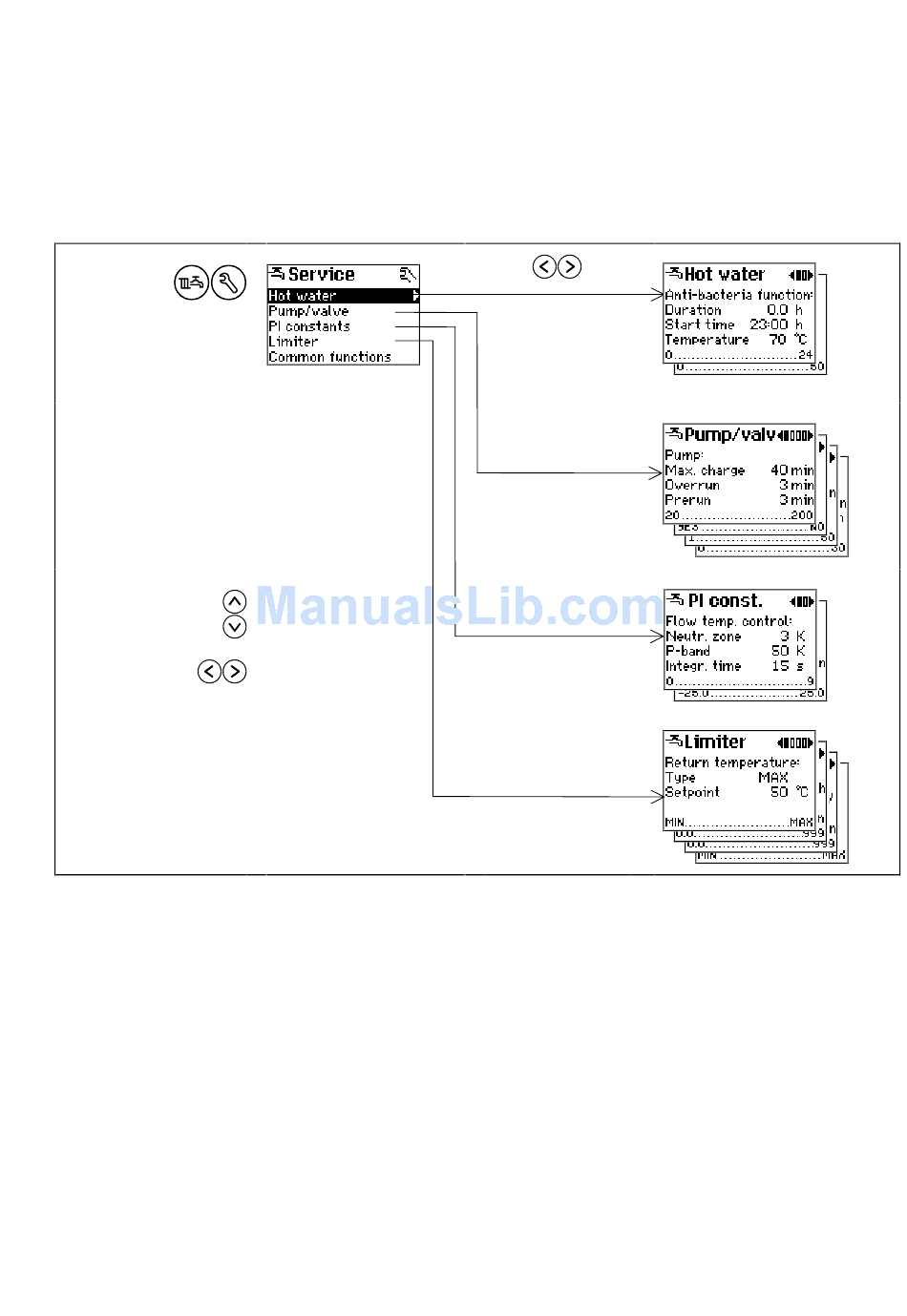

service menus. The diagram below shows an overview of the hot-water circuit set-
tings.
Select menu item/
setting
Next/previous picture
As you can see from the diagram above, hot-water circuit functions are divided into 4
groups corresponding to the menu items: Hot water, Pump/valve, PI-constants and
Limiter. Each menu item gives access to a number of pictures allowing you to view
and modify various parameters for the hot-water service. The number of pictures and
parameters available depends on the type of controller and the application you have
selected (see page 34 for information about applications).
This section describes all parameters that can be set for a hot-water circuit. Please dis-
regard the descriptions of any parameters not available in your specific system setup.
Instructions for operating the ECL 2000's service menus are provided on page 39.
