Flow
Energy
This and the following functions (Energy, Wind, Sun and Universal) are related to
the sensors you connect to those inputs that can be customized after you have selected
an application for the controller (see page 27).
The Flow function requires that the flow in the heat circuit is being measured. It en-
ables the controller to change the flow temperature if the current flow in the circuit
exceeds the flow setpoint.

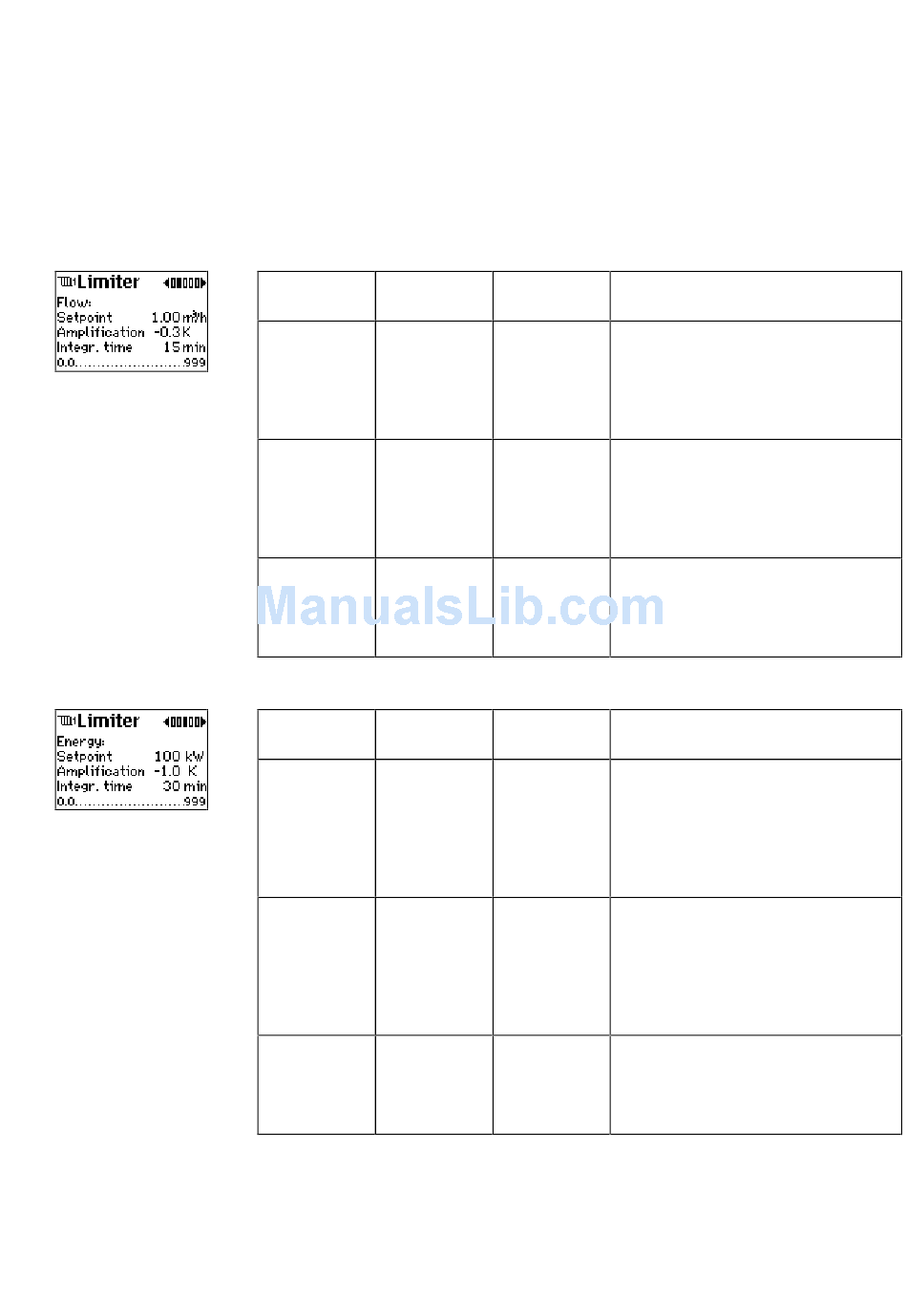

Display text Parameter
Setpoint
Amplification
Integration
Integr. time
time
This limiter function is available when energy consumption is being measured.
Display text Parameter
Setpoint
Amplification
Integr. time Integration
time
EY.65.H4.02
Default value, Description
range
Default value: Flow setpoint. Measured flow above this
3
1.00 m /h value causes a change in the calculated
flow temperature
Range:
0.0-999 l/h or The range and unit depend on the se-
3
0.0-999 m /h lected application and flow sensor
Default value: Amplification factor for modification of
–0.3 K calculated flow temperature
Range: A negative amplification causes a reduc-
–25.0 - 25.0 K tion of the calculated flow temperature, a
positive amplification causes an increase
Default value: Integration time for flow influence
15 min.
Range:
0-200 min.
Default value, Description
range
Default value: When the energy consumption exceeds
100 kW the setpoint, the calculated flow tem-
perature in the heat circuit is modified
Range:
0.0-999 kW or The range and unit depend on the se-
0.0-999 MW lected application and energy measuring
device
Default value: Amplification factor for modification of
–1.0 K calculated flow temperature caused by
energy consumption
Range:
–25.0 - 25.0 K A negative amplification causes a reduc-
tion of the calculated flow temperature, a
positive amplification causes an increase
Default value: Integration time for energy consumption
30 min. influence
Range:
0-200 min.
