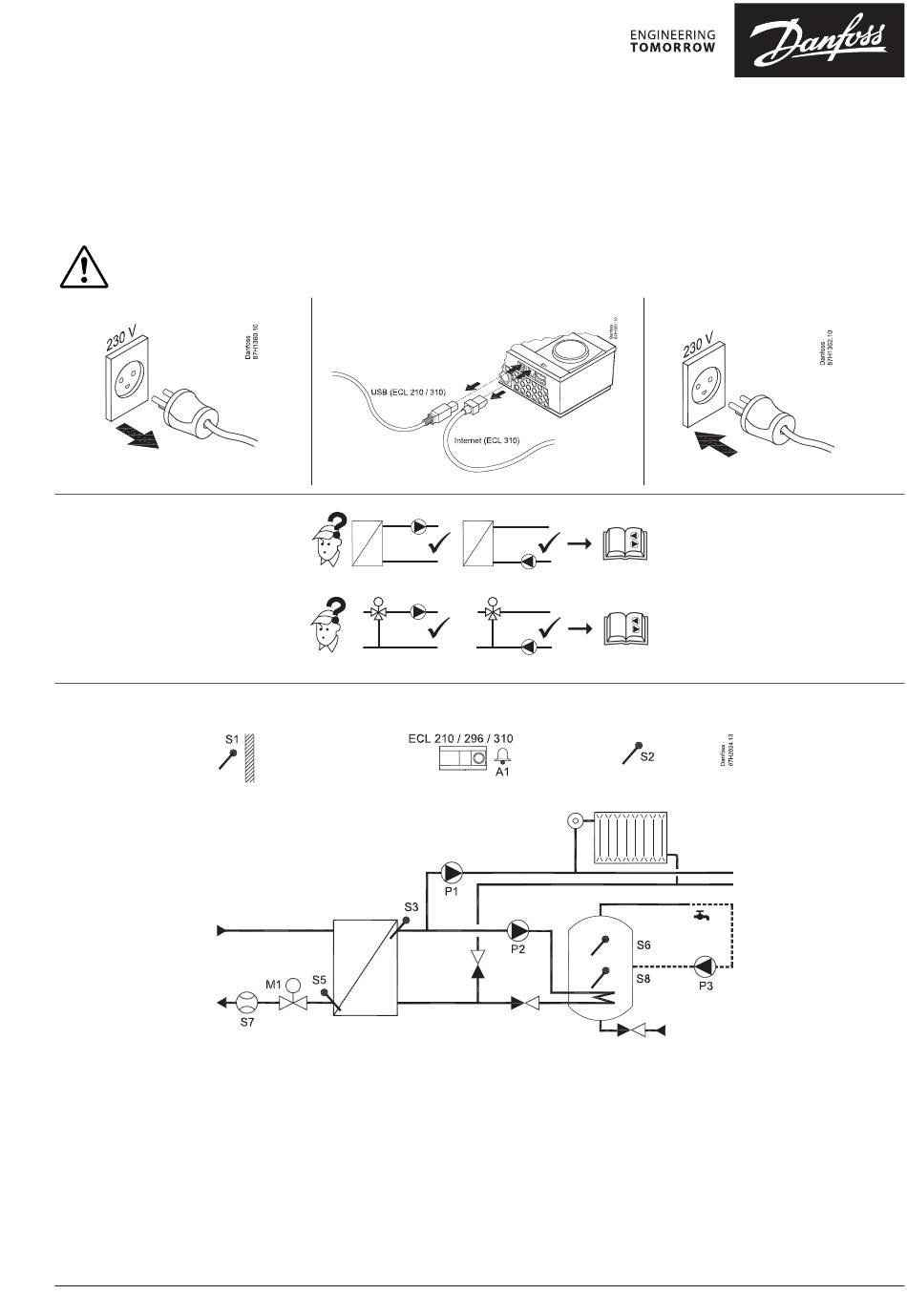

- Page 1 Installation Guide ECL Comfort 210 / 296 / 310, A237 / A337 (code no. 087H3806, 087H3821) A237.1, ex. a / A337.1, ex. a: ECL 210 / 310 = ECL 210 / 296 / 310 VI.LG.T3.00 | 1 © Danfoss | 2018.08...
- Page 2 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 A237.1, ex. b / A337.1, ex. b: ECL 210 / 310 = ECL 210 / 296 / 310 A237.1, ex. c / A337.1, ex. c: ECL 210 / 310 = ECL 210 / 296 / 310 A237.1, ex.
- Page 3 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 A237.2, ex. a / A337.2, ex. a: ECL 210 / 310 = ECL 210 / 296 / 310 A237.2, ex. b / A337.2, ex. b: ECL 210 / 310 = ECL 210 / 296 / 310...
- Page 4 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 ECL Comfort 210 / 296 / 310: 230 V a.c. 4 (2) A / 230 V a.c. 0,2 A / 230 V a.c. 230 V a.c., A237.1 230 V a.c., A237.2 4 | ©...
- Page 5 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 230 V a.c., A237.1, A237.2 ECL 296 230 V a.c., A337.1 ECL 310 / 230 V a.c. 230 V a.c., A337.2 ECL 310 / 230 V a.c. VI.LG.T3.00...
- Page 6 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 230 V a.c. Danfoss Thermo-actuator ABV ECL Comfort 210 / 296 / 310: 24 V a.c. 4 (2) A / 24 V a.c. 1 A / 24 V a.c.
- Page 7 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 24 V a.c., A237.2 24 V a.c., A337.1 ECL 310 / 24 V a.c. 24 V a.c., A337.2 ECL 310 / 24 V a.c. VI.LG.T3.00 © Danfoss | 2018.08 | 7...
- Page 8 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 24 V a.c. Danfoss Thermo-actuator ABV ECL 310 / 24 V a.c. 230 V a.c. / 24 V a.c. , safety thermostat 1-step closing ECL 210 / 310 230 V a.c.
- Page 9 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 230 V a.c. / 24 V a.c. , safety thermostat 1-step closing ECL 210 / 310 230 V a.c. / 24 V a.c. , safety thermostat 1-step closing ECL 210 / 310 230 V a.c.
- Page 10 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 Pt 1000 (1000 Ω / 0 °C) ECL Comfort 210 / 296 / 310 ECL Comfort 210 / 296 / 310 230 V a.c. 230 V a.c. Pt 1000 (1000 Ω / 0 °C) ECL 210 / 296 / 310 A237.1...
- Page 11 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 Pt 1000 (1000 Ω / 0 °C) ECL 310 A337.1 √ √ √ √ √ √ 0 - 10 V A337.2 √ √ √ √ √ √ √...
- Page 12 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 A237.1, A237.2 A / B ? ECL 310 ECL 210 / 296 4,7 K Ω 0,5 W (l / m³) (kWh / MWh) ECL 310 ECL 210 / 296 (l / m³)
- Page 13 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 A337.1, A337.2: ECL 310 ECA 30 / 31 ECA 30 / 31 ECA 30 / 31 ECL 210 / 296 / 310 ESM-10 S.Gnd ECA 30 / 31 ESM-10 VI.LG.T3.00...
- Page 14 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 Master / slave Modbus ECL 210 / 296 / 310 M-bus ECL 296 / 310 M-bus ECL 296 / 310 METER METER S.Gnd 14 | © Danfoss | 2018.08...
- Page 15 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 Pt 1000 (IEC 751B, 1000 Ω / 0 °C) Ω °C Ω 1600 1500 1400 1000 1300 1039 1078 1117 1200 1155 1194 1100 1232 1271 1309 1000...
- Page 16 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 ECA 30 16 | © Danfoss | 2018.08 VI.LG.T3.00...
- Page 17 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 VI.LG.T3.00 © Danfoss | 2018.08 | 17...
- Page 18 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 18 | © Danfoss | 2018.08 VI.LG.T3.00...
- Page 19 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 VI.LG.T3.00 © Danfoss | 2018.08 | 19...
- Page 20 Installation Guide, ECL Comfort 210 / 296 / 310, A237 / A337 *087H9037* ECL Comfort 210 / 296 / 310, A237 / A337: www.heating.danfoss.com *VILGT300* VI.LG.T3.00 20 | © Danfoss | DHS-SMT/DK | 2018.08...
