Selecting a Circuit. Viewing Circuit Status

12
This section tells you how to select an individual circuit in the plant and display status
data for this circuit.
To return to the System Overview:
2. Press again.
Whenever you wish to change the setup or view data for one circuit separately, you
start by selecting the circuit. This function is active in most of the ECL 2000's pic-
tures. For example, while setting the operating mode for one circuit, you can switch
to the next circuit by pressing
EY.65.H4.02

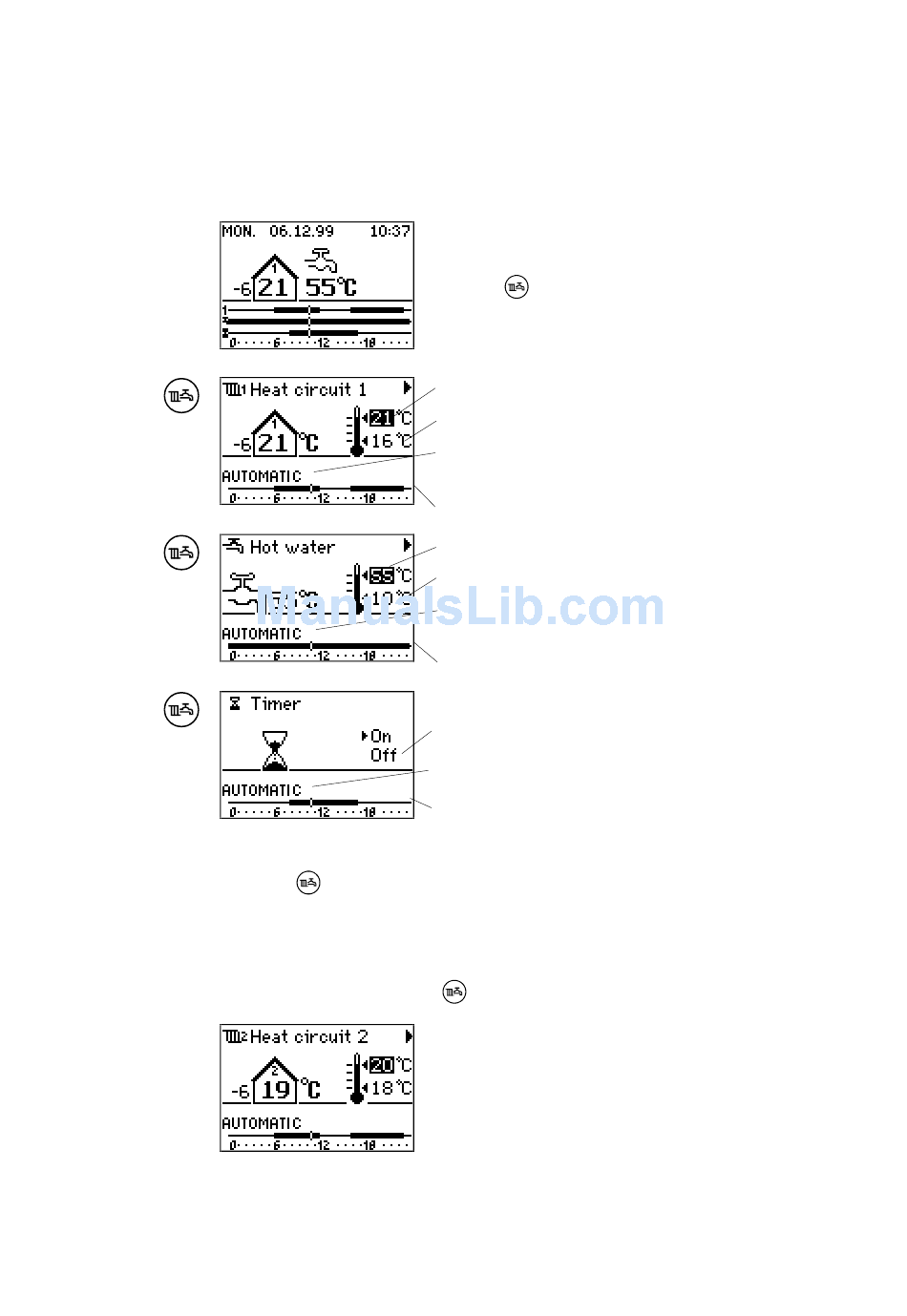

In the System Overview picture or in one of the System
Status pictures (see page 10-11):
1. Press to display the next circuit in the plant.
Comfort temperature setpoint
Night setback temperature setpoint
Operating mode of the circuit: Automatic, Comfort,
Night setback or Stand-by. See page 3
24-hour program
Comfort temperature setpoint
Night setback temperature setpoint
Operating mode of the circuit: Automatic, Comfort,
Night setback or Stand-by
24-hour program
Current status of timer
Operating mode of the timer
24-hour program
.
Several of the ECL 2000's built-in applications include
two heat circuits. When a second heat circuit is part of
the application, this circuit has a picture associated with
it that is very similar to the picture for Heat circuit 1.
