Type
Amplific., Offset
Scaling, Interval

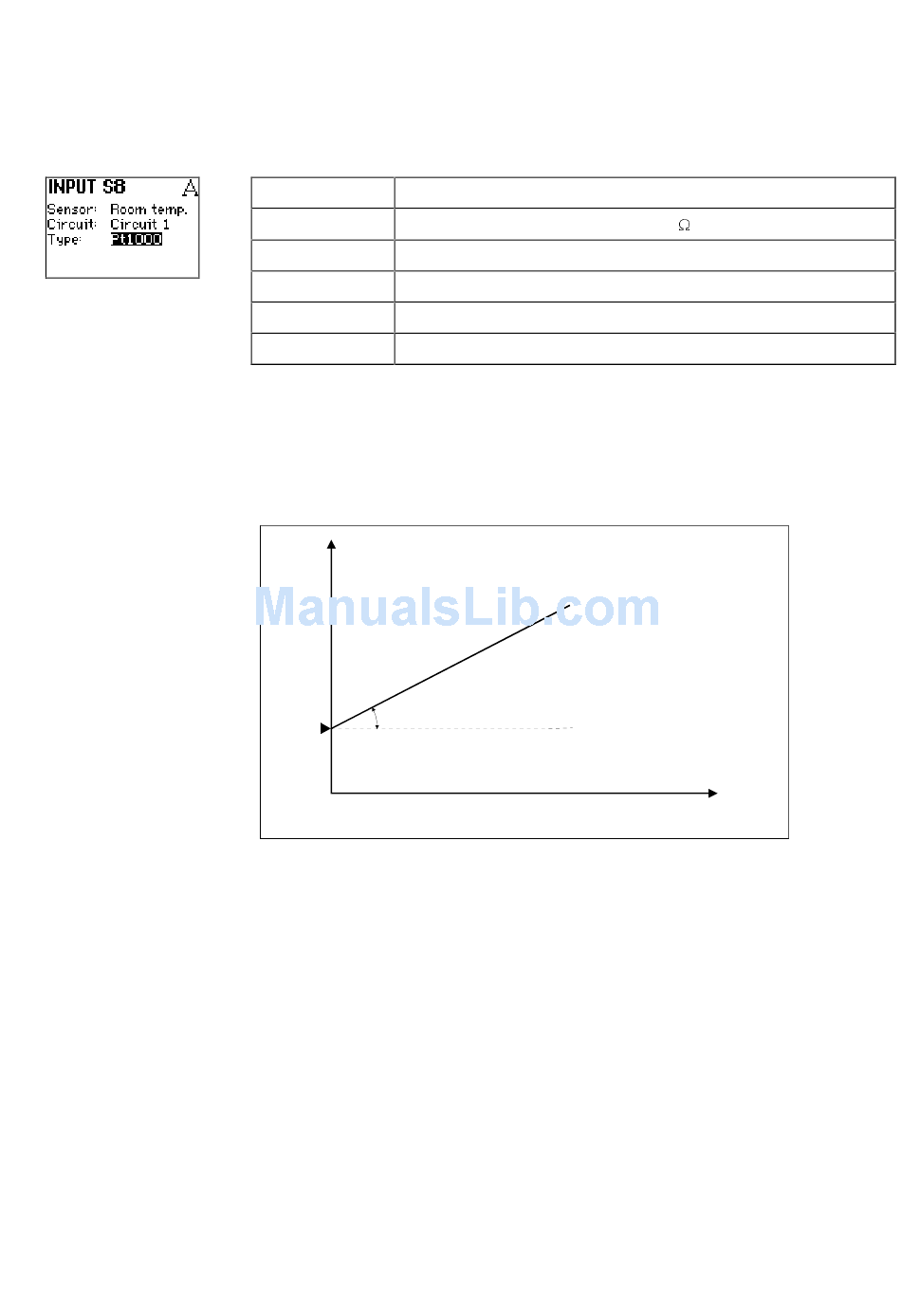

This setting indicates what type of sensor is connected. The following sensor types
are supported:
Value
Description
Pt 1000
Temperature dependent resistance: 1000
ESMF
Remote control device with a built-in Pt 1000 room temperature sensor
Pulse
Pulse count
0–10 V
The sensor delivers a voltage in the range 0-10 V
Digital
Digital input
Amplification, Offset.
For a 0–10 V sensor, the ECL 2000 must convert the input voltage received from the
sensor into the correct value, using the correct unit of measurement. The parameters
Amplific. (amplification) and Offset are used to perform this calculation. Their func-
tion is illustrated in Figure 2.
Value [m/s, l/h, ...]
Offset
Figure 2. Amplification and Offset
These parameters are used to convert the number of pulses received from a pulse in-
put into the correct value and unit of measurement. See the ECL 2000 Installation
Guide (ref. [2]) for details on these parameters.
EY.65.H4.02
at 0 °C
Value = Amplification * Input + Offset
Input signal [V]
Configuring the ECL 2000
31
