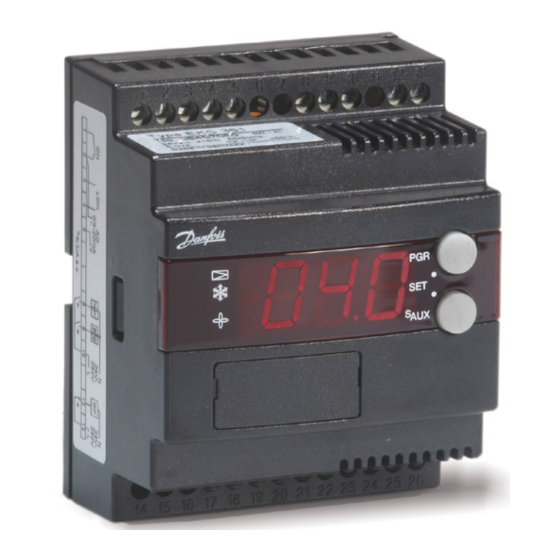

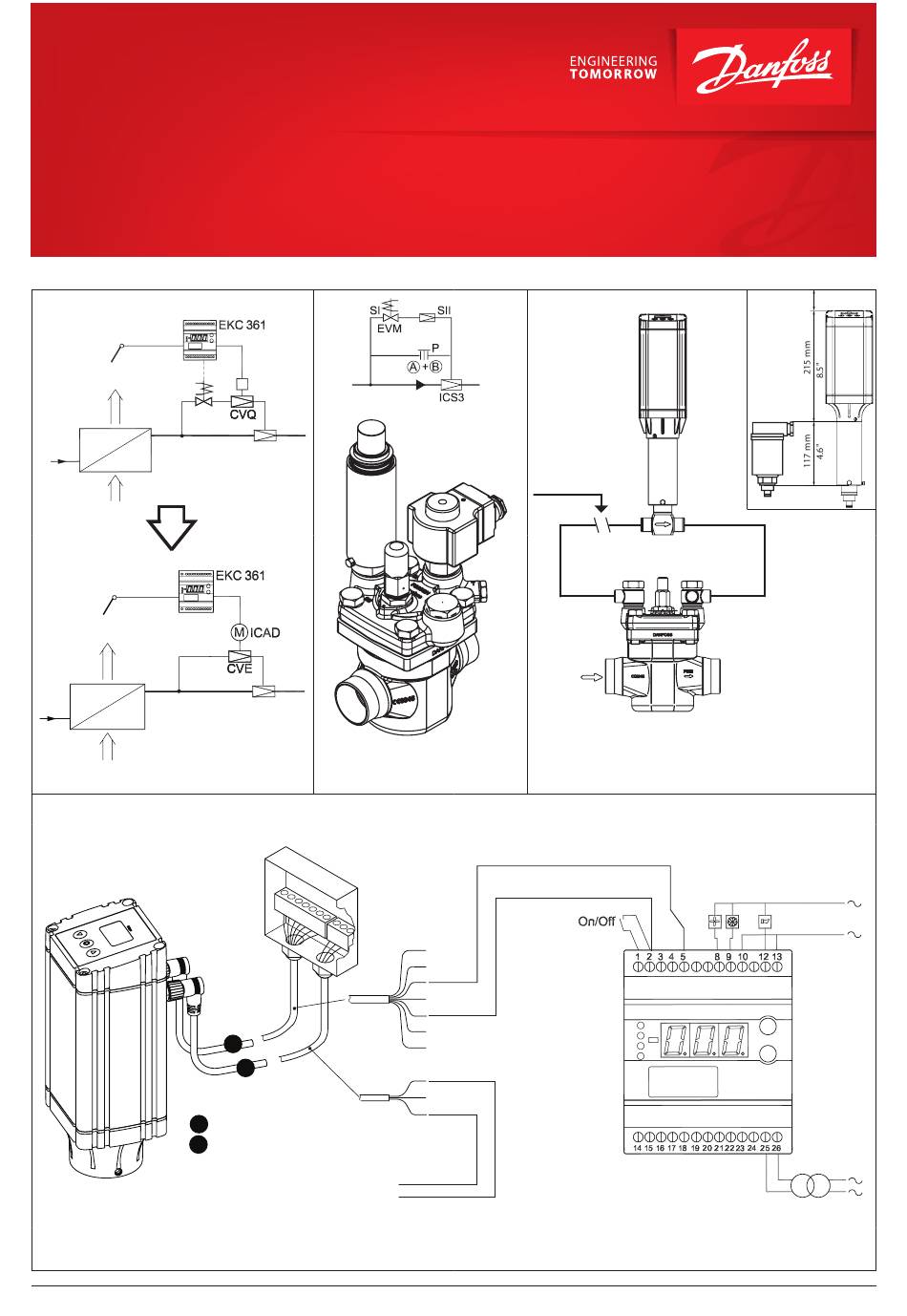

Media temperature controller EKC 361
CVE replacement for CVQ
ICAD
Terminal box -
not supplied
by Danfoss
1
2
If existing temperature control set-up includes EKC 366 interface controller your PLC needs adaptation to send the proper analog signal
directly to ICAD motor. Otherwise it can be replaced with EKC 361 controller and temperature sensor for stand-alone control
© Danfoss | DCS (ms) | 2019.07
ICS or PM
ICS or PM
ICS or PM
ICS or PM
Direct mounted CVE (if solenoid
or other additional pilot needed
use Sl and Sll)
1
2
Control cable
Supply cable
24 V DC
CVE
Optional CVH
for add. pilot
Inlet
Indirect mounted CVE (for remote location). CVH
and CVE installation kit (1/4"G adapters for Sl and Sll -
027B0995) to be ordered separately
4 – 20 mA
Yellow
Orange
Brown
White
Note: Two separate Power
+
_
supplies required
ICAD
CVQ
CVE
CVH
SI
SII
EKC 361
BC309632045439en-000101 | 1
